Description
Brand: CentIoT
Features:

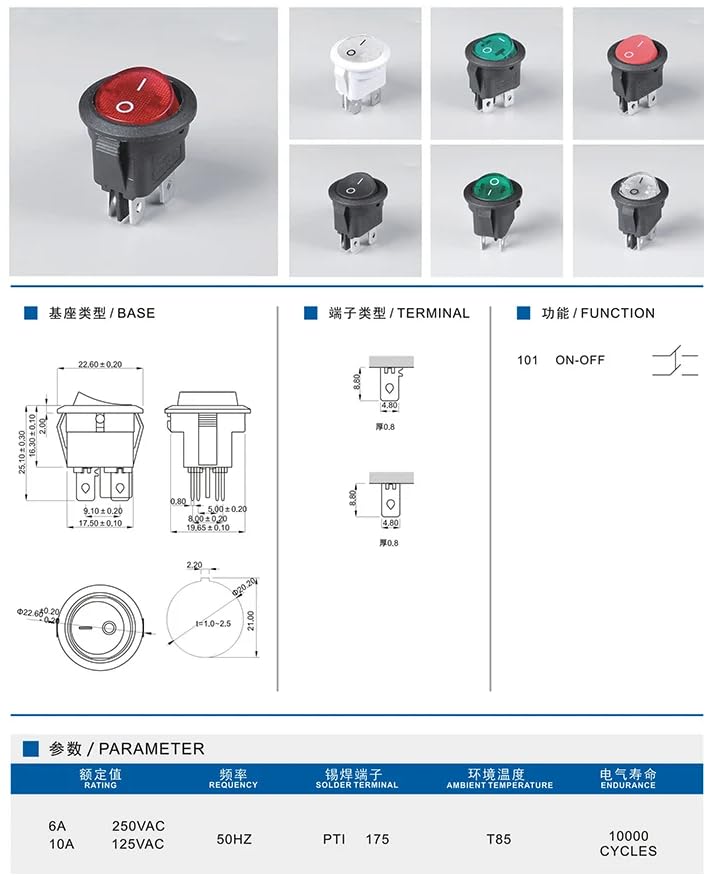

- Switch rating: 6A 250VAC;10A 125VAC;16A 12VDC

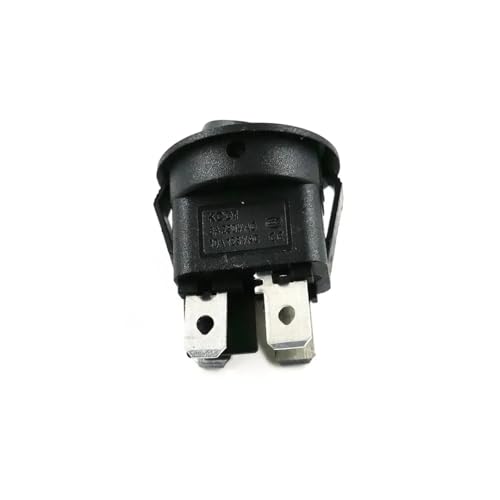

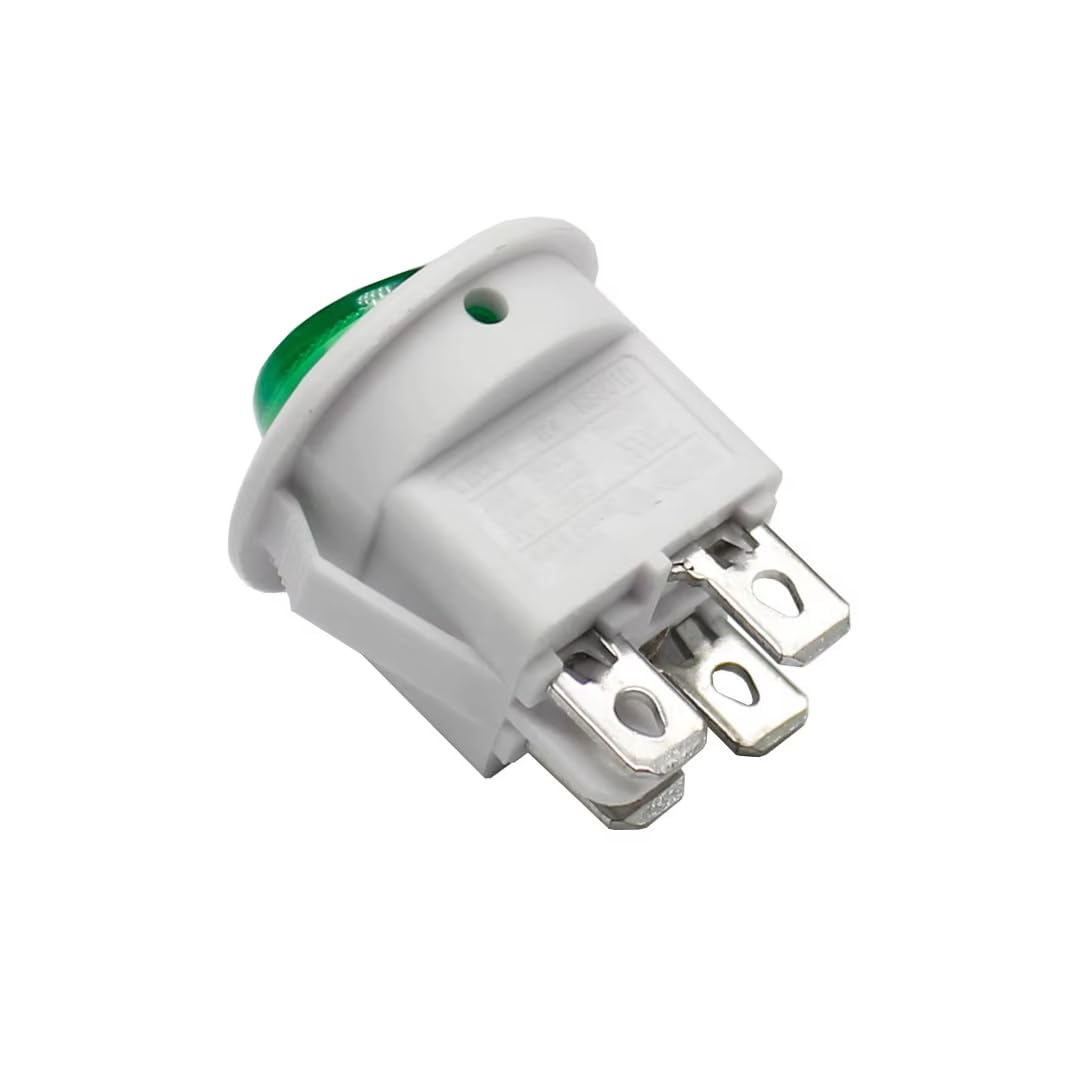

- Terminal type: 4.8mm Blade Pin terminal
- Point resistance: Max50MΩ; Isolation resistance: ≥1000MΩ; Isolation intensity: 1500VAC，50Hz/60Hz:
- Mechanical life: More than 500000 times; Electrical life: More than 100000 times
- Panel thickness: 1~15mm: Operating pressure: Abou4N; Operation travel: About2mm
PartNumber: KCD1

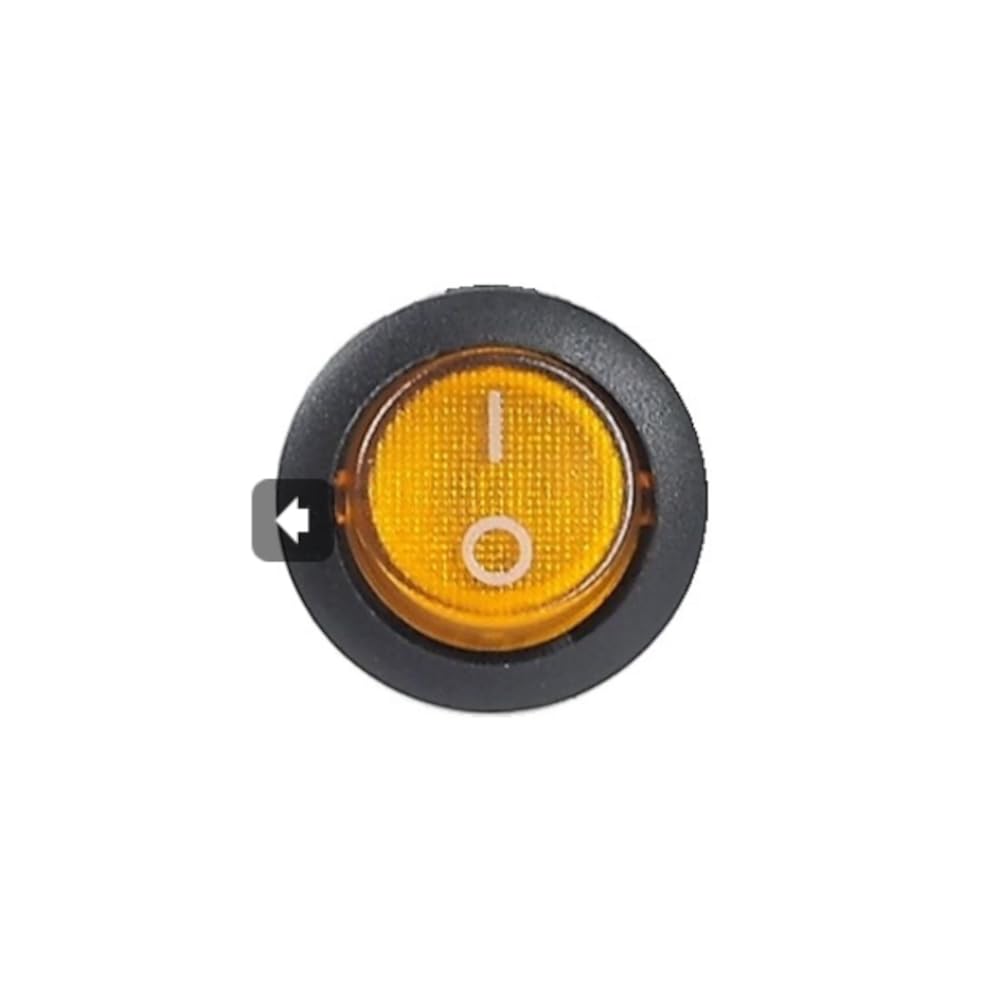

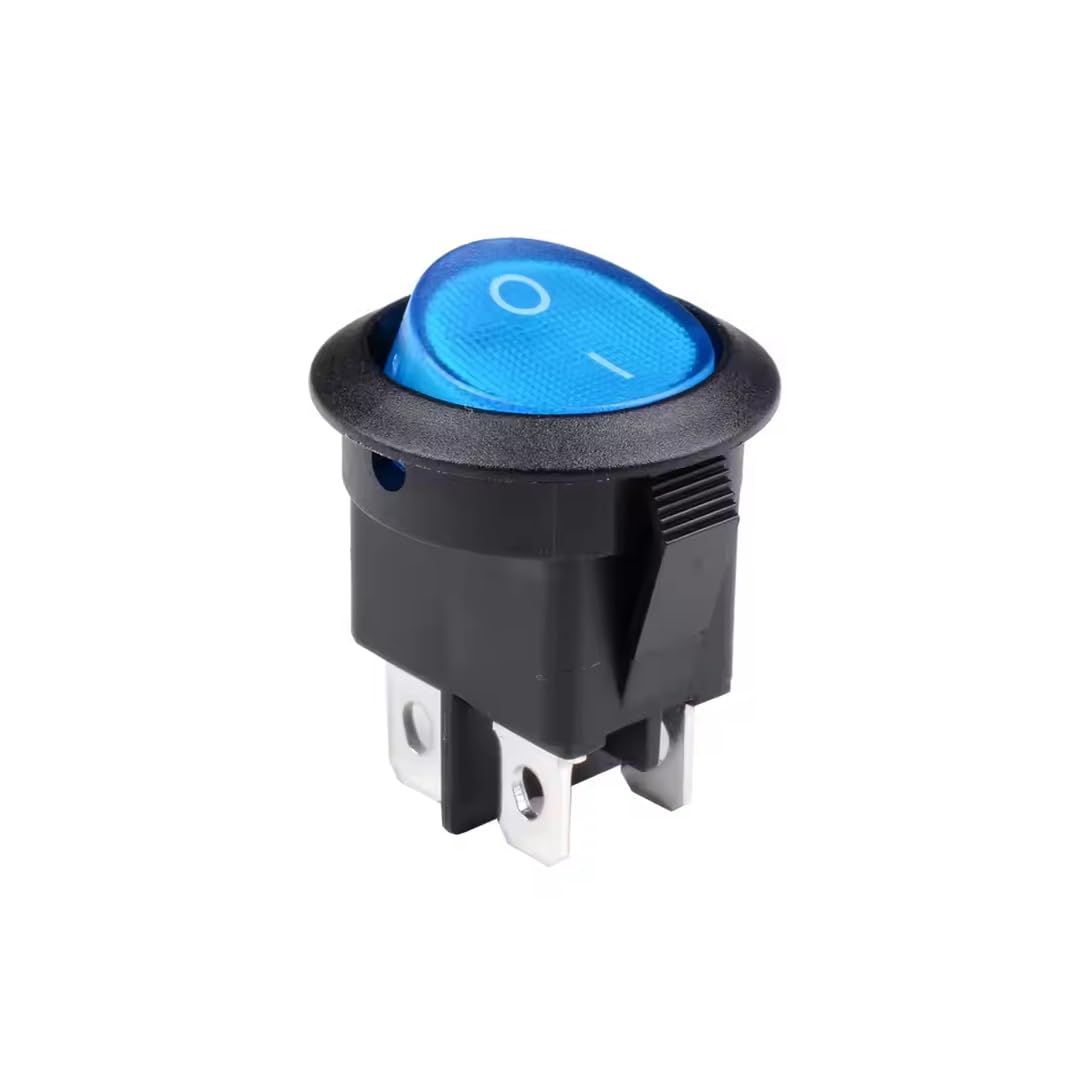

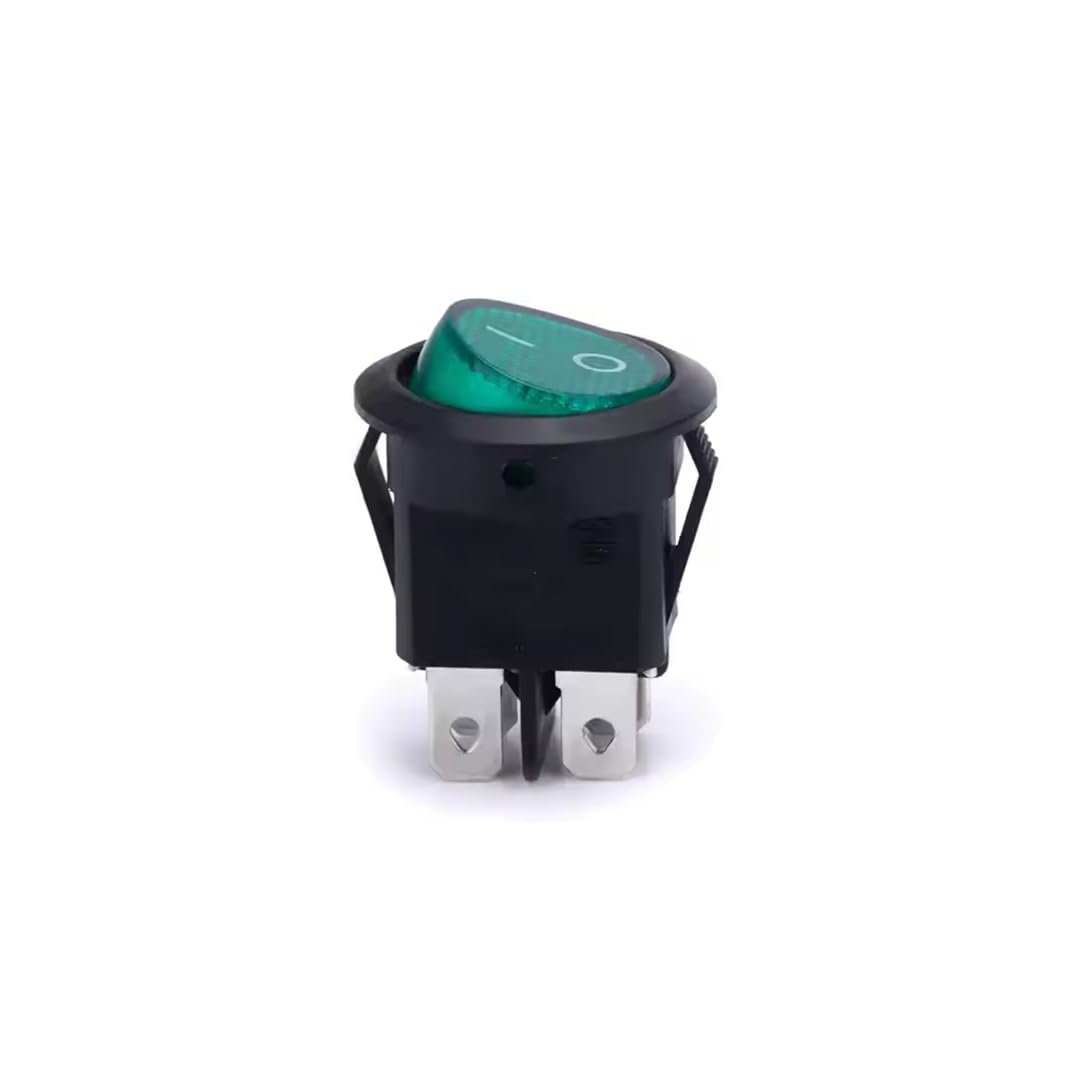

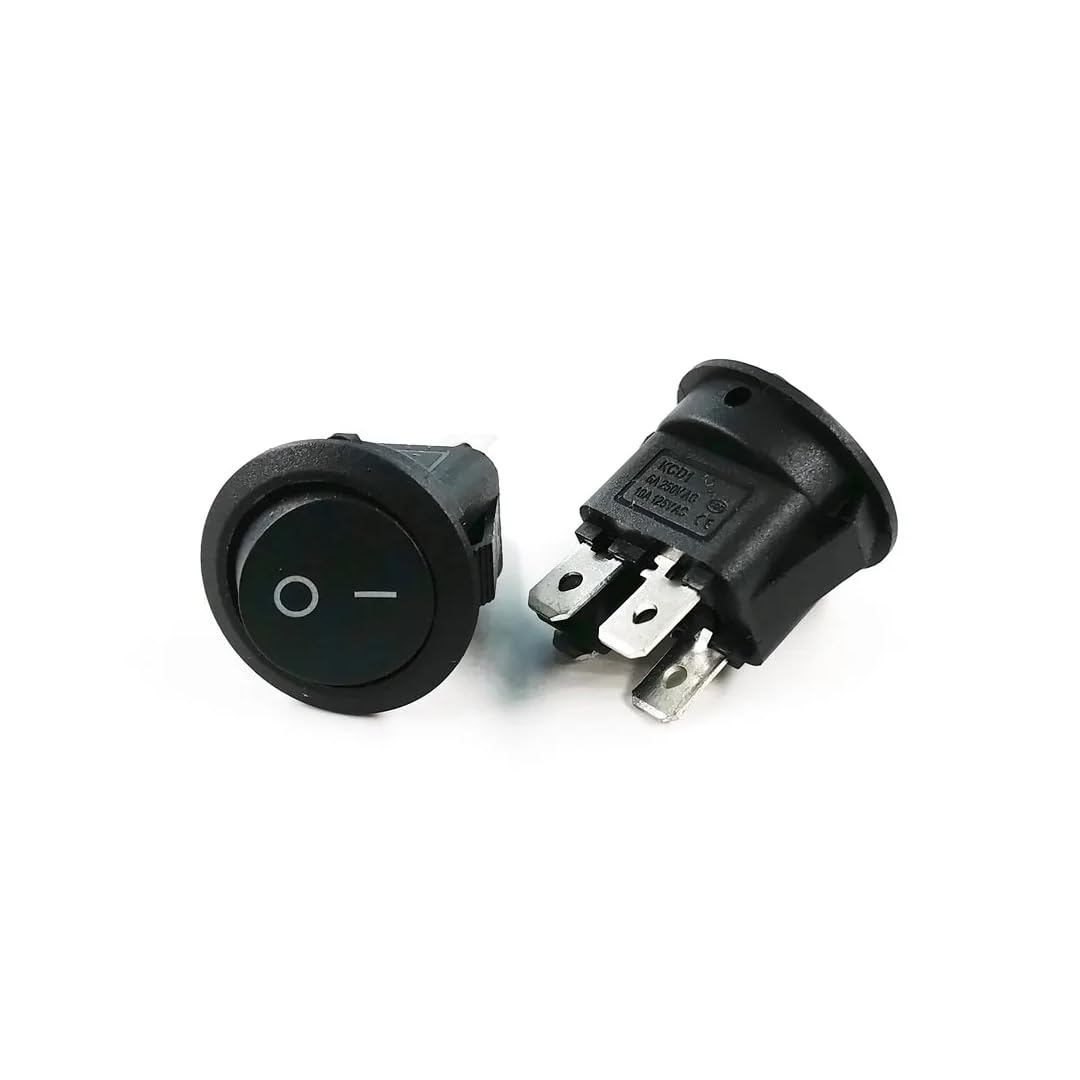

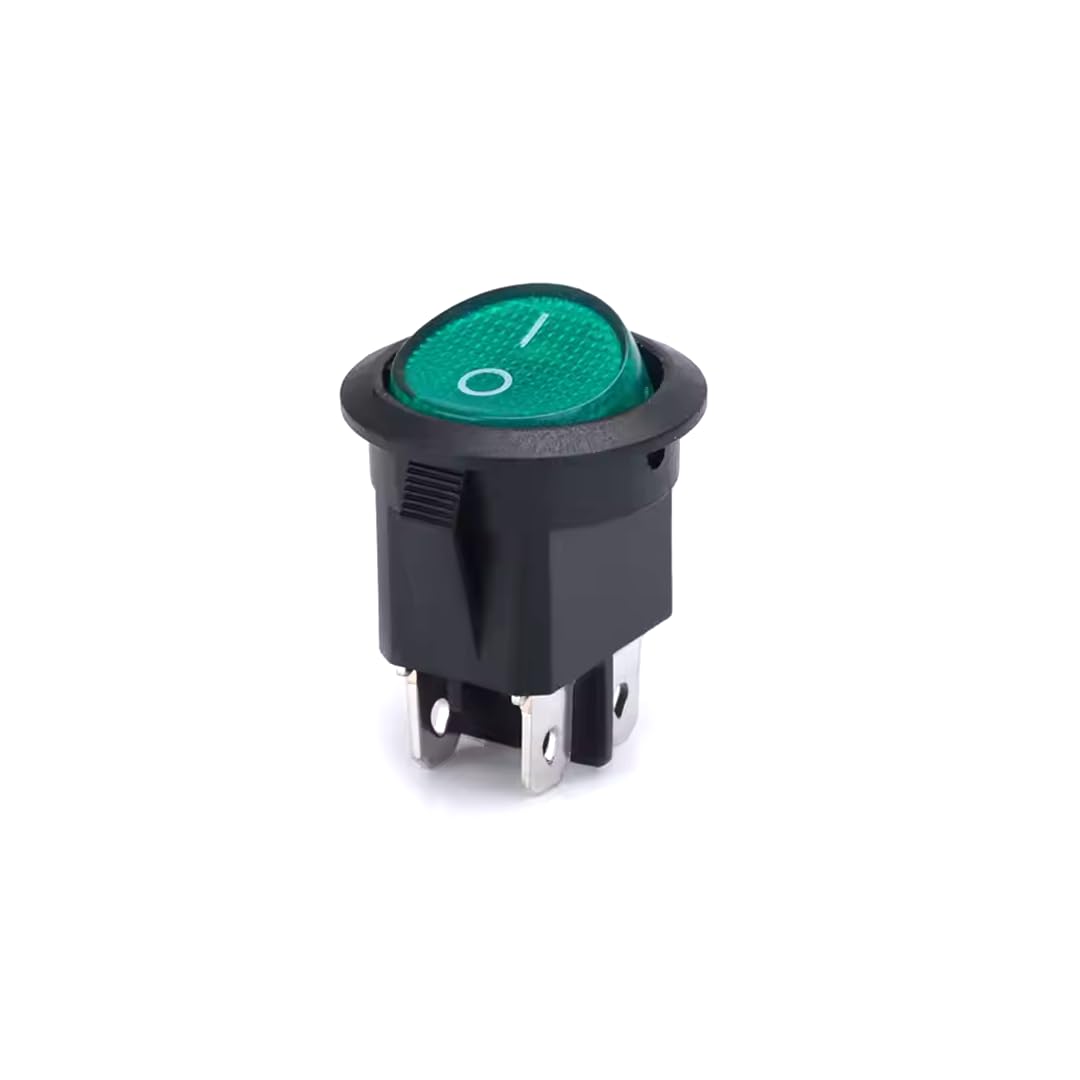

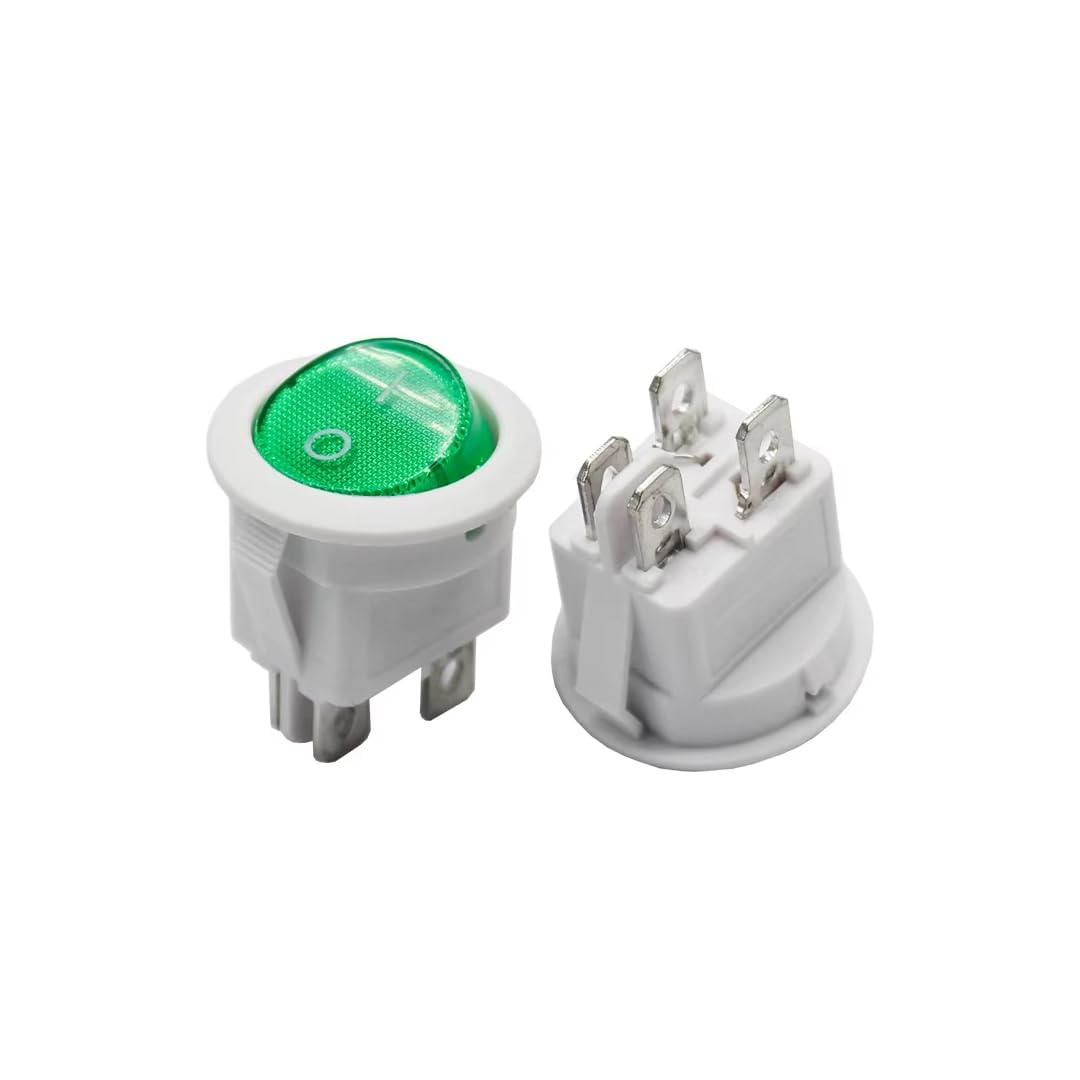

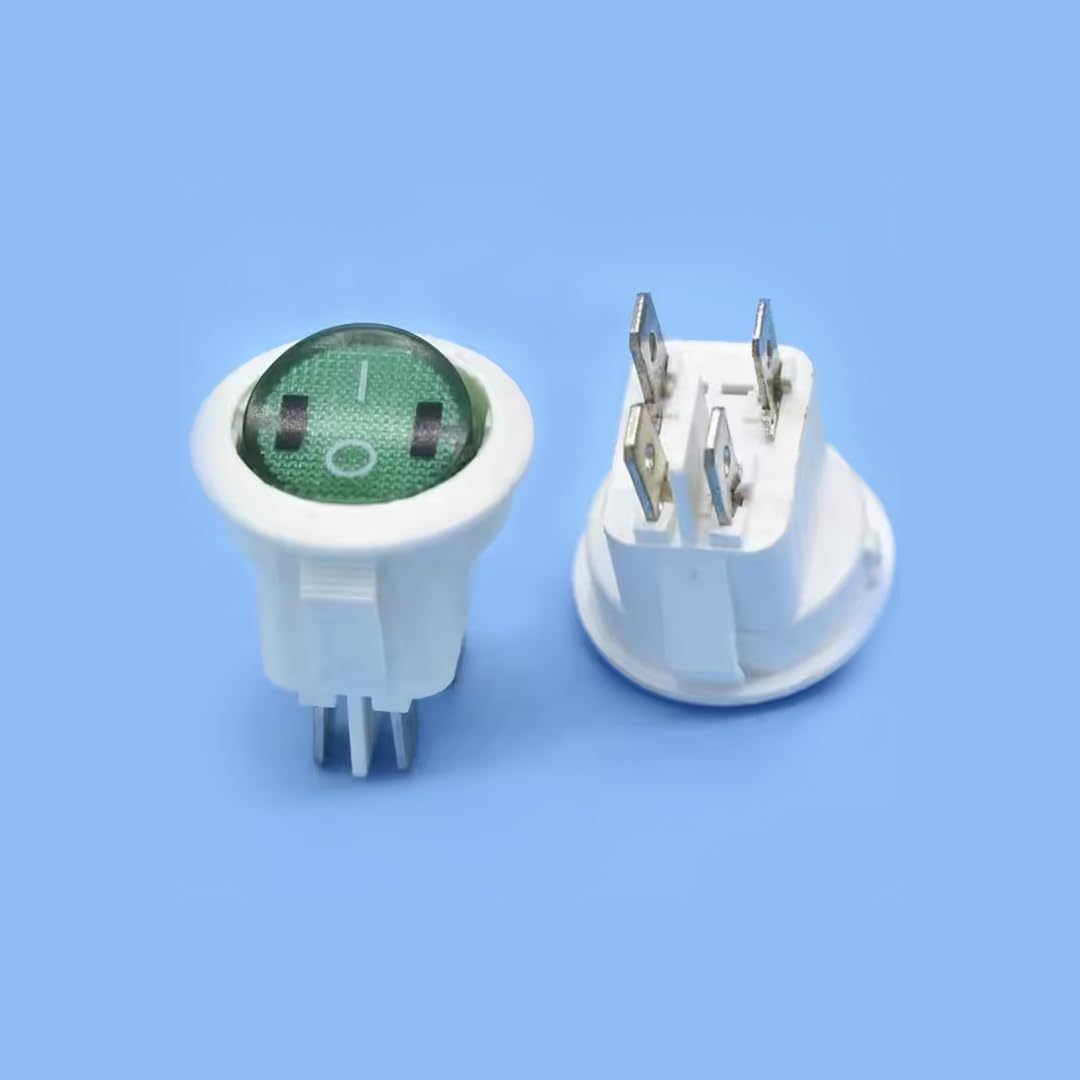

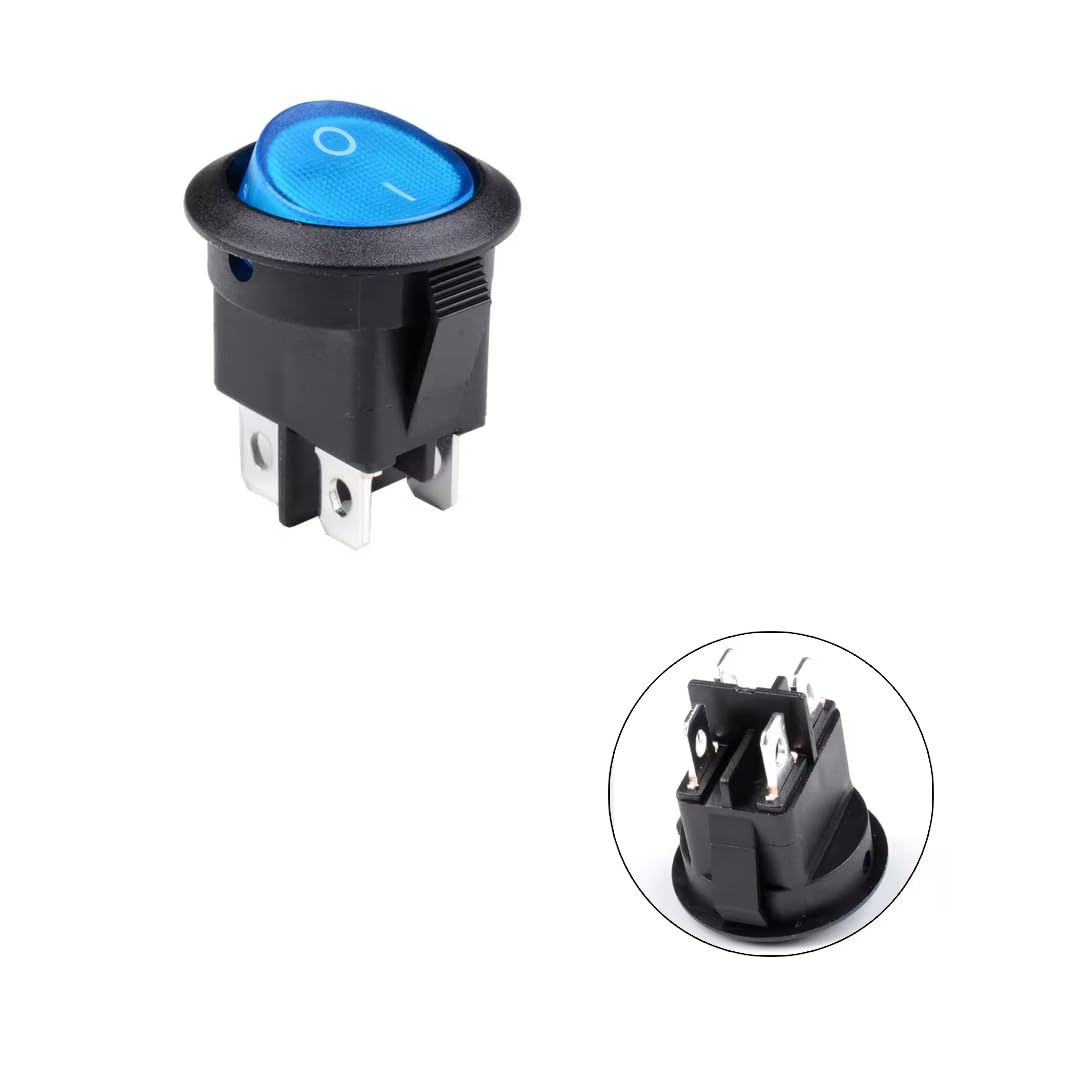

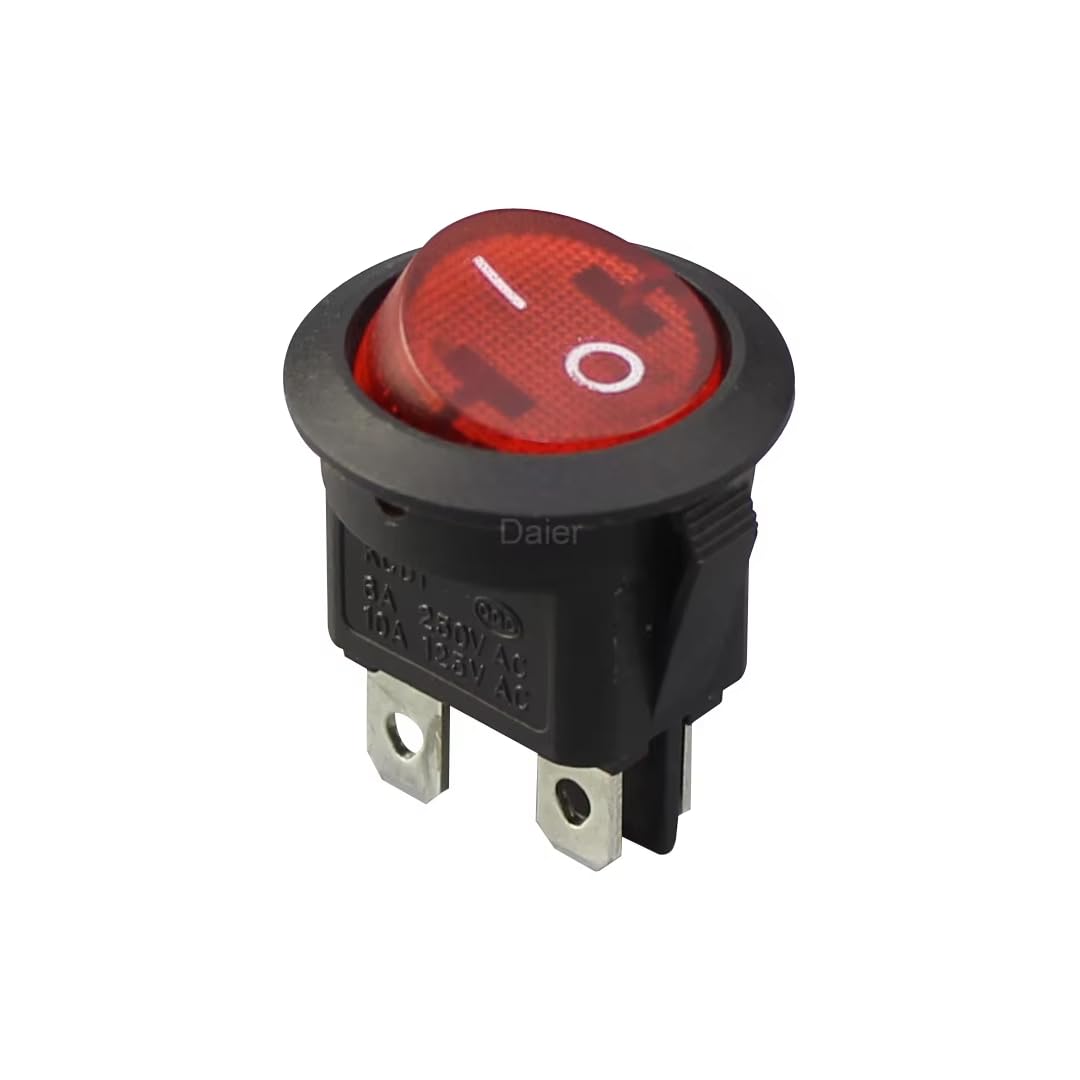

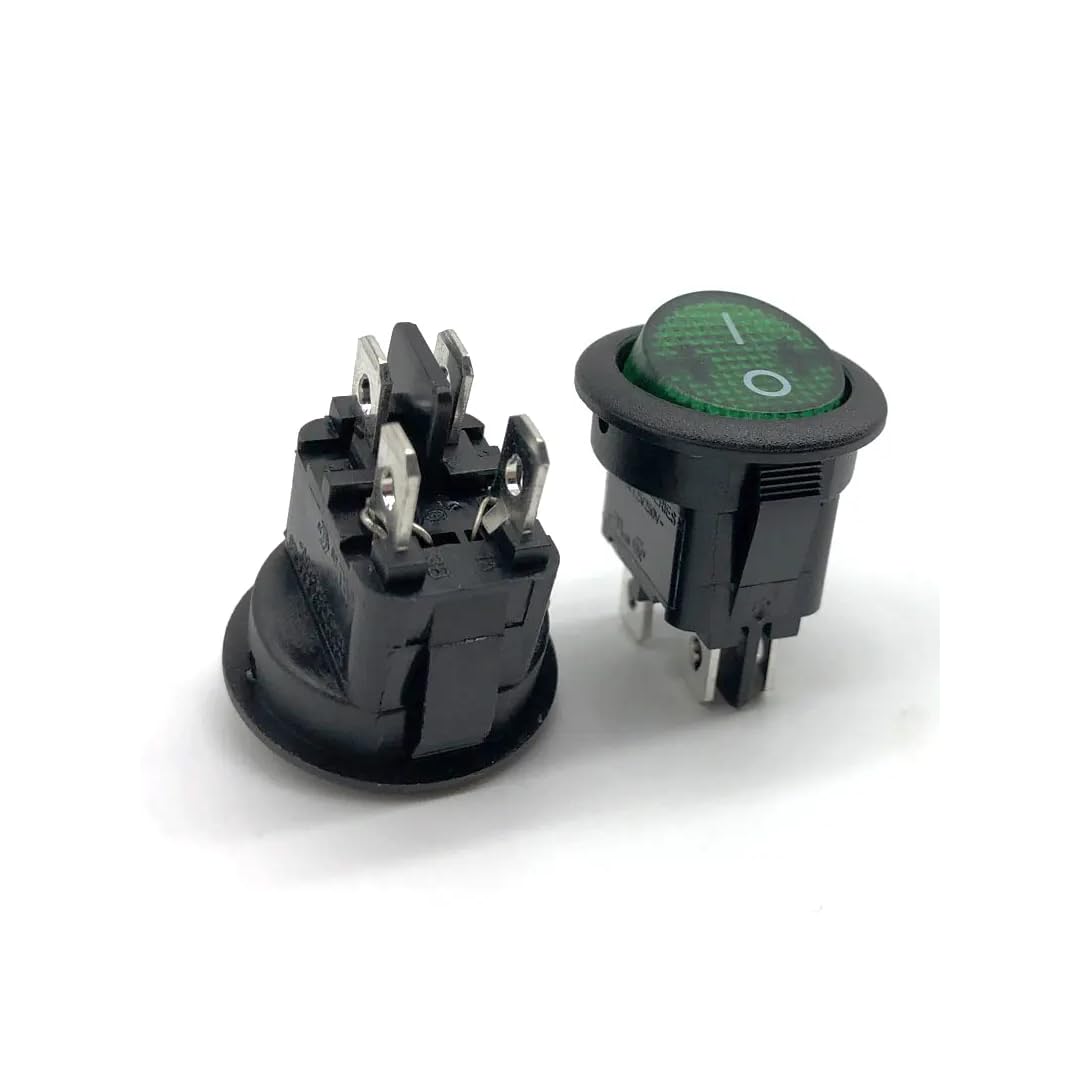

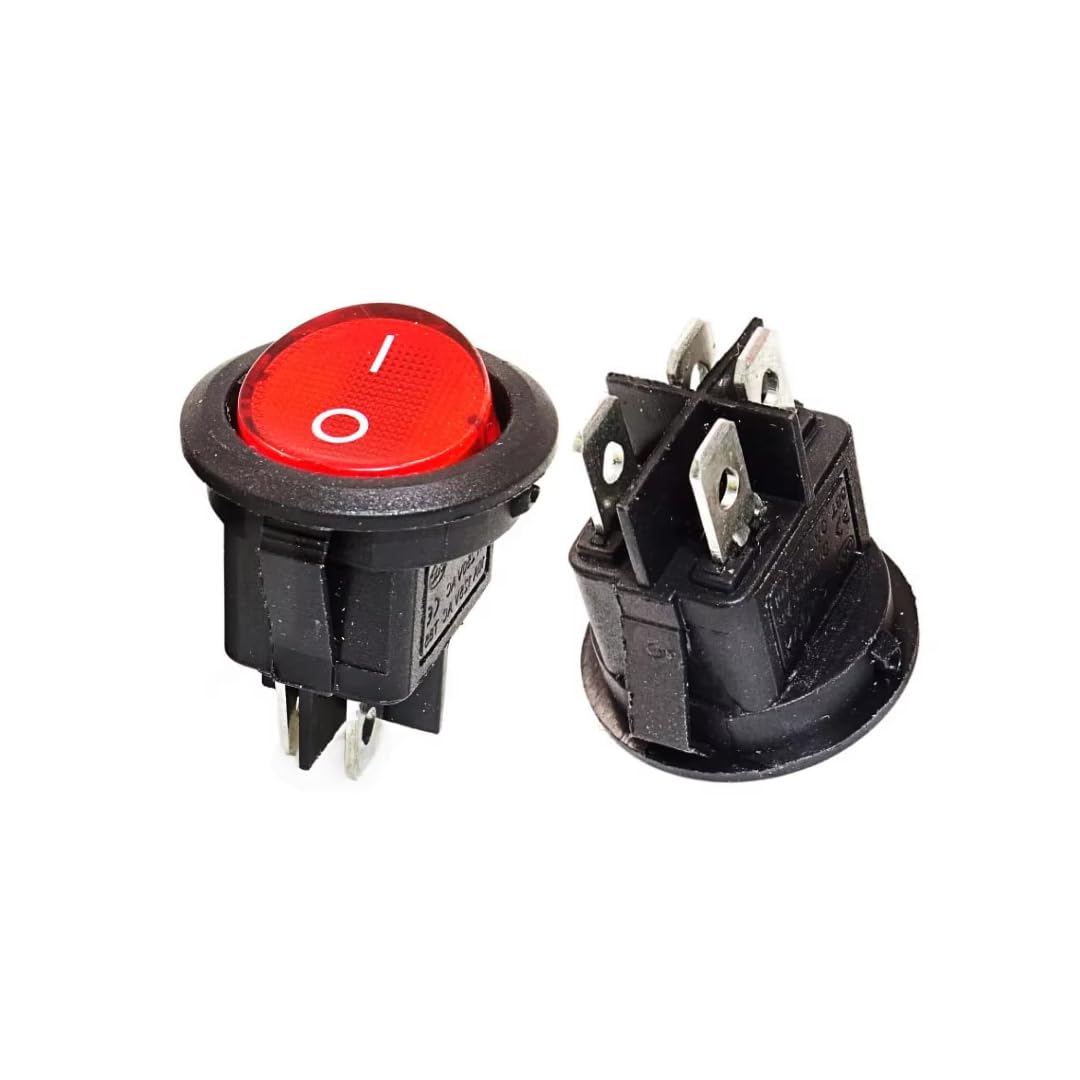

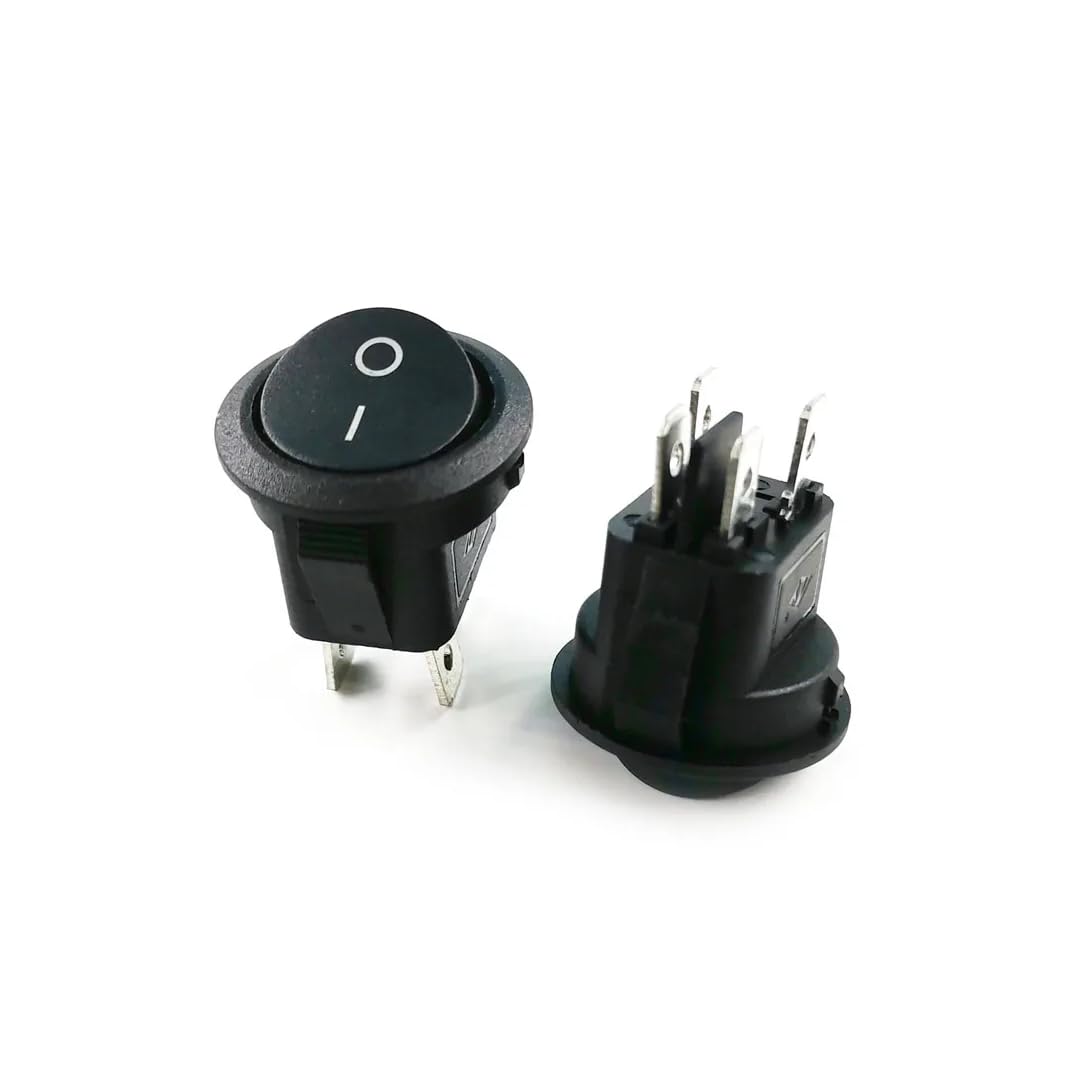

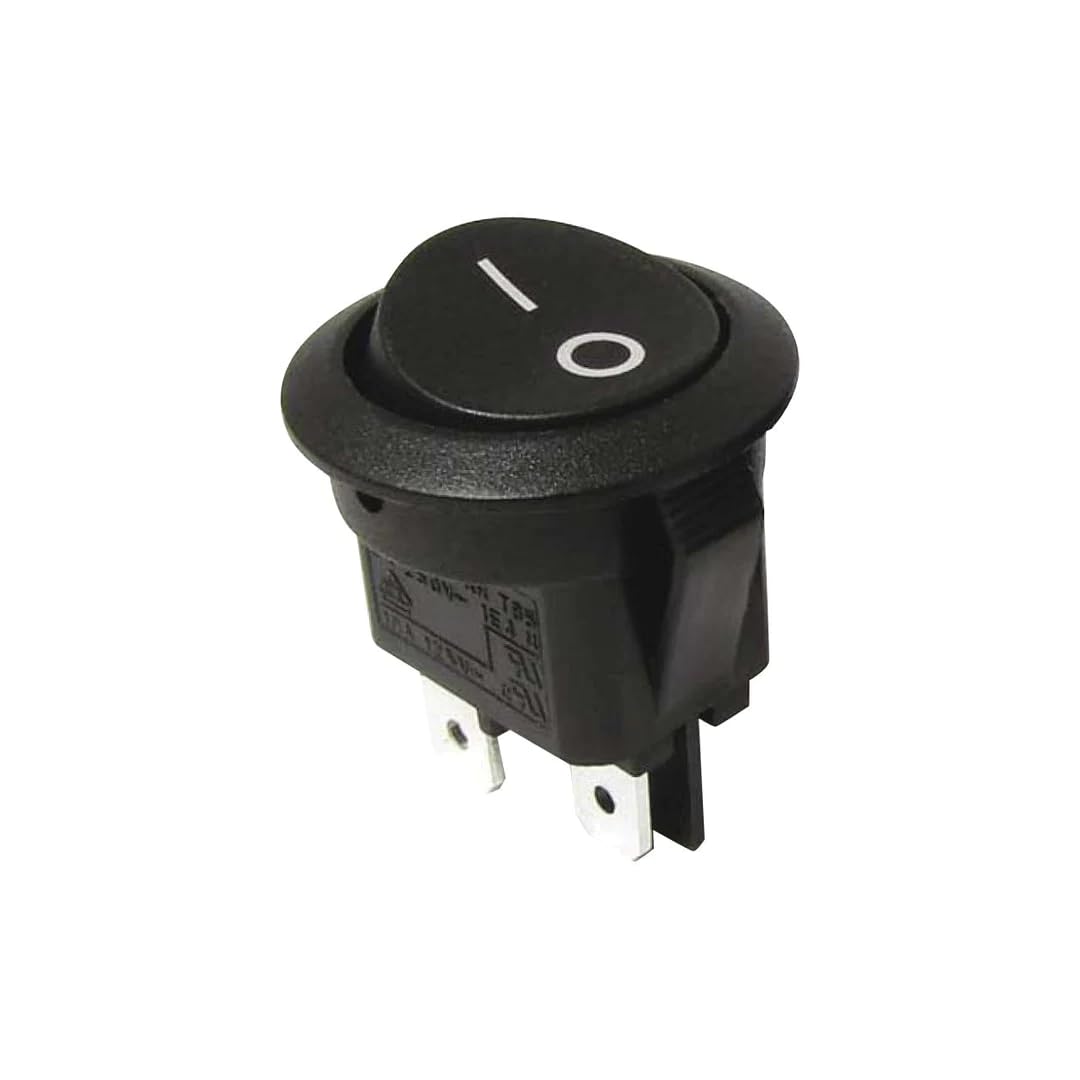

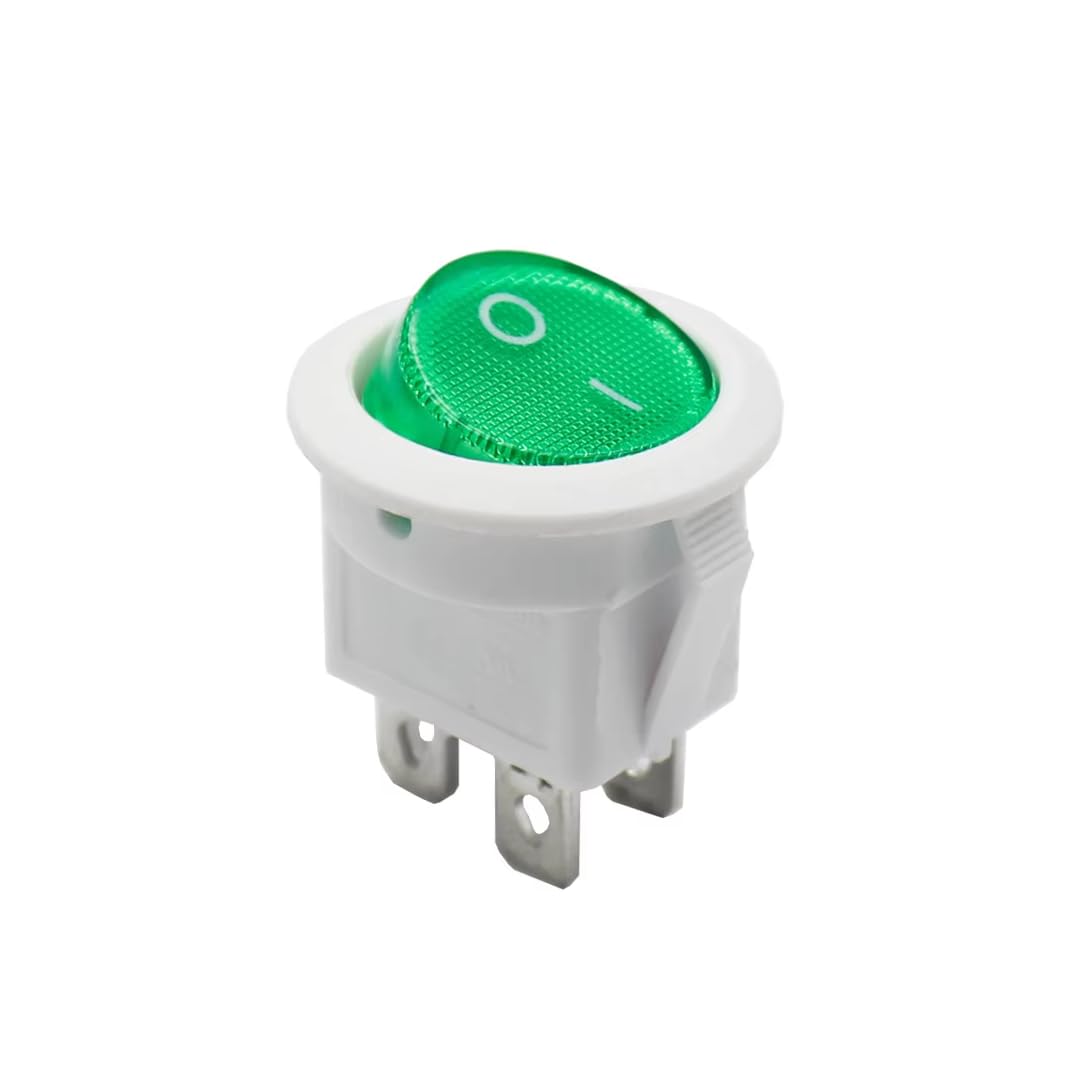

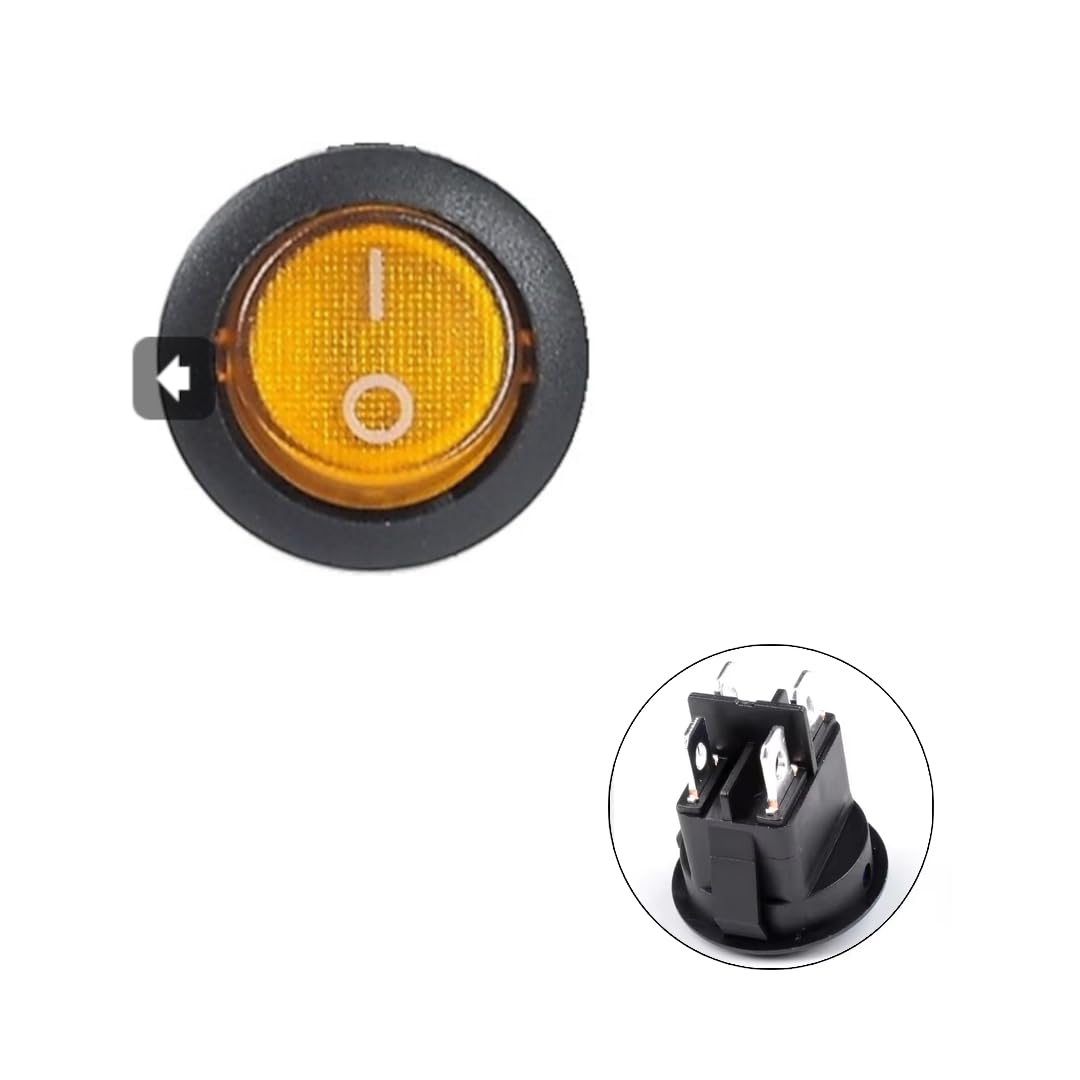

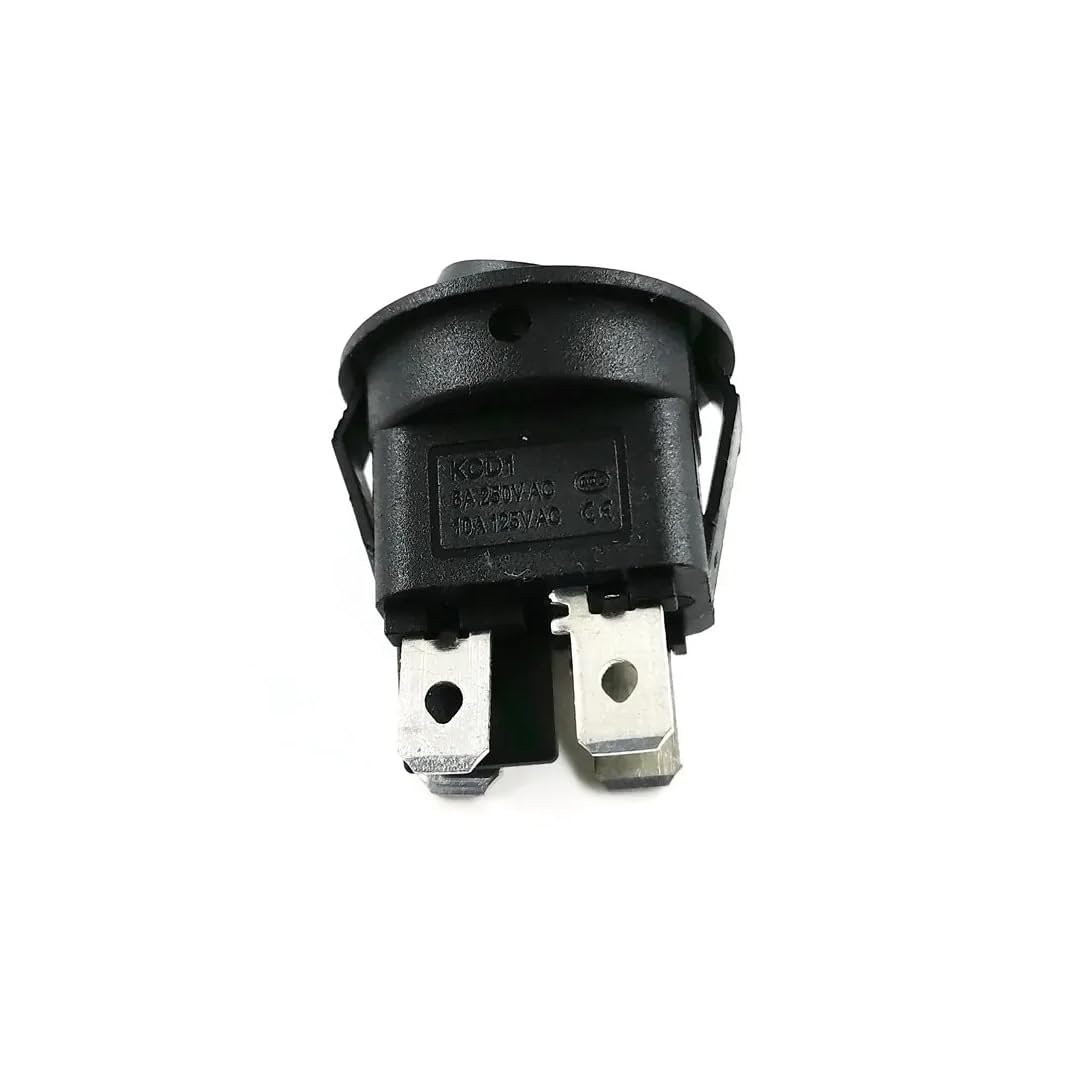

Details: Panel mound round Rocker Switch - with indicator lamp : Material Used: Base plastic:Nylon 66; Button: plastic; PC Copper parts such as terminal Copper; Terminal surface treatment: Nickel plating; Contact: Ag or Composite silver; Spring: Steel Wire; Waterproof Material: PVC
Model: KCD1
