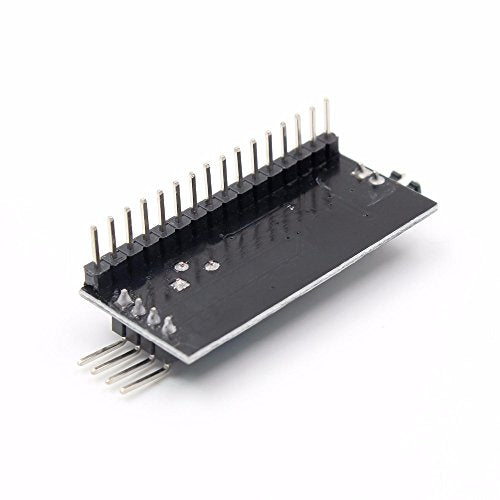

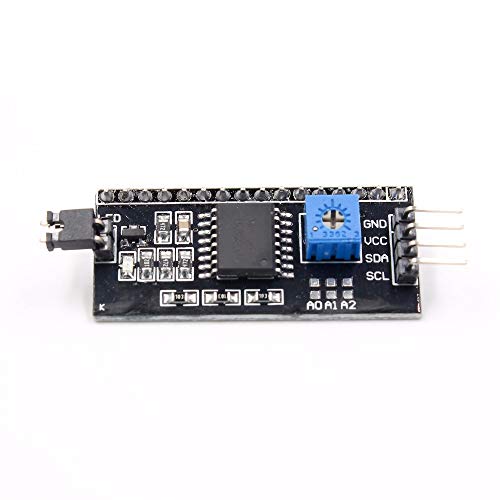

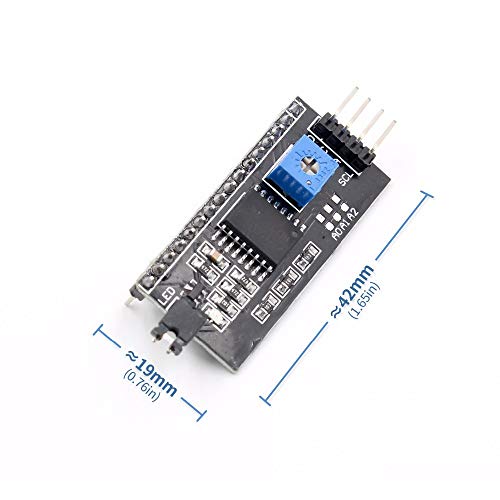

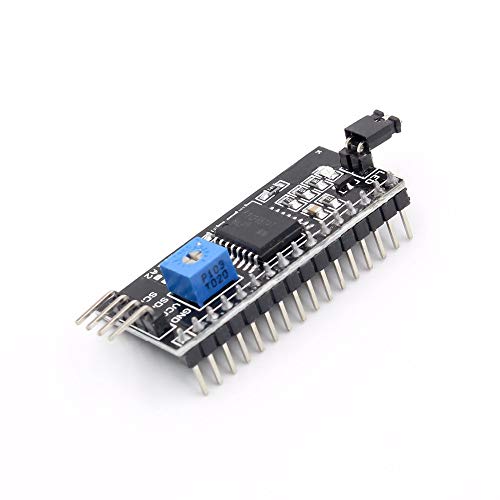

CentIoT - IIC I2C Adapter Serial Interface Board Module - for 5v 1602 2004 LCD

Brand: CentIoT

Features:

• Serial I2C control of LCD display using PCF8574
• Backlight can be enabled or disabled via a jumper on the board; Supply Voltage: 5V
• Contrast control via a potentiometer
• I2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself);
• Has 8 modules on a single I2C bus (change address via solder jumpers)address

PartNumber: AR072

Release Date: 06-07-2019

Details: This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. The backlight and contr ...

EAN: 4604046156378

Model: PCF8574-I2C-SERIAL

Binding: Electronics

Item Condition: New
