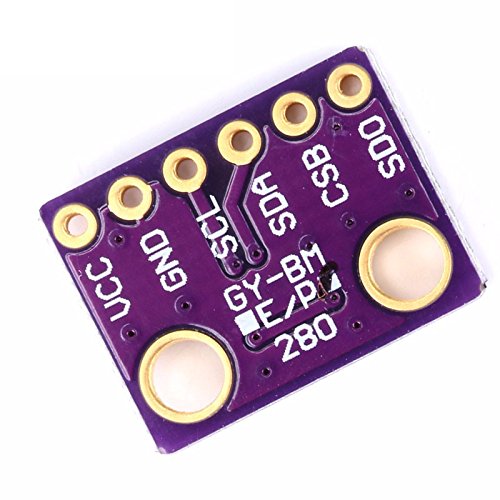

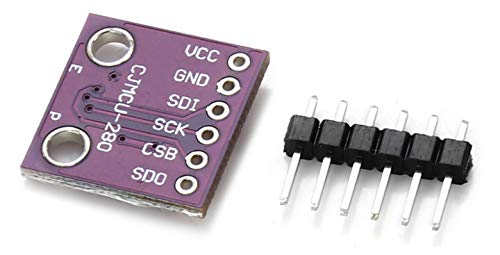

CentIoT - I2C SPI BMP280 3.3 Digital Barometric Pressure Altitude Sensor High Precision Atmospheric Module

Brand: CentIoT

Features:

•
  PCB size:(LxW)1.52x 1.20cm/0.60"x0.47"

•

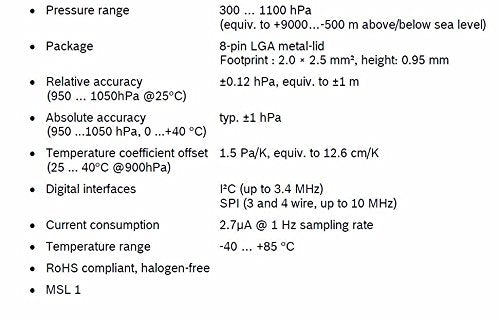

  This precision sensor is the best precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy

•

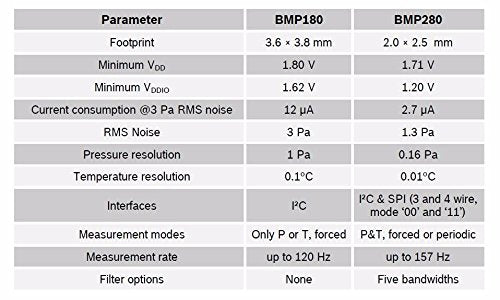

  This is an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI

•
  Supply Voltage: 3.3V


PartNumber: SE007-BMP280

Release Date: 02-06-2019

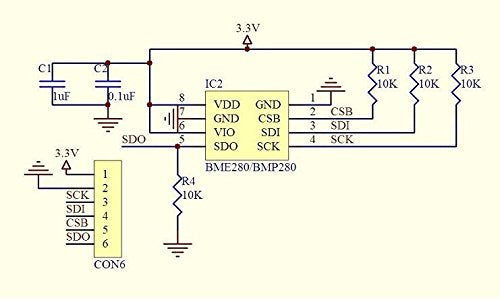

Details: This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. Typical application: Enhancement of GPS navigation e.g.time-to-first-fix improvement,dead-reckoning,slope detection Indoor navigation(floor detection,elevator detection) Outdoor navigation,leisure and sports applications Weather forecast Health care application(e.g. sirometry) Vertical velocity indication(e.g. risk/sink speed) Target devices Handsets such as mobile phones ,table PCs,GPS devices Navigation systems Portable health caredevices Home weather stations Flying toys Watches

EAN: 4604046155982

Model: SE007-BMP280

Binding: Electronics

Item Condition: New
