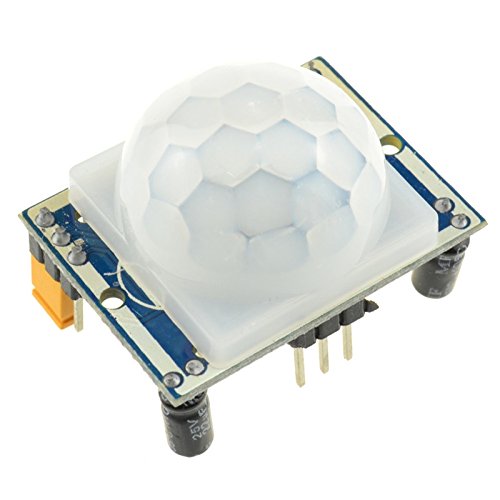

CentIoT - HC-SR501 SR501 - Pyroelectric Infrared PIR Motion Proximity Sensor Module

Brand: CentIoT

Color: Blue

Features:

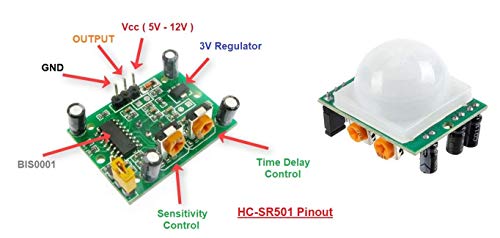

• Product Type: HC-SR501 PIR Motion/Proximity/Body/Human Sensor Module
• Operating voltage range: DC 4.5-20V, Level output: High 3.3 V /Low 0V, Quiescent Current: <50uA

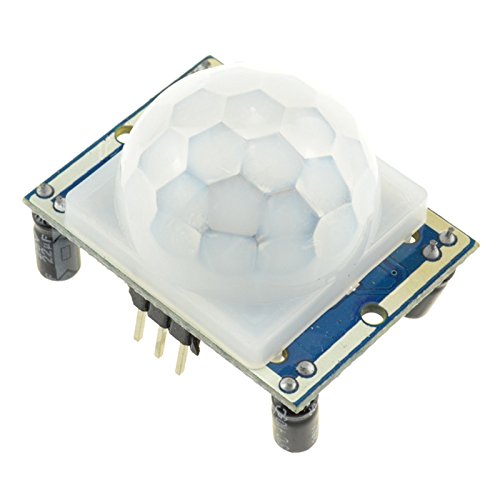

• Lens size sensor: Diameter:23mm(Default)
• Angle Sensor: <100 ° cone angle
• Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger), Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds

PartNumber: ACK-SENSOR-PIR-MOTION-HC-SR501

Release Date: 07-06-2019

Details: RCWL-0516 is a doppler radar microwave motion sensor module which can act as an alternative to a PIR motion sensor PinFunction 3V 33.3V regulated output. Max 100mA (?) GND Ground OUT Trigger: high (3.3V) if motion detected. 0V normally. VIN4 - 28V supply voltage CDSLDR 10-20k RL, U_LDR > 0.7V = On Note The PCB color may vary based on production batch.

UPC: 618020770874

EAN: 0618020770874

Model: HC-SR501

Binding: Electronics

Item Condition: New
