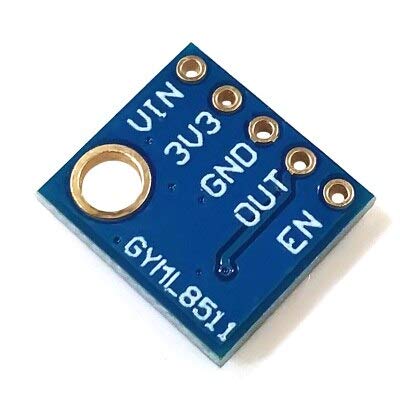

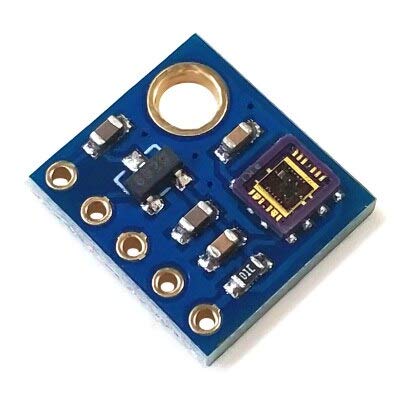

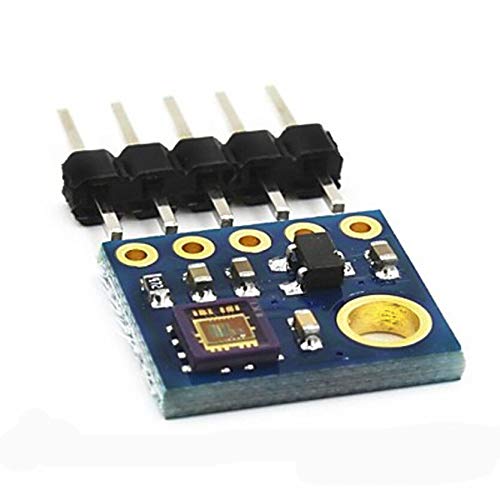

CentIoT - GY-ML8511 UV Sensor Module Ultraviolet Light Sensor Breakout Analog Output - 280-390nm

Brand: CentIoT

Features:

• UV Sensor IC: ML8511; Photodiode sensitive to UV-A and UV-B in range 280-390nm; Embedded operational amplifier; Analog voltage output
• Low supply current (300micro amp) and low standby current (0.1micro amp)
• Supply Voltage VDD -0.3 to +4.6 V; Input Voltage VI -0.3 to +4.6 V; Output Short Current IOS 5 mA;
• Power Dissipation PD: 30 mW; Storage Temperature: -30 to +85;
• Operating Voltage VDD 2.7 to 3.6 V; Operating Temperature Ta -20 to 70;

PartNumber: GY-ML8511

Release Date: 15-07-2020

Details: The GY-ML8511 with breakout is an easy to use ultraviolet light sensor. The MP8511 UV (ultraviolet) Sensor works by outputing an analog signal in relation to the amount of UV light that's detected. This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions. This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. In the power down mode, typical standby current is 0.1microA, thus enabling a longer battery life. APPLICATIONS: Smart phone, Watch, Weather station,Bicycle navigation, Accessary, Gaming

UPC: 679043312540

EAN: 0679043312540

Model: SE206-GY-ML8511-UV

Binding: Electronics

Item Condition: New
