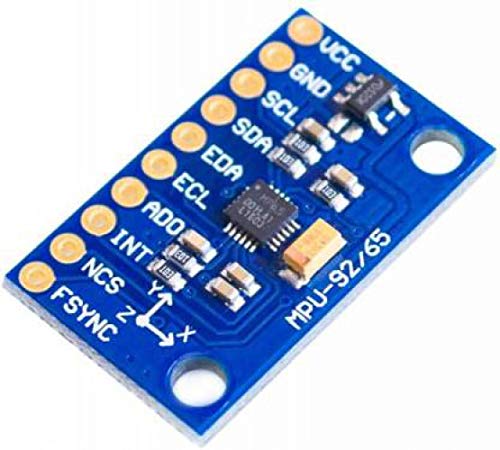

CentIoT - GY-9250 MPU6500 Alttitude Gyro Accelerator Magnetometer 9-Axis gyroscope Sensor Module

Brand: CentIoT

Color: Multicolor

Features:

• MPU-9250 module( 3 axis accelerator, 3 axis gyro and 3 axis magnetometer)
• Chip: MPU9250; Power voltage: 3~5V
• Communication mode: I2C / SPI; Gyro range: +/-250, +/-500, +/-1000, +/-2000dps
• Accelerator range: +/-2G, +/-4G, +/-8G, +/-16G
• Magnetometer range: +/-4800uF; Pin spacing: 2.54mm; Size: 15mm*25mm (approx)

PartNumber: GY

Release Date: 02-06-2019

Details: MPU-9250 is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis gyroscope and the 3-Axis accelerometer. The other die houses the AK8963 3-Axis magnetometer from Asahi Kasei Microdevices Corporation. Hence, the MPU-9250 is a 9-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion Processor (DMP) all in a small 3x3x1mm package available as a pin-compatible upgrade from the MPU6515. With its dedicated I2C sensor bus, the MPU-9250 directly provides complete 9-axis MotionFusion output. The MPU-9250 MotionTracking device, with its 9-axis integration, on-chip MotionFusion, and runtime calibration firmware, enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing optimal motion performance for consumers. MPU-9250 is also designed to interface with multiple non-inertial digital sensors, such as pressure sensors, on its auxiliary I2C port. Applications: Location based services, points of interest, and dead reckoning Handset and portable gaming Motion-based game controllers 3D remote controls for Internet connected DTVs and set top boxes, 3D mice Wearable sensors for health, fitness and sports

EAN: 4604046158549

Model: GY

Binding: Electronics

Item Condition: New
