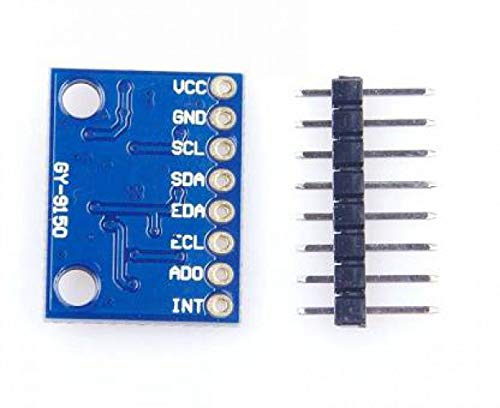

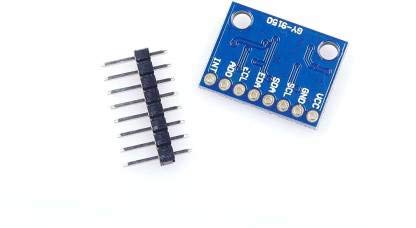

CentIoT - GY-9150 MPU 9150 Alttitude Gyro Accelerator Magnetometer 9DOF 9 axis gyroscope compass Sensor Module

Brand: CentIoT

Color: Multicolor

Features:

• Digital-output 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
• Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps; ; Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g Tri-axis compass with a full scale range of ±1200µT; Reduced settling effects and sensor drift by elimination of board-level cross-axis alignment errors between accelerometer, gyroscope, and compass
• VDD Supply voltage range of 2.4V–3.46V; VLOGIC of 1.8V±5% or VDD; Gyro operating current: 3.6mA; Gyro + Accel operating current: 3.8mA; Gyro + Accel + Compass + DMP operating current: 4.25mA
• I2C Pullup Resistors populated on board
• Solder Jumper for Switching LSB of I2C Address

PartNumber: GY

Release Date: 02-06-2019

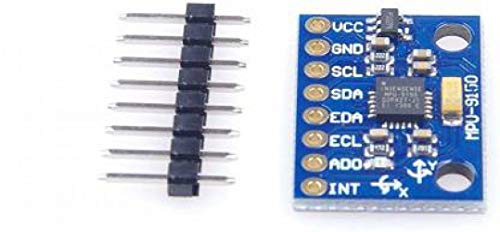

Details: The MPU-9150 is the world’s first 9-axis MotionTracking device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors. And guess what? You get to play with it. This breakout board makes it easy to prototype with the InvenSense MPU-9150 by breaking out all the pins you need to standard 0.1" spaced headers. The board also provides I2C pullup resistors and a solder jumper to switch the I2C address of the device. The MPU-9150 is a System in Package (SiP) that combines two chips: the MPU-6050, which contains a 3-axis gyroscope, 3-axis accelerometer, and an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms; and the AK8975, a 3-axis digital compass. The part’s integrated 9-axis MotionFusion algorithms access all internal sensors to gather a full set of sensor data. The part is offered in a 4x4x1mm LGA package and is upgrade-compatible with the MPU-6050 integrated 6-axis MotionTracking device, providing a simple upgrade path and making it easy to fit on space constrained boards.

EAN: 4604046158532

Model: GY

Binding: Electronics

Item Condition: New
