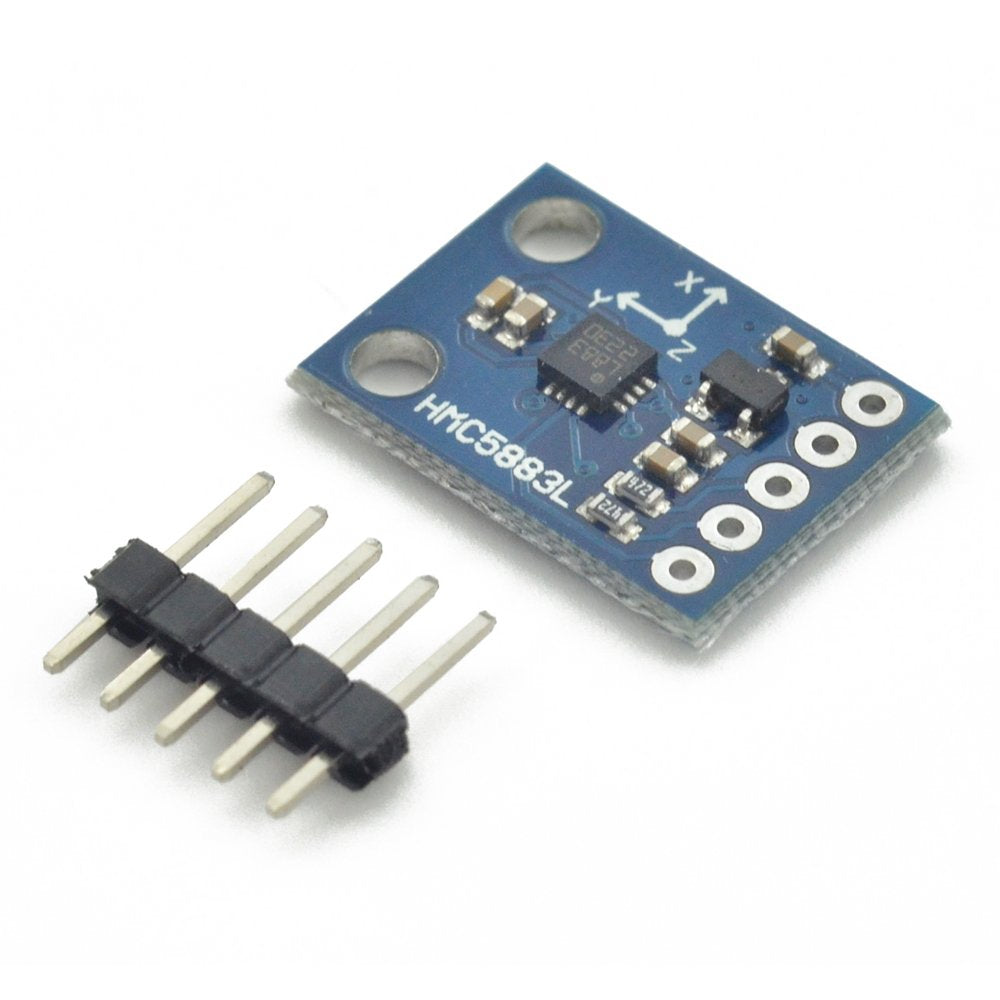

CentIoT - GY-273 L883 3V-5V Triple Axis Compass Magnetometer Sensor Module - HMC5883L Compatible

Brand: CentIoT

Color: Multicolor

Features:

• Model HMC5883L
• Input Supply (V) 3 – 5 VDC; Communication Interface I²C (up to 400 kHz)
• 1-2 degree heading accuracy; Integrated 12-bit ADC; 160Hz max data rate
• Measuring range: ± 1.3-8 gauss
• Size: 13.9 * 18.5

PartNumber: GY-273

Release Date: 02-06-2019

Details: The GY-273 module is based on the Honeywell HMC5883L IC for low-field magnetic sensing with a digital interface for applications such as lowcost compassing and magnetometry. The HMC5883L includes state-of-threat, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification; automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy. The I2C serial bus allows for an easy interface. The HMC5883L utilizes Honeywell’s Anisotropic Magnetoresistive (AMR)technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors’ solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth’s magnetic fields, from milli-gauss to 8 gausses. Honeywell’s Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry. Note: Sometimes markings on these boards vary slightly (e.g. Some may be labeled ‘HW-127’ instead of ‘GY-273’ even though they are otherwise identical). Applications: 1. Auto and personal navigation. 2. UAV systems. 3. Robotic navigation. 4. Location-based services (LBS). Features: 1. 1-2 degree heading accuracy. 2. A range of -8 to +8 Gauss. 3. Communication: IIC communication protocol.

EAN: 4604046158471

Model: HMC5883L

Binding: Electronics

Item Condition: New
