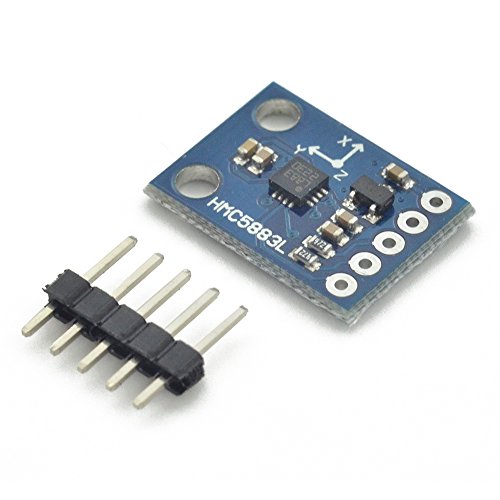

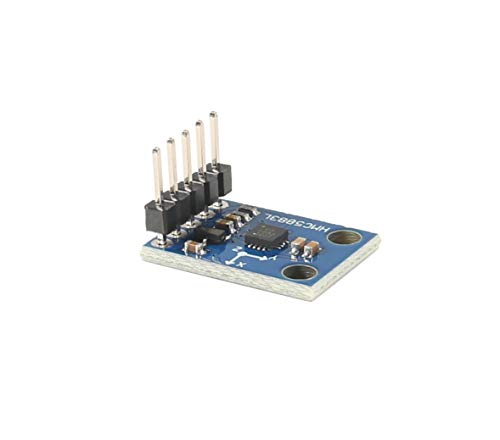

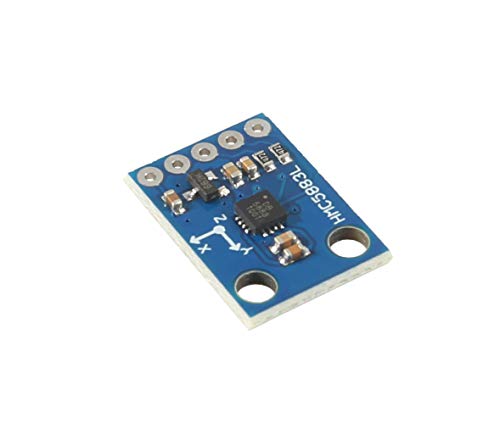

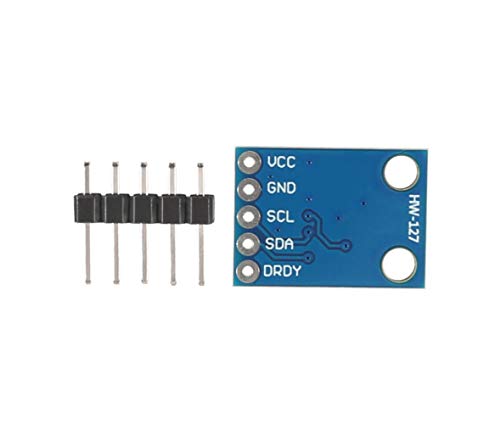

CentIoT - GY-273 DB5883 3-Axis Compass Magnetometer Sensor Board Module

Brand: CentIoT

Color: Multicolor

Features:

• Model: GY-273
• IC: DB5883
• Module Power supply : 3-5V
• Communication: IIC communication protocol
• Size: 13.9 * 18.5 MM

PartNumber: GY-273

Release Date: 02-06-2019

Details: The GY-273 module is based on the DB5883 IC for low-field magnetic sensing with a digital interface for applications such as low cost compassing and magnetometer. The DB5883 includes state-of-the art, high-resolution HMC118X series magneto-restive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors’ solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth’s magnetic fields, from milli-gauss to 8 gauss. Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry. Specification: Based on HMC5883L module [three-axis magnetic field module].

EAN: 4604046158488

Model: DB5883

Binding: Electronics

Item Condition: New
