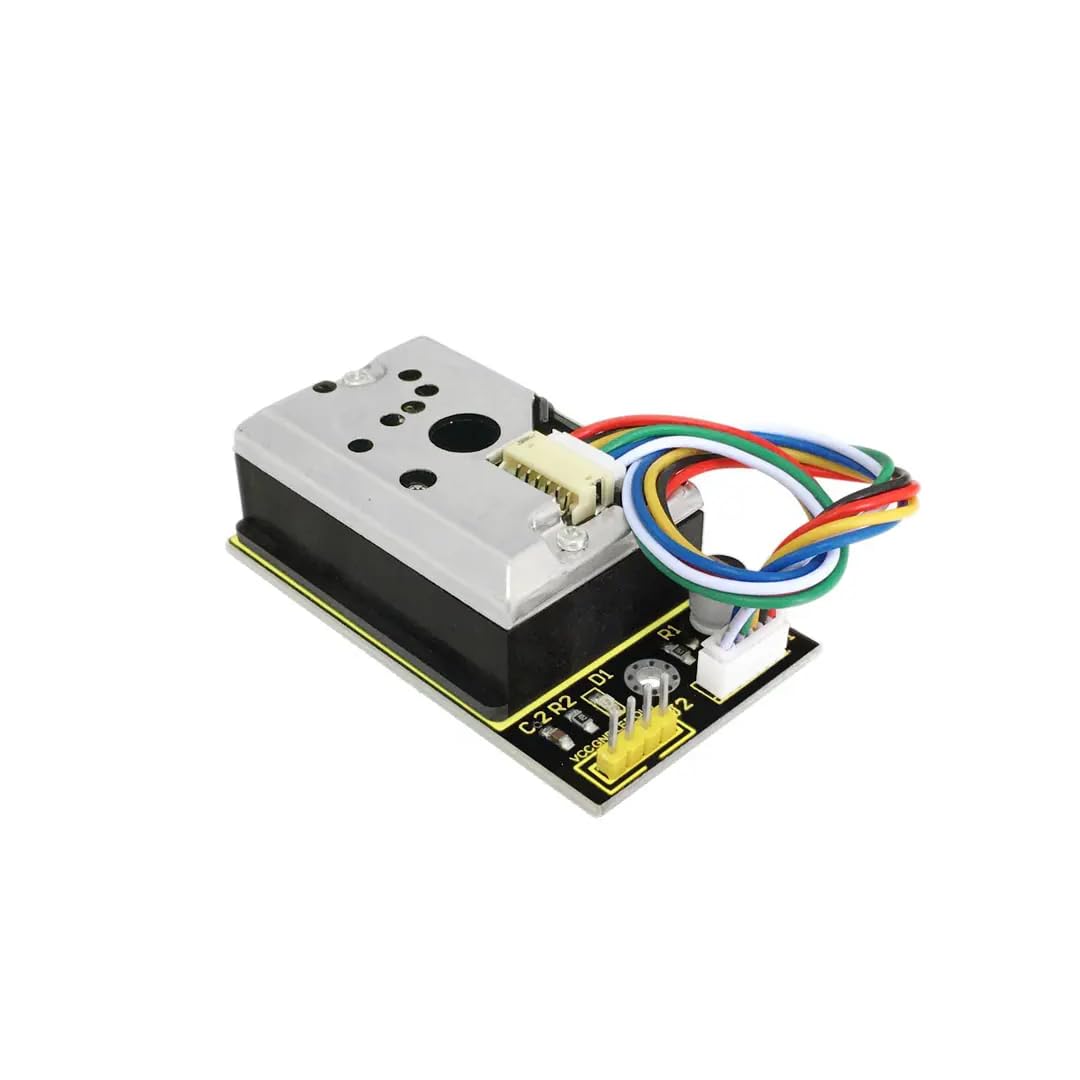

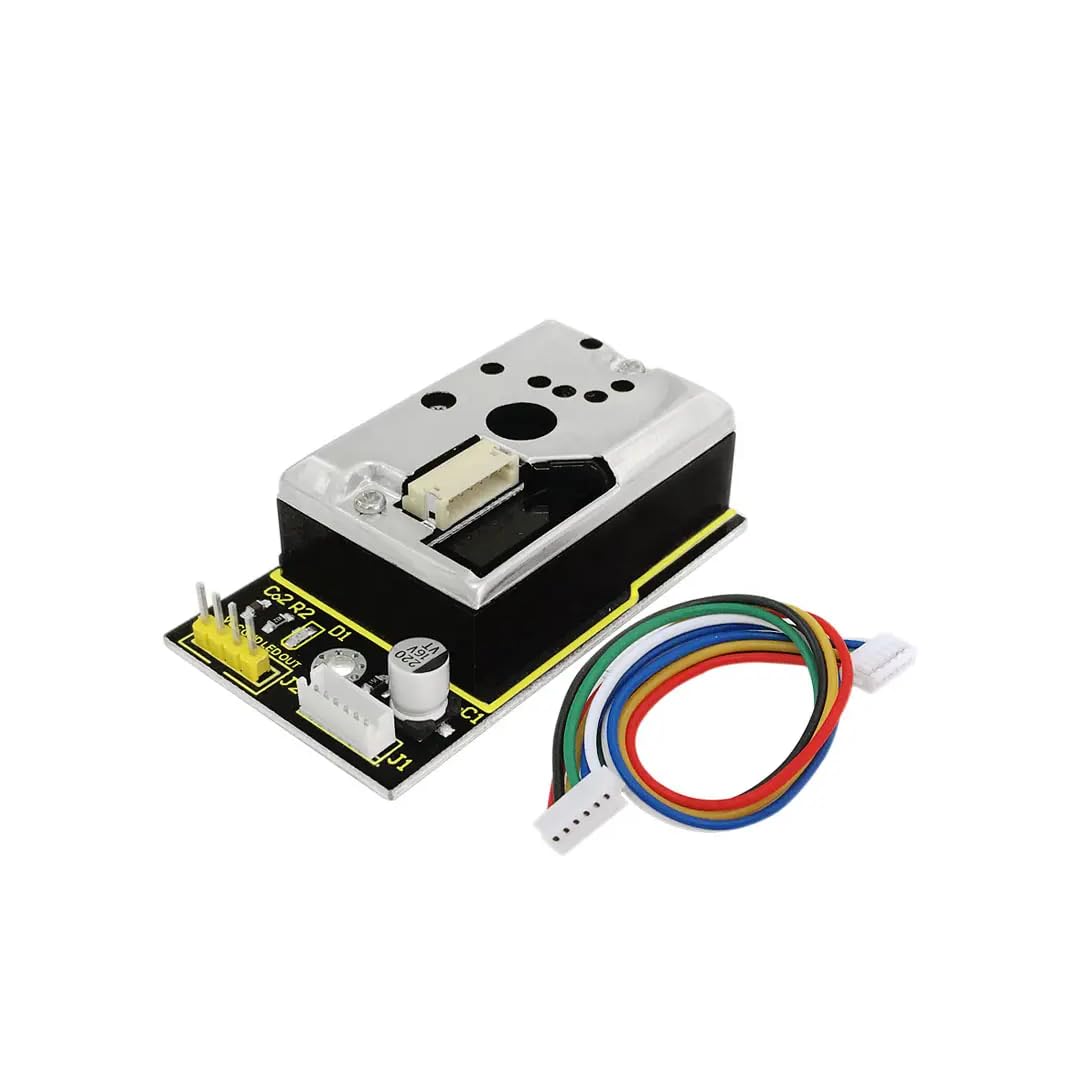

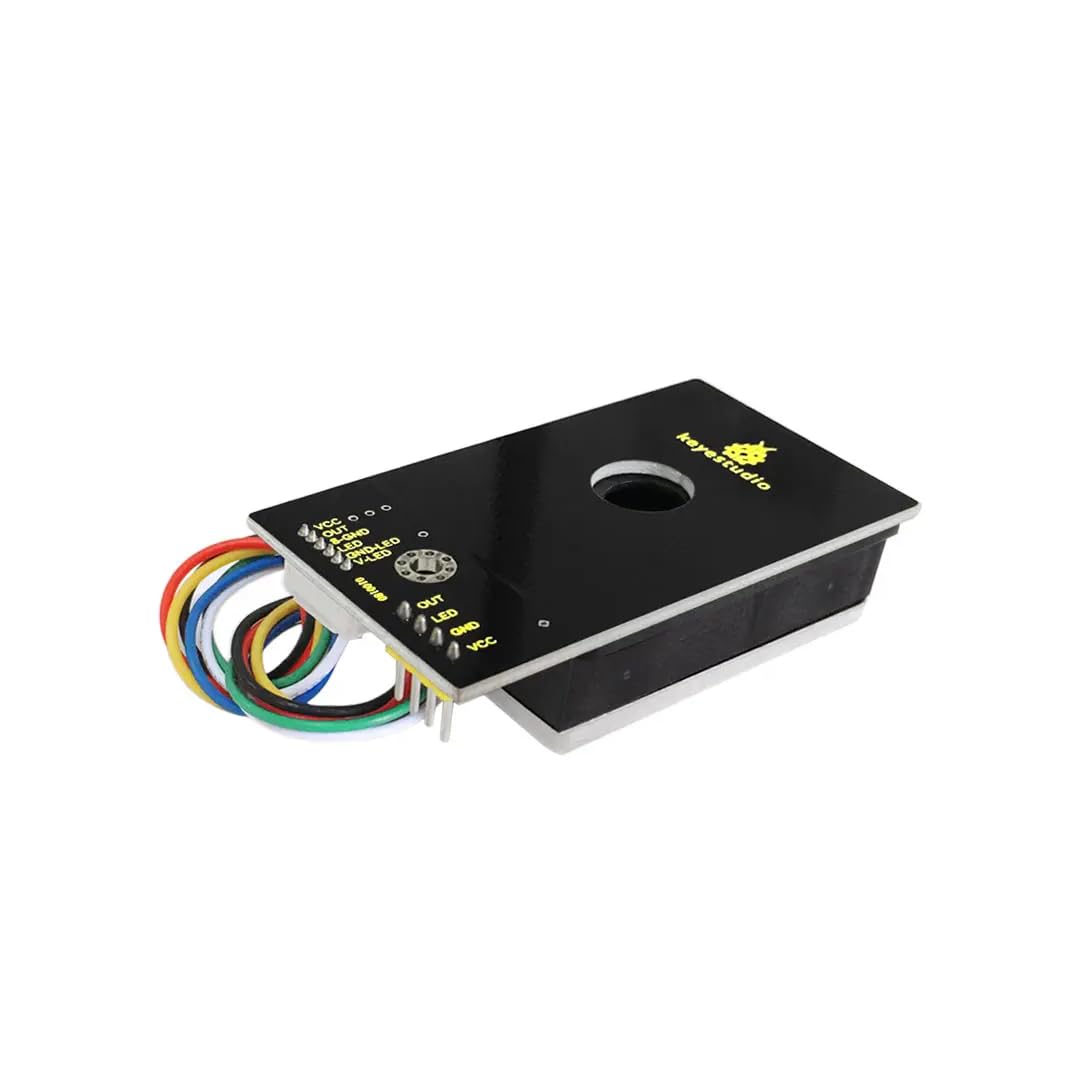

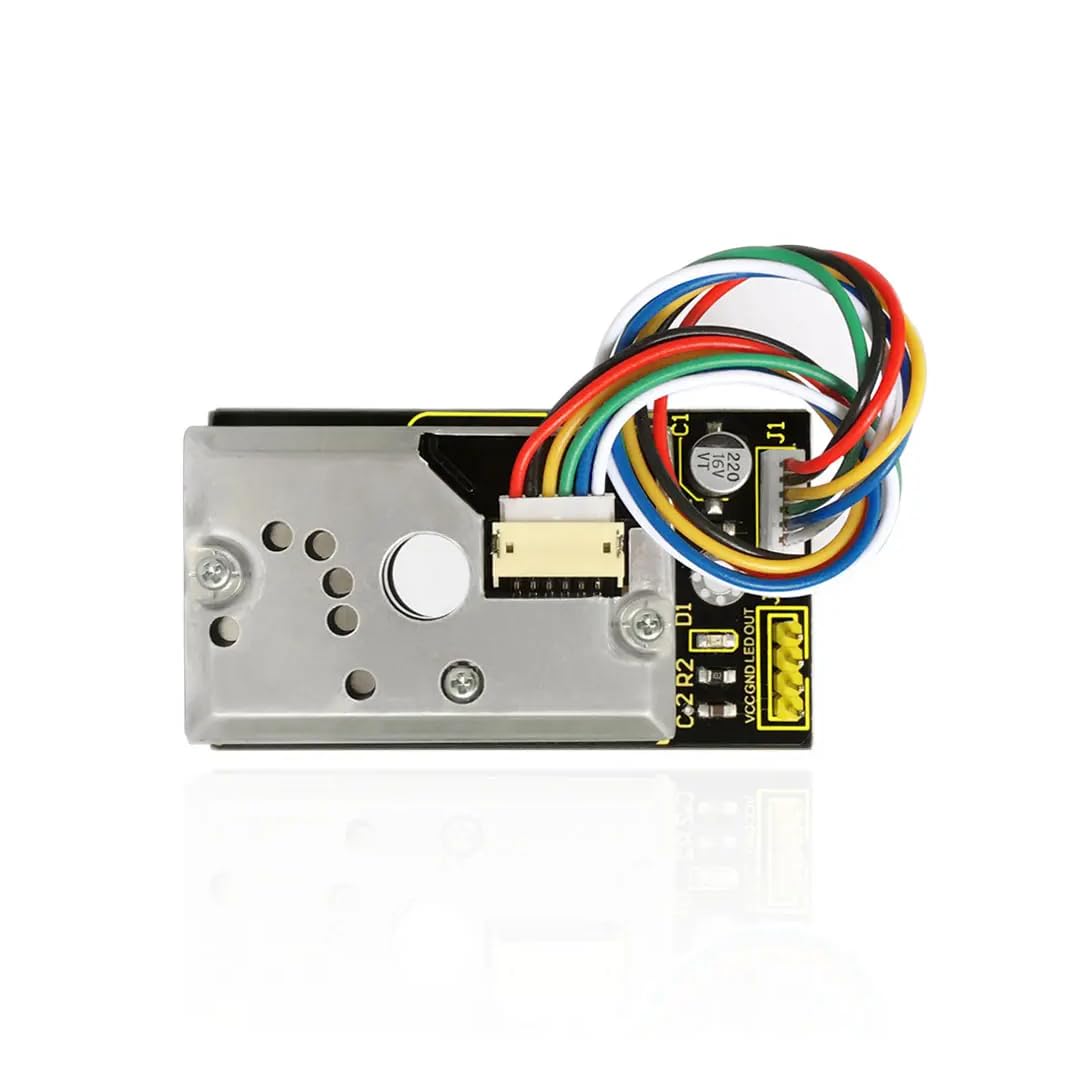

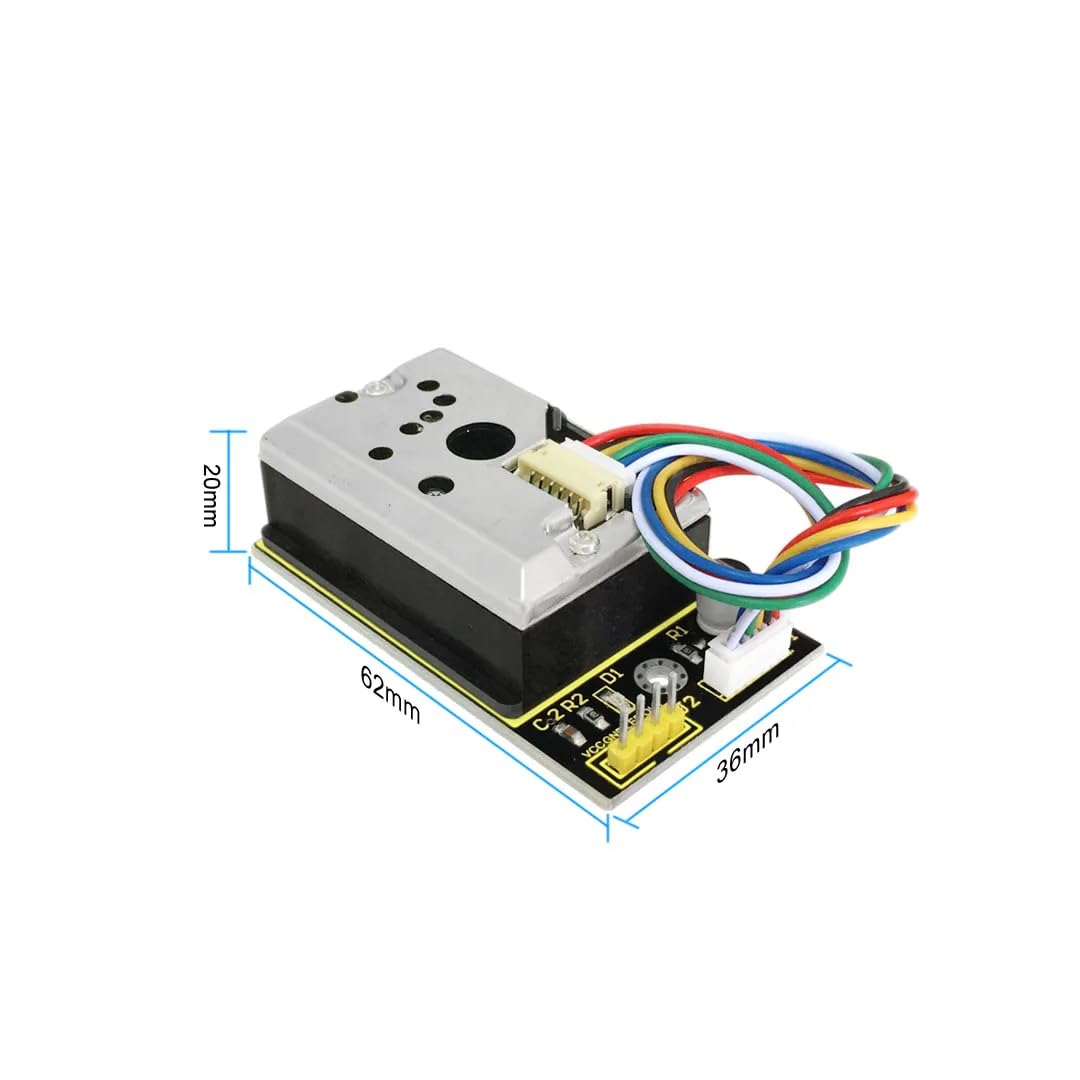

CentIoT - GP2Y1014AU PM2.5 Optical Dust sensor Shield Expansion Board

Brand: CentIoT

Features:

• Power Voltage: 5-7V; Operating Current: 20mA (max)
• Detecting Value of Minimum Particle: 0.8μm; Sensitivity: 0.5V/(0.1mg/m3); Voltage of Cleaning Air: 0.9V(typical)
• Working Temperature: -10℃ to 65 ℃; Storage Temperature: -20℃~80℃; Life time: 5 Years
• Contact us for sample code and library
• Data compared to air quality: 3000 + = Very Bad; 1050-3000 = Bad; 300-1050 = Ordinary ;150-300 = Good ;75-150 = Very Good; 0-75 = Tiptop

PartNumber: KS0196

Model: KS0196

Item Condition: New
