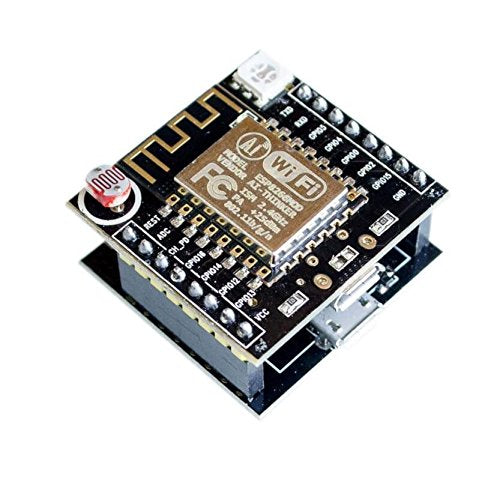

CentIoT - ESP8266 / ESP-12F / Serial WiFi Witty Cloud Development Board Module + Mini NODEMCU (2 in 1 Home Automation

Brand: CentIoT

Features:

• Uses latest ESP-12F module with 4M flash and integrated antenna
• Includes CH340G USB-to-UART programmer
• Compact design (30mm (w) * 30mm (d) * 15mm (h) approx.)
• Includes LDR (light dependant resistor a.k.a photoresistor) connected to ESP's ADC pin
• RGB LED connected to GPIO 12,13 and 15

PartNumber: E006-ESP12F-WITTY

Release Date: 15-10-2016

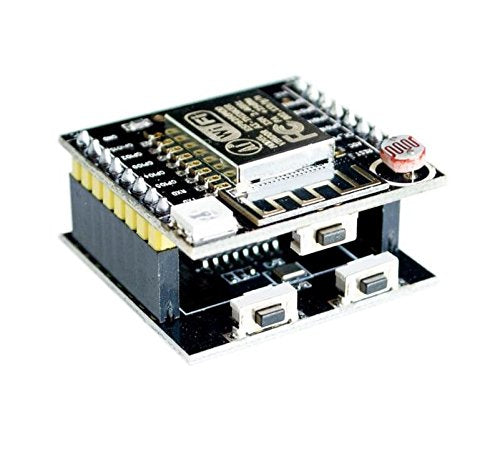

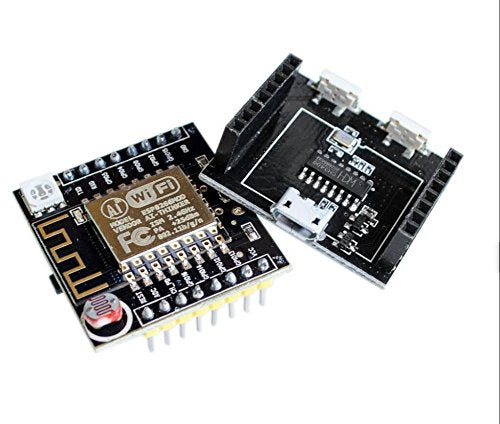

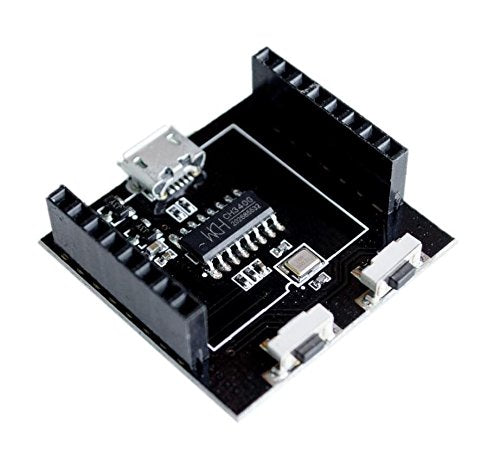

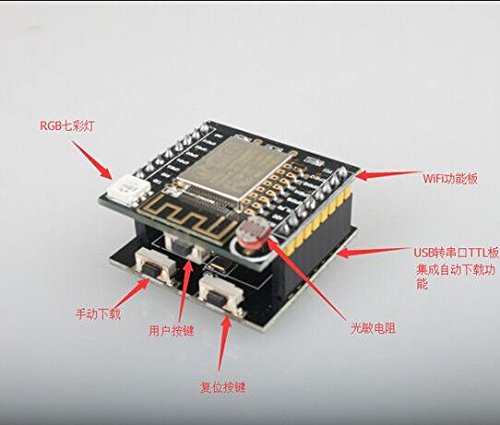

Details: ESP8266 / ESP-12F / Serial WIFI Witty cloud Development Board Module is an compact ESP8266 board with integrated USB to TTL debug interface, a photo resistor, and/or some useful buttons, all in an white brand board based on ESP-12F. The board is in two parts – one part has reset/flash buttons, a CH341 UART and female headers; the other half has USB for power only, a button (for input, not reset or flash) and male headers which take up an entire breadboard.

UPC: 618020767843

EAN: 0618020767843

Model: E006-ESP12F-WITTY

Binding: Electronics

Item Condition: New
