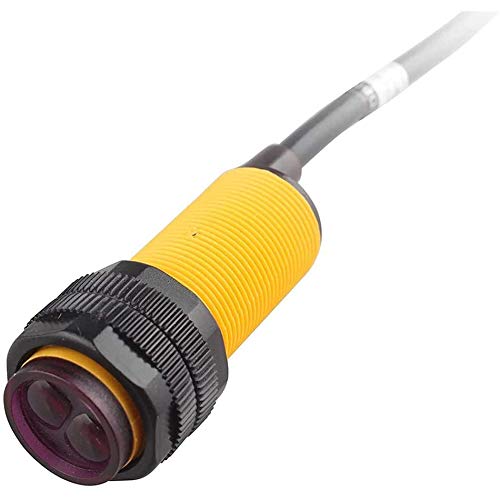

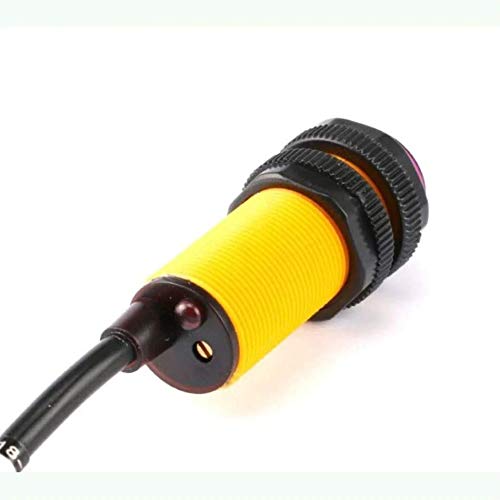

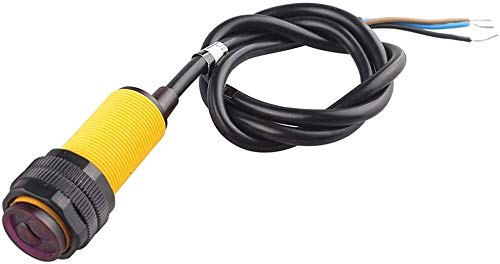

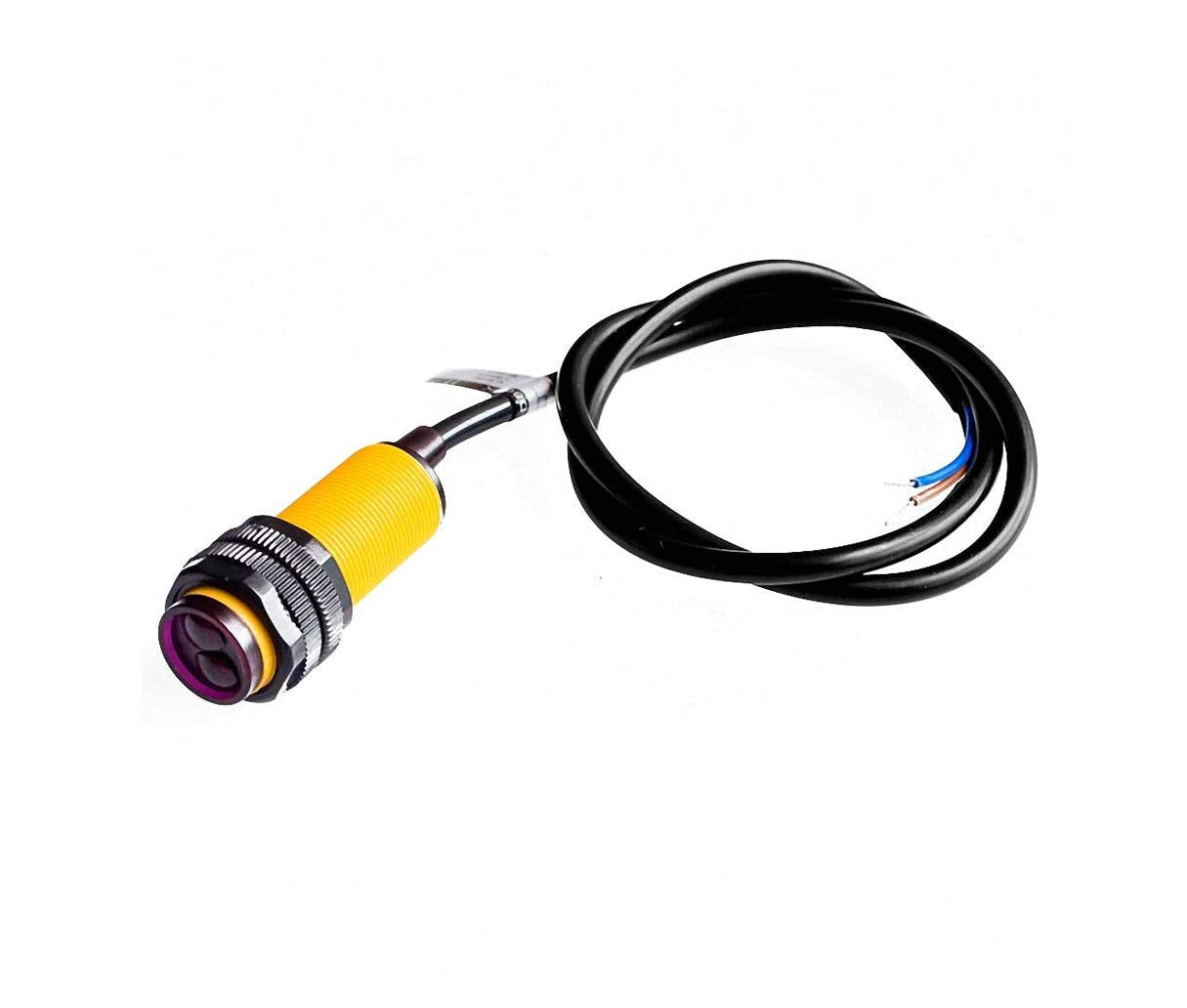

CentIoT - E18-D80NK Infrared Reflectance Sensor Obstacle Avoidance Detection Module 5V Switch Detect 3-80cm

Brand: CentIoT

Features:

• Output current DC / SCR / Relay Control output: 100mA / 5V power supply;
• Current consumption DC <25mA; Response time <2ms; Pointing angle: ≤ 15 °, the effective distance 3-80CM adjustable
• Testing objects: transparent or opaque body; Working environment temperature: -25 ℃ ~ +55 ℃
• Diameter: 17MM; Sensor length: 45MM; Lead length: 45CM
• Shell material: plastic

PartNumber: E18-D80NK

Release Date: 23-07-2020

Details: The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm. The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions. The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm. Connection: 1. Red wire: +5V 2. Green wire: GND 3. Yellow wire: Digital output 4. Brown wire: +5V 5. Blue wire: GND 6. Black wire: Digital output. Features : 1. Diffuse reflective type. 2. Digital output. 3. Adjustable detection distance. 4. Low consumption. 5. Compact size. 6. Package Includes : 1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.

UPC: 679043312601

EAN: 0679043312601

Model: E18-D80NK

Binding: Electronics

Item Condition: New
