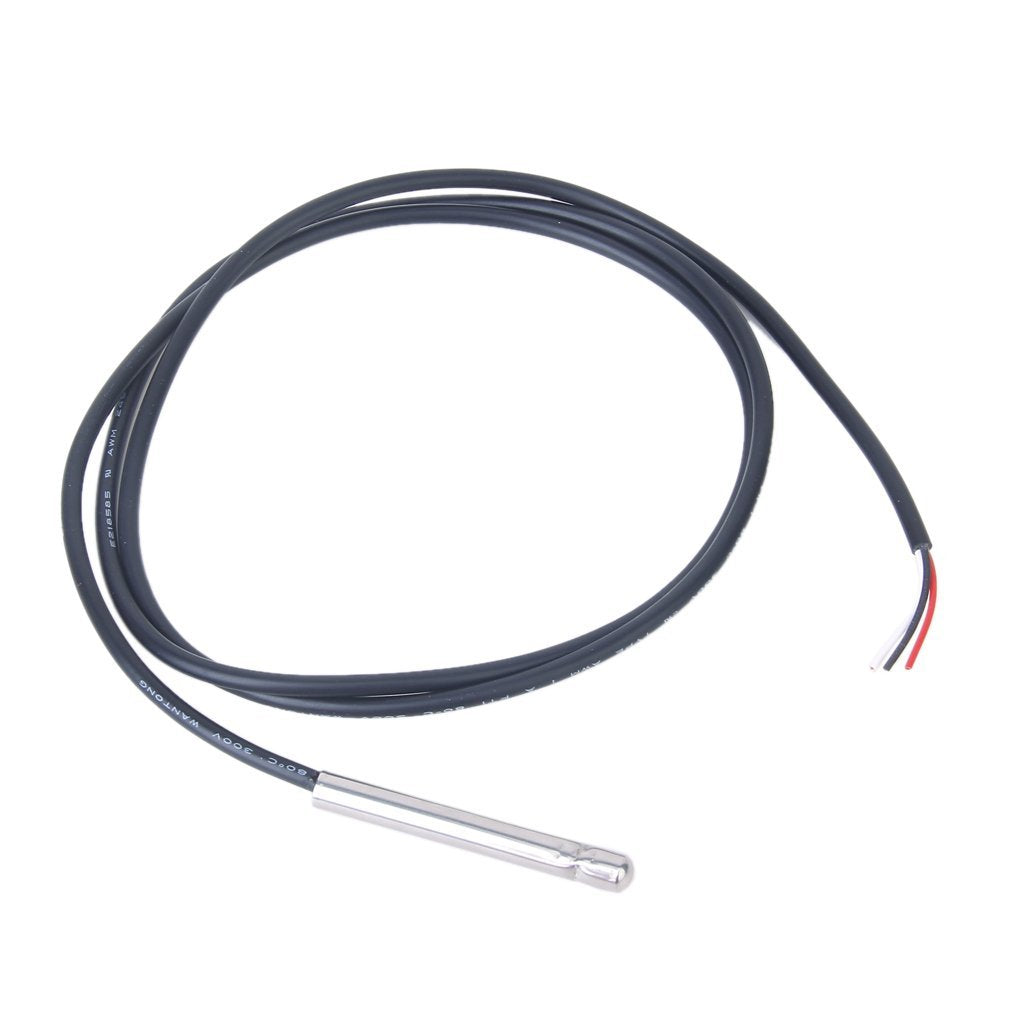

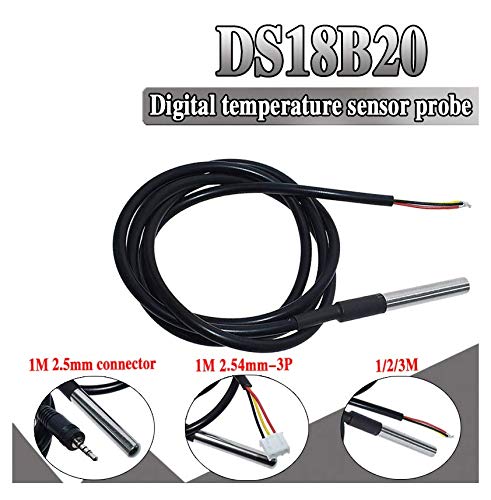

CentIoT - DS1820 Waterproof Stainless steel package - DS18b20 temperature probe 18B20 temperature sensor - (1M Open)

Brand: CentIoT

Features:

• Product: DS18B20 18B20 Temperature Sensor stainless steel proble

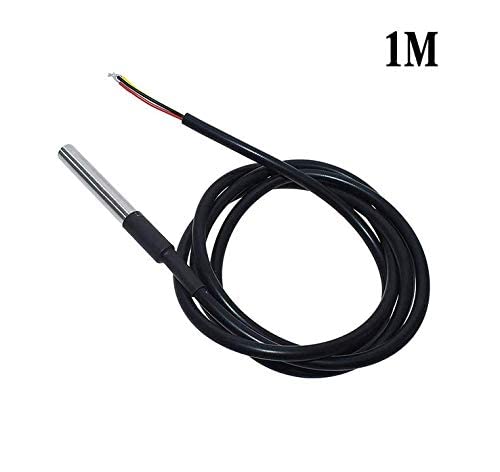

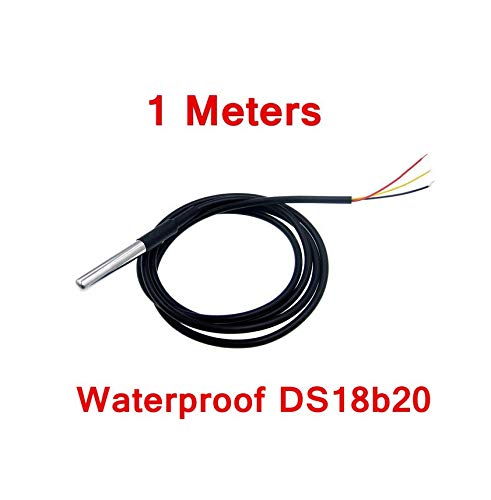

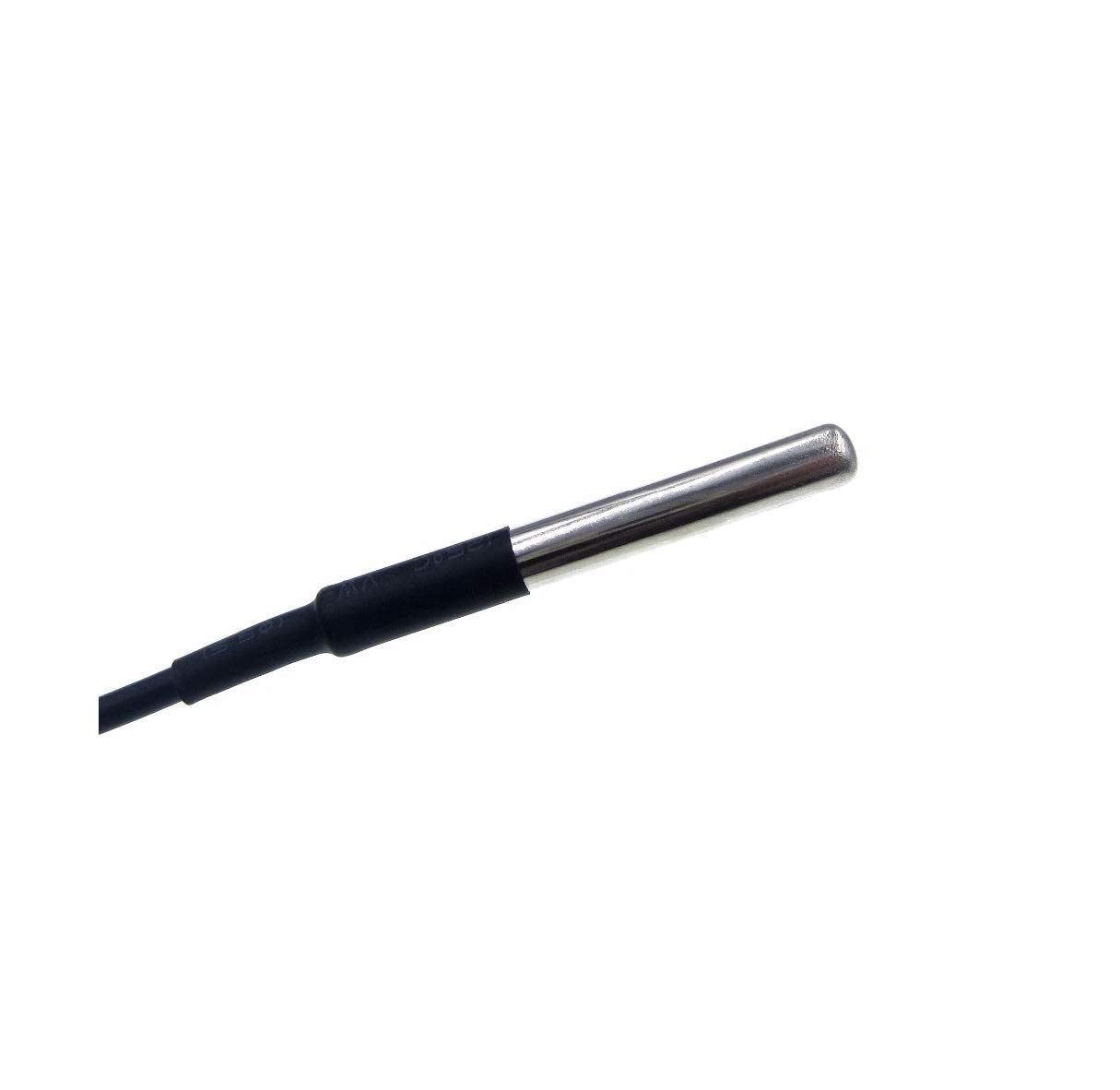

• Waterproof; Probe Length: 1M; Connector type: open wire; Size of Stainless steel sheath:6*50mm
• Supply Voltage: +3.0 to +5.5V; Voltage Range on Any Pin Relative to Ground: -0.5V to +6.0V
• Sink Current: 4mA; Standby Current: 750 to 1000mA; Active Current: 1 to 1.5mA; Input Current: 5 micro Ampere
• Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C

PartNumber: M0005-M0009

Details: The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply. DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems. Applications ● Thermostatic Controls ● Industrial Systems ● Consumer Products ● Thermometers ● Thermally Sensitive Systems Powering the DS18B20 The DS18B20 can be powered by an external supply on the VDD pin, or it can operate in “parasite power” mode, which allows the DS18B20 to function without a local external supply. Parasite power is very useful for applications that require remote temperature sensing or that are very space constrained Supply Voltage: +3.0 to +5.5V

UPC: 679043306846

EAN: 0679043306846

Model: M0005-M0009

Item Condition: New
