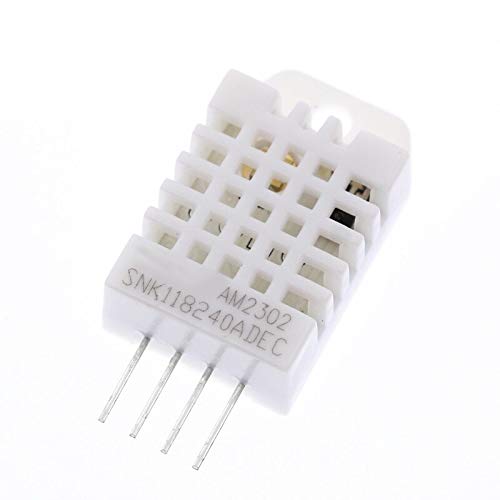

CentIoT - DHT22 AM2302 IIC I2C single-bus digital temperature and humidity sensor module

Brand: CentIoT

Features:

• Temperature measurement range: -40 ° C ~ 80 ° C ; Humidity measurement range: 0% to 99.9% (0°C-50°C range)
• Temperature measurement error: ±0.5°C max ±1°C; Humidity measurement error: ±2%
• Working voltage: 3V--5.5V
• Resolution: 16 bits
• Sampling period: 2s ; Output signal digital signal via single-bus; Sensing element Polymer capacitor

PartNumber: SE0041-DHT22

Release Date: 15-02-2020

Details: AM2302 Humidity Capacitance Digital Temperature and Humidity Sensor is a temperature and humidity composite sensor with a calibrated digital signal output. It uses dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability. Therefore, the product has the advantages of excellent quality, fast response, strong anti-interference ability and high cost performance. Each sensor is calibrated in a precision humidity calibration chamber. The calibration coefficients are stored in the OTP memory as a program, and these calibration coefficients are called internally during the processing of the detection signal. The sensor consists of a capacitive sensing element and an NTC temperature measuring element connected to a high performance 8-bit microcontroller. Communication with the microprocessor via a single bus requires only one line, 40 bits of data at a time, high first out. Small size, low power consumption, long communication distance, can be used in demanding applications. Applications: HVAC, dehumidifiers, testing and inspection equipment, consumer goods, automotive, automation, data loggers, weather stations, home appliances, humidity control, medical, and other relevant humidity measurement and control.

UPC: 679043314391

EAN: 0679043314391

Model: SE0041-DHT22

Binding: Electronics

Item Condition: New
