Description
Brand: CentIoT
Color: Red
Features:
- Module based on : DUAL MOSFET; The delay time is 0.1 seconds (min) to 999 minutes (max) continuously adjustable
- Operating voltage: 5--36V; Quiescent Current: 20mA; Operating Current: 50mA; The dual-MOS parallel drive, lower resistance, more current, strong power; at room temperature, operating current of up to 15A, power up to 400W

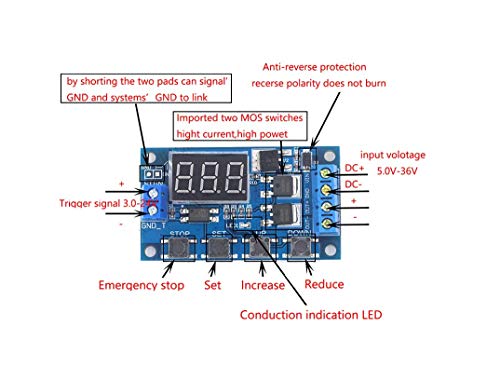

- Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system's anti-jamming capability (customers can also shorting common ground)
- Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Enhance heat dissipation conditions, the maximum current up to 30A
- Working temperature: -40-85 ; Size: 6.0*3.4*1.2cm; With optocoupler isolation, reverse polarity protection, enhanced anti-jamming capability, industrial grade board
PartNumber: SWD002-T-DLY-MOS-DISP
UPC: 679043313974
EAN: 0679043313974
Model: SWD002-T-DLY-MOS-DISP
Item Condition: New
