Description
Brand: CentIoT
Color: Black
Features:

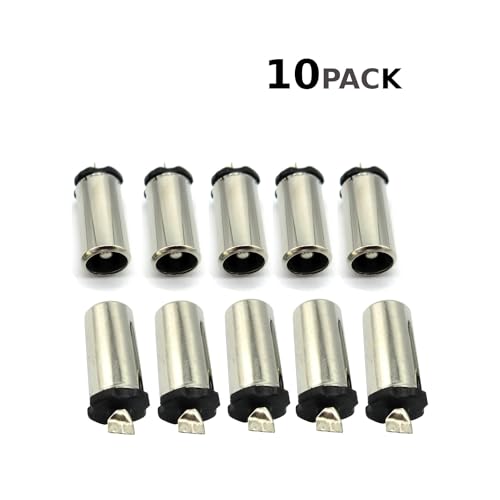

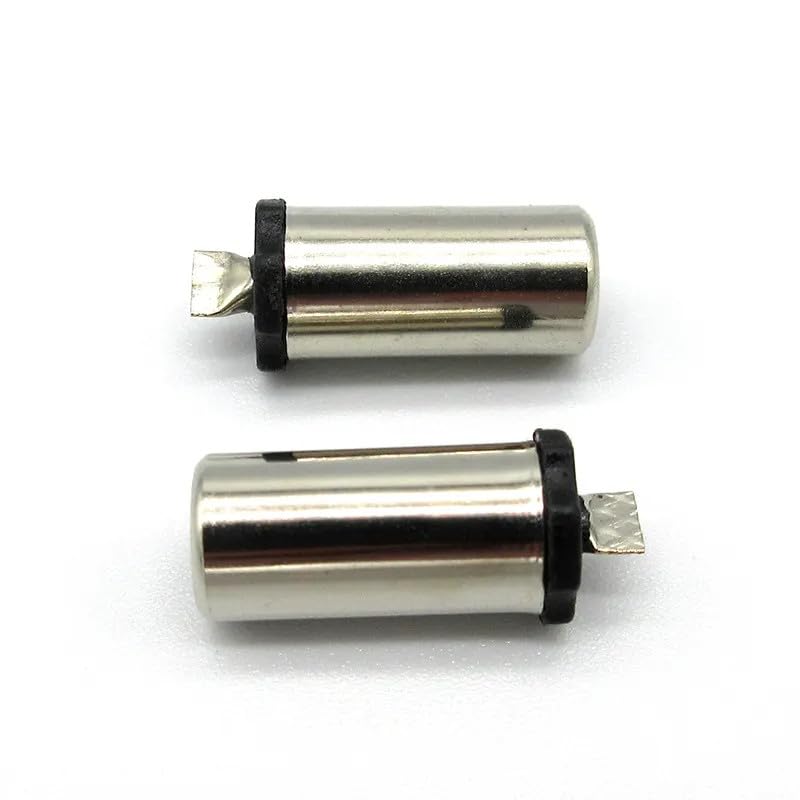

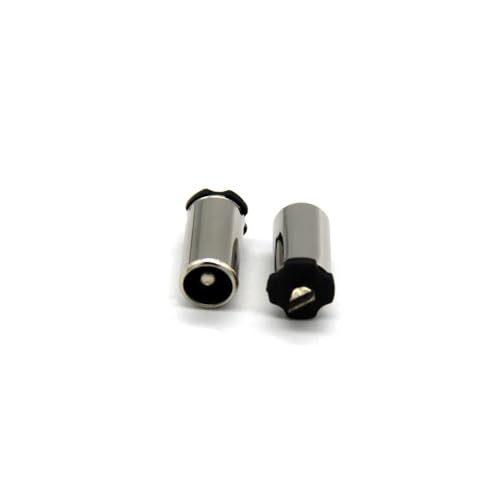

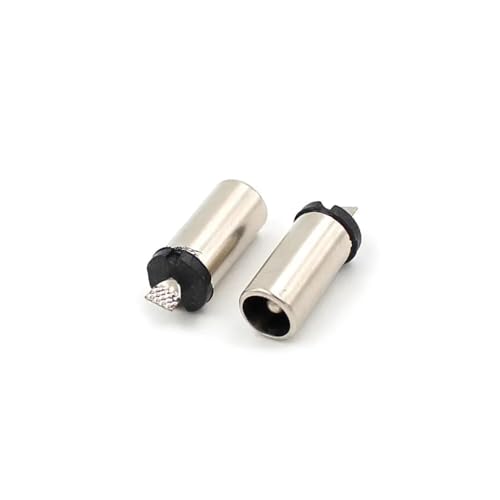

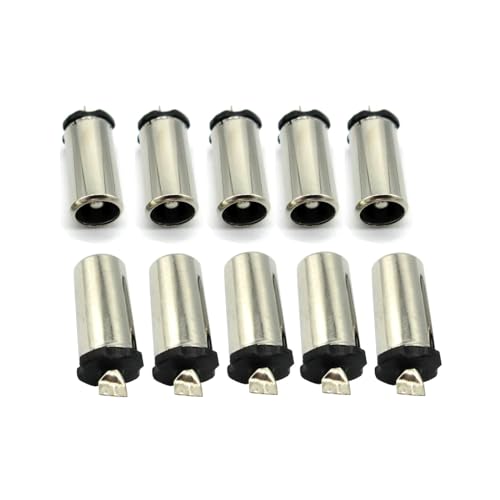

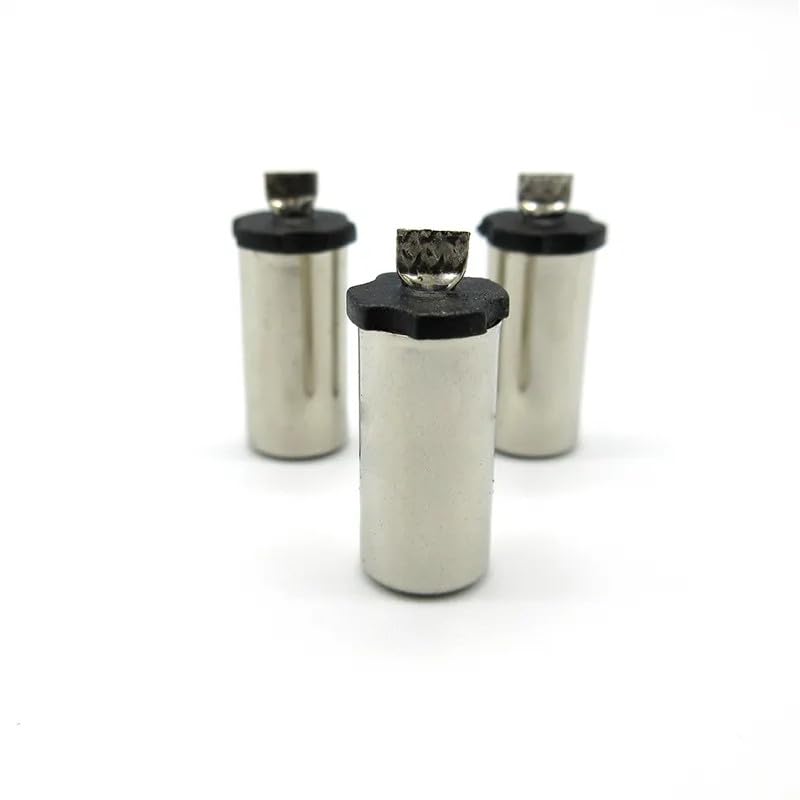

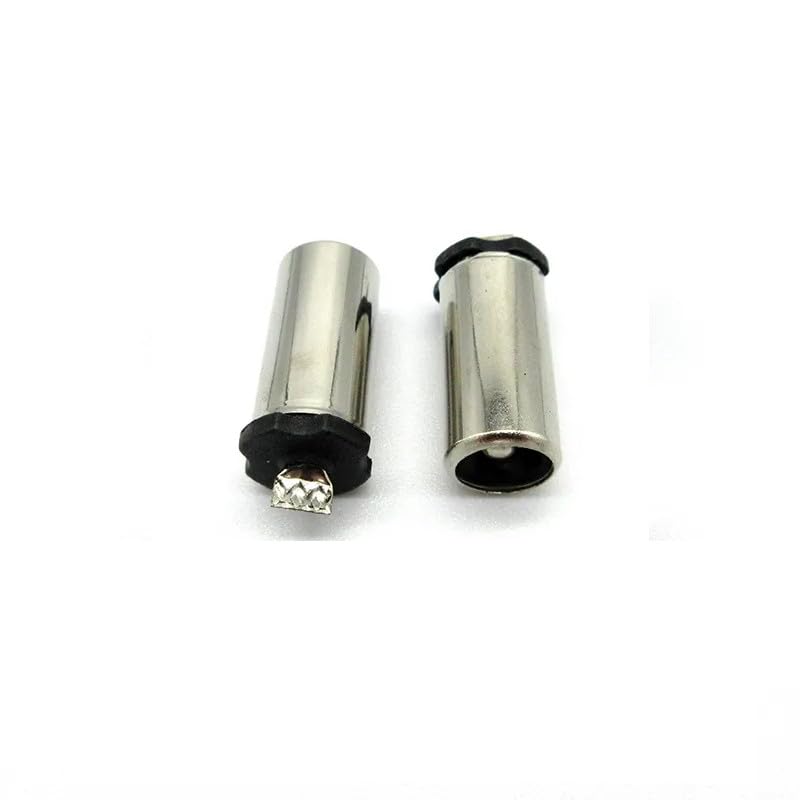

- 5.5*2.1mm Black DC Power Jack Male Connector socket cable mold type
- Materials: Tube & Pin both brass alloy; Plastic is PBT (Black); Plating: Nickel Plated
- Rating: 1Amps to 5Amps; Contact Rating: 5A@5V; 3A@12VDC; 0.5A@30VDC
- Salt Spray Test Time: 12 hours to 72 hours; WITHSTAND VOLTAGE:AC 500V(50HZ)min;

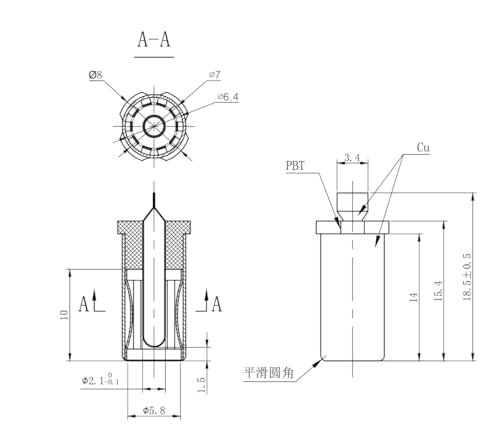

- Overall Length: 18.5mm; Outer Diameter:7.0mm; Inner Diameter:5.5mm; Pin Diameter:2.1mm; Max Panel Depth: 3mm
- INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥100MΩ
PartNumber: DC230-5521-3A-MJ-CM
Model: DC230-5521-3A-MJ-CM
Item Condition: New
