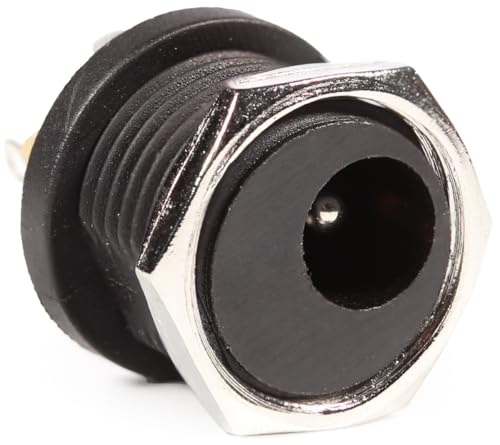

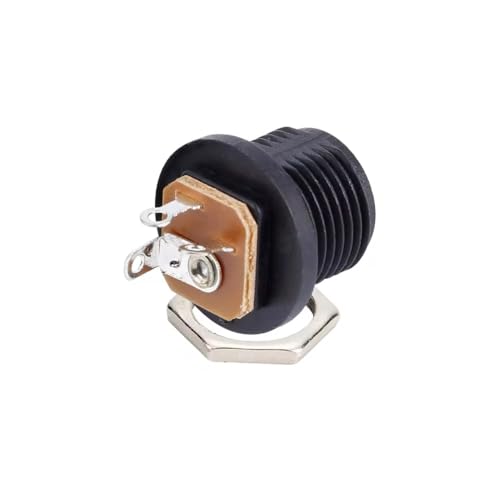

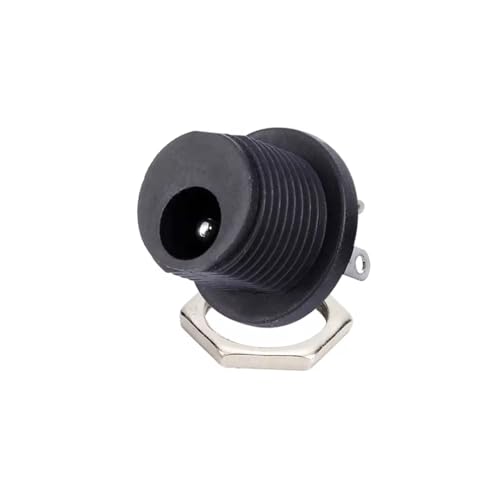

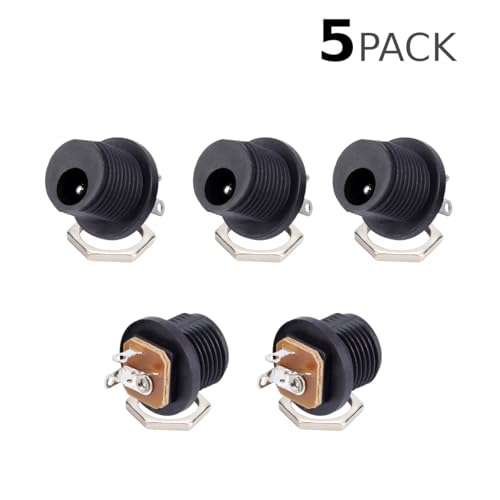

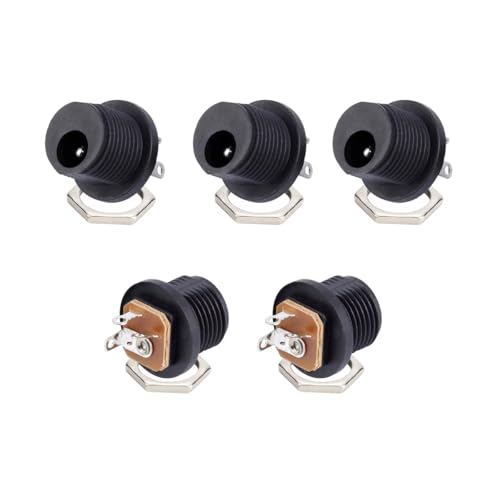

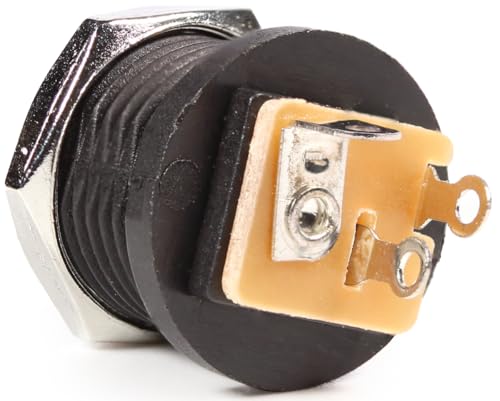

CentIoT - DC Jack Male Socket Connector - Round Panel Chasis Mount 12V 3A (Front Thread Center pin 2.5mm x 5.5, 5pcs)

Brand: CentIoT

Features:

• DC Power Jakc Male Connector Plastic - Soldering type Panel or screw mount
• Materials: Tube & Pin both Nickel Coated Copper; Plastic is PBT (Black); Plating: Nickel Plated
• Rating: 3A to 5A Contact Rating: 5A@5V; 3A@12VDC; 1A@30VDC
• Salt Spray Test Time: 12 hours to 72 hours; WITHSTAND VOLTAGE:AC 500V(50HZ)min;

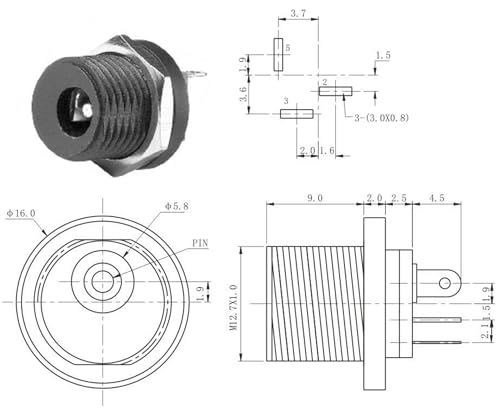

• Overall Length: 30mm; Outer Diameter:5.5mm; Pin Diameter: 2.5mm; Case length needed: 25mm
• INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥100MΩ

PartNumber: DC24-5525-MJ-FTRD

Model: DC24-5525-MJ-FTRD

Item Condition: New
