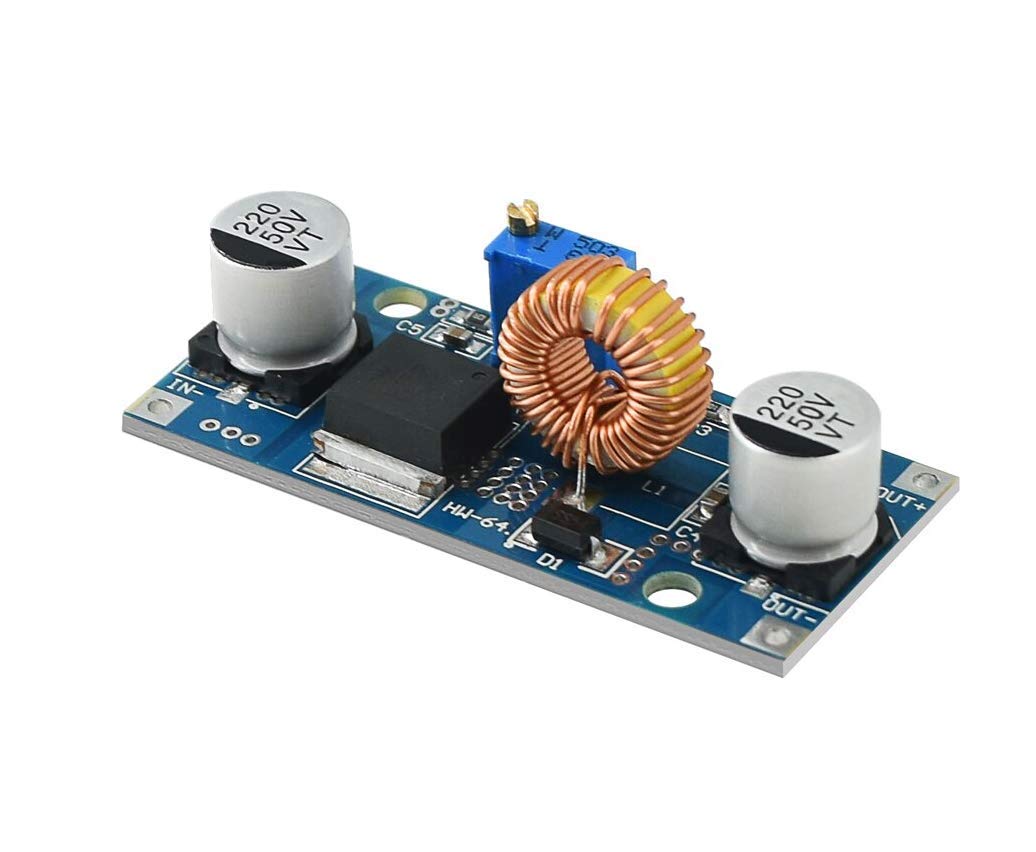

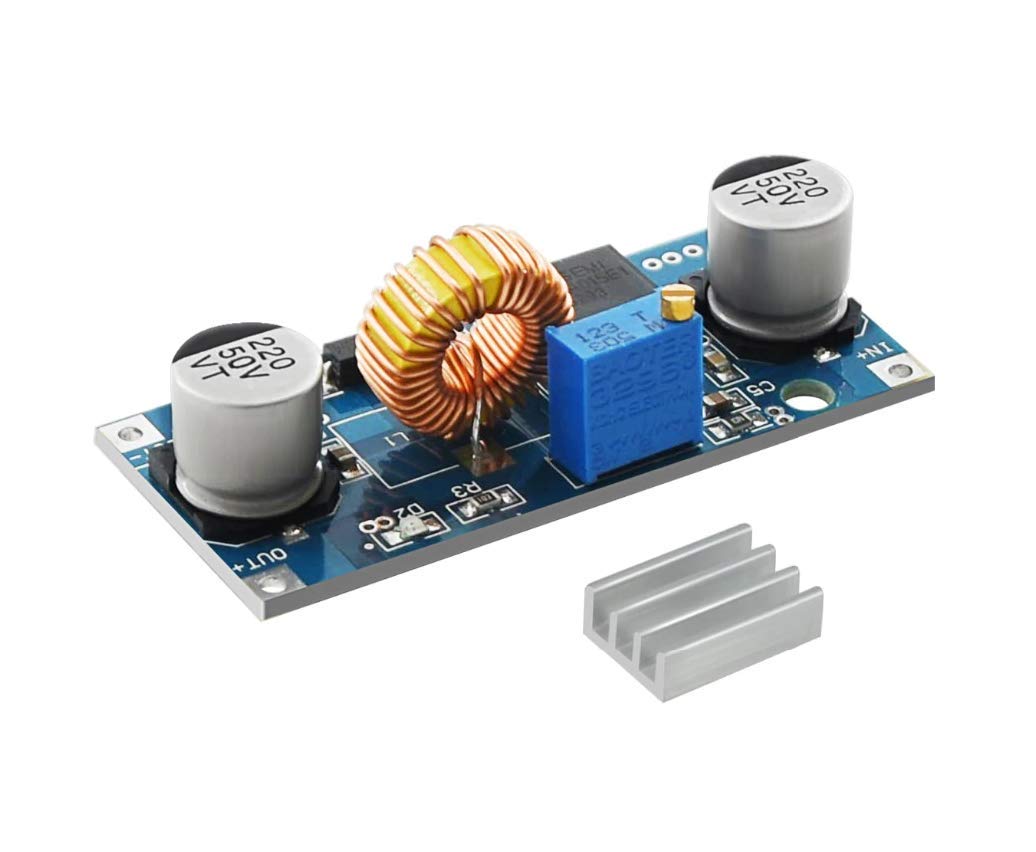

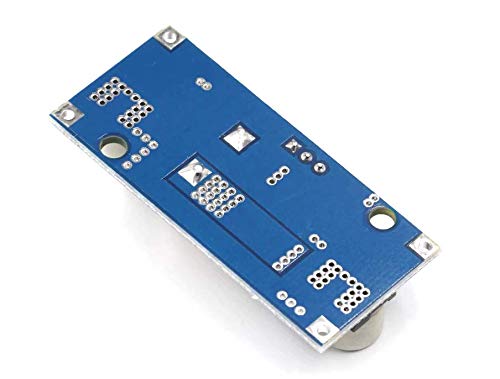

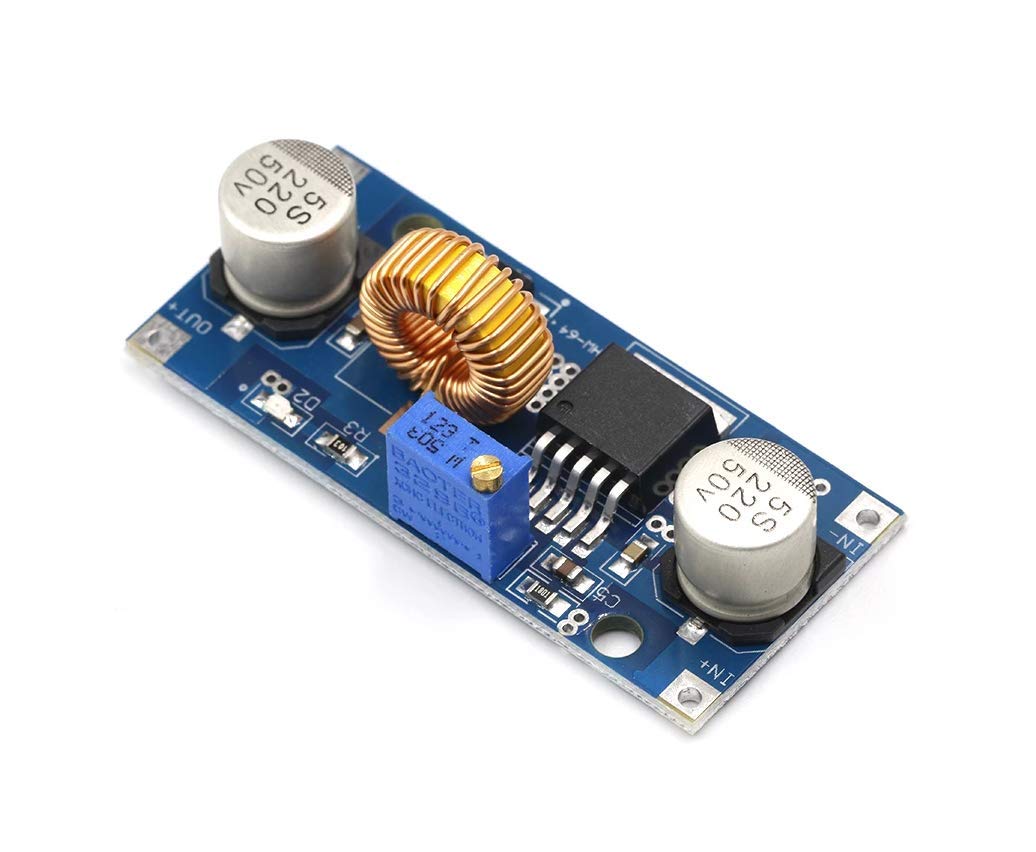

CentIoT - DC DC XL4015 5A 75W 4-38V to 1.25-36V 24V Adjustable Buck Converter Step Down power supply

Brand: CentIoT

Features:

• Input voltage: 4 to 38VDC; Input Current: 5A MAX, Over 3A replace existing heatsink with bigger heatsink to enhance heat dissipation, 2. Related to the input and output voltage difference, the greater voltage difference is, the higher output current will be
• Output voltage 1.25-36V continuously adjustable;
• Output current: 5A MAX, Over 3A replace existing heatsink with bigger heatsink
• Input power: 50W, peak 70W, Input voltage * load current (less 5% loss due to efficiency)
• Working temperature: -40~+85 degrees; Operating frequency: 180KHz; Efficiency:96%(max)

PartNumber: DC078-4015-CC

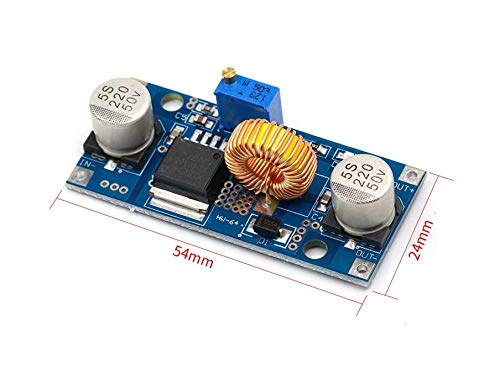

Details: Widely used in adjustable output vehicle power supply DIY, universal car laptop power supply, power supply for electronic devices, etc. 75W DC-DC high voltage power buck module 4 to 38VDC wide voltage input 1-36V stepless adjustable output The maximum peak output current 5A Perfect ultra-efficient circuit design up to 94% Low Ripple Type: Non-isolated step-down module (BUCK) Size: L x W x H = 54 * 24 * 18mm Input voltage: 48-38V (limit 38V, please leave allowance) Output voltage: 1.25-36V continuously adjustable (the default output 12V) Output Current: Normal 3A , MAX5A Output power: natural cooling ventilated long-term power 100W Enhance heat dissipation to reach power up to 75W Operating temperature: -10 to +85 degrees Operating frequency: 180KHz Conversion efficiency: up to 94% Overcurrent protection: No (the output current exceeds (15A) current maximum short duration protection only) Reverse polarity protection: No

UPC: 369639160982

EAN: 0369639160982

Model: DC078-4015-CC

Item Condition: New
