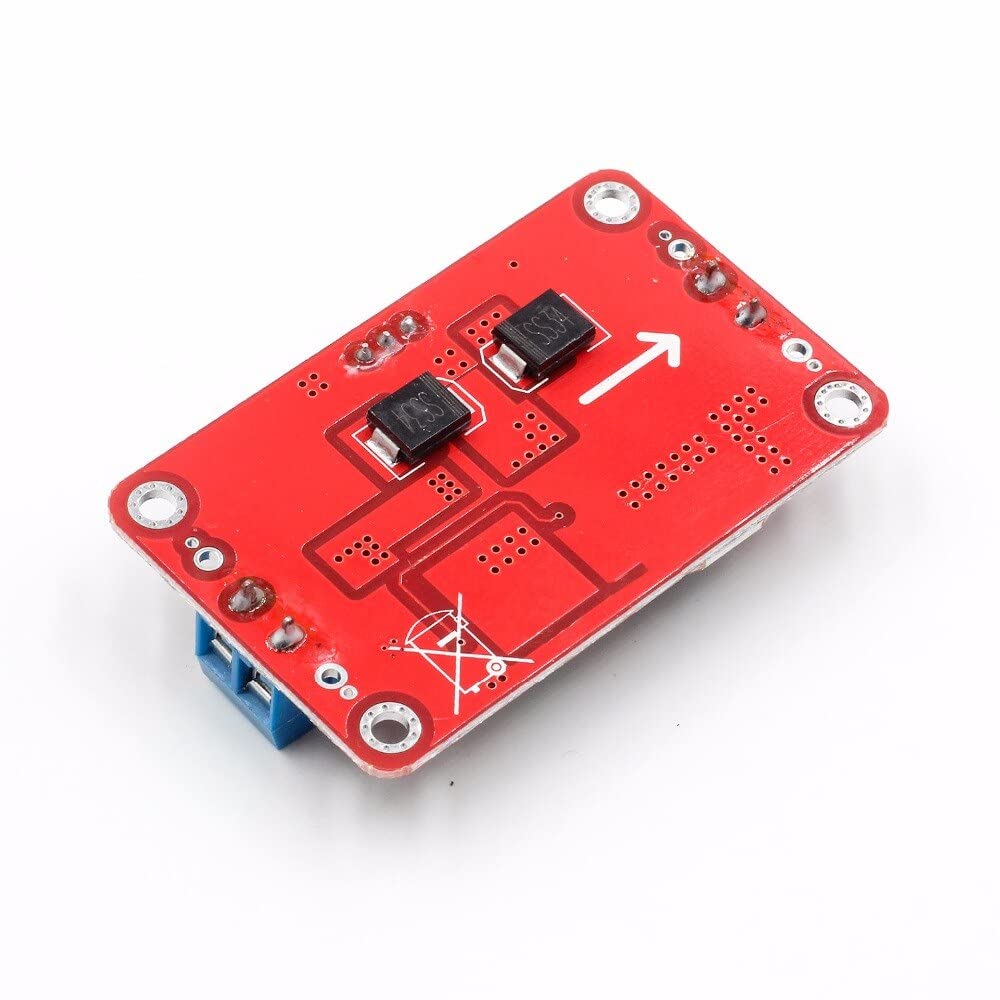

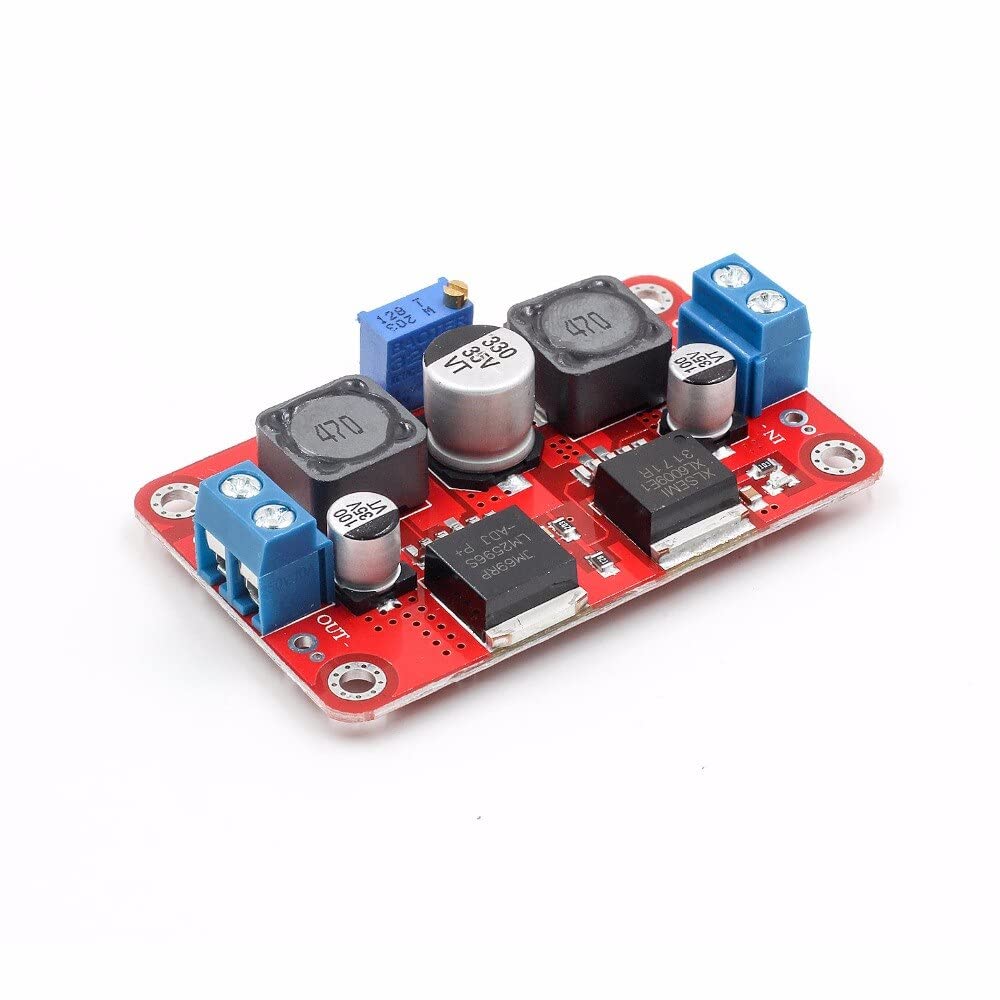

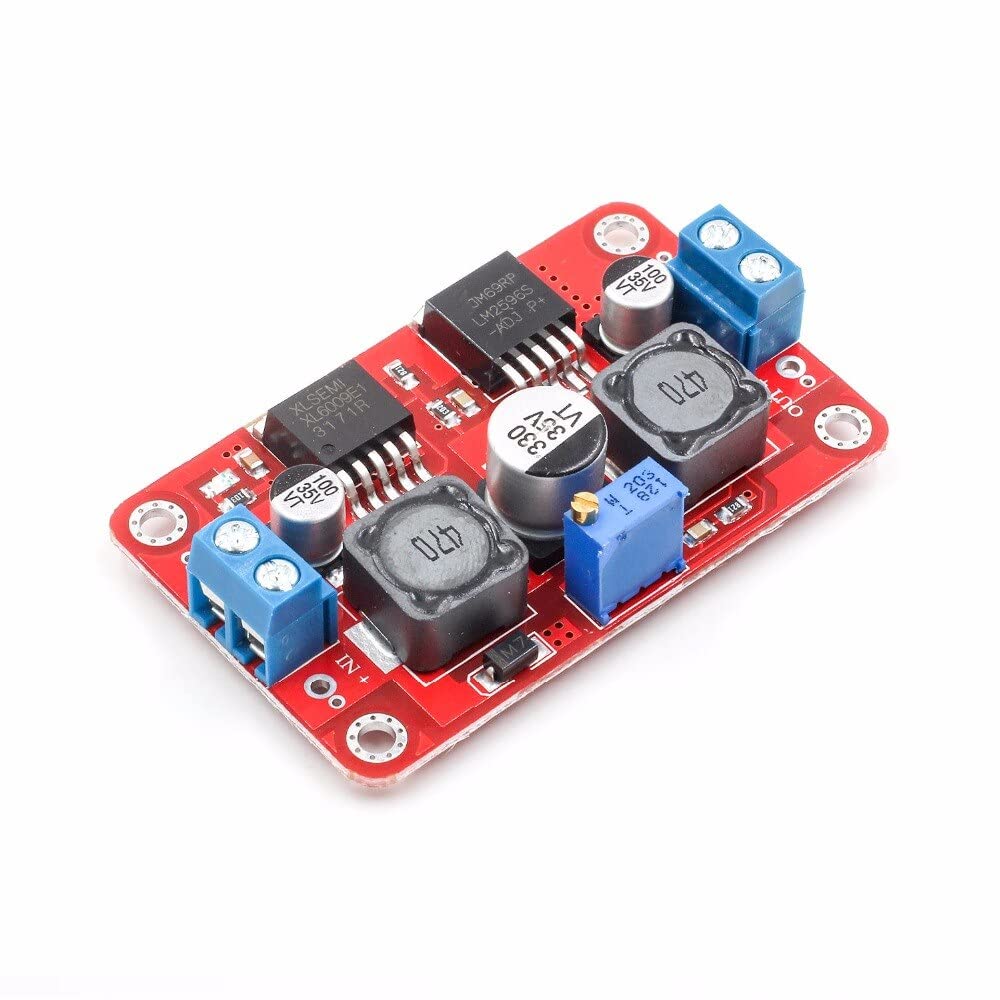

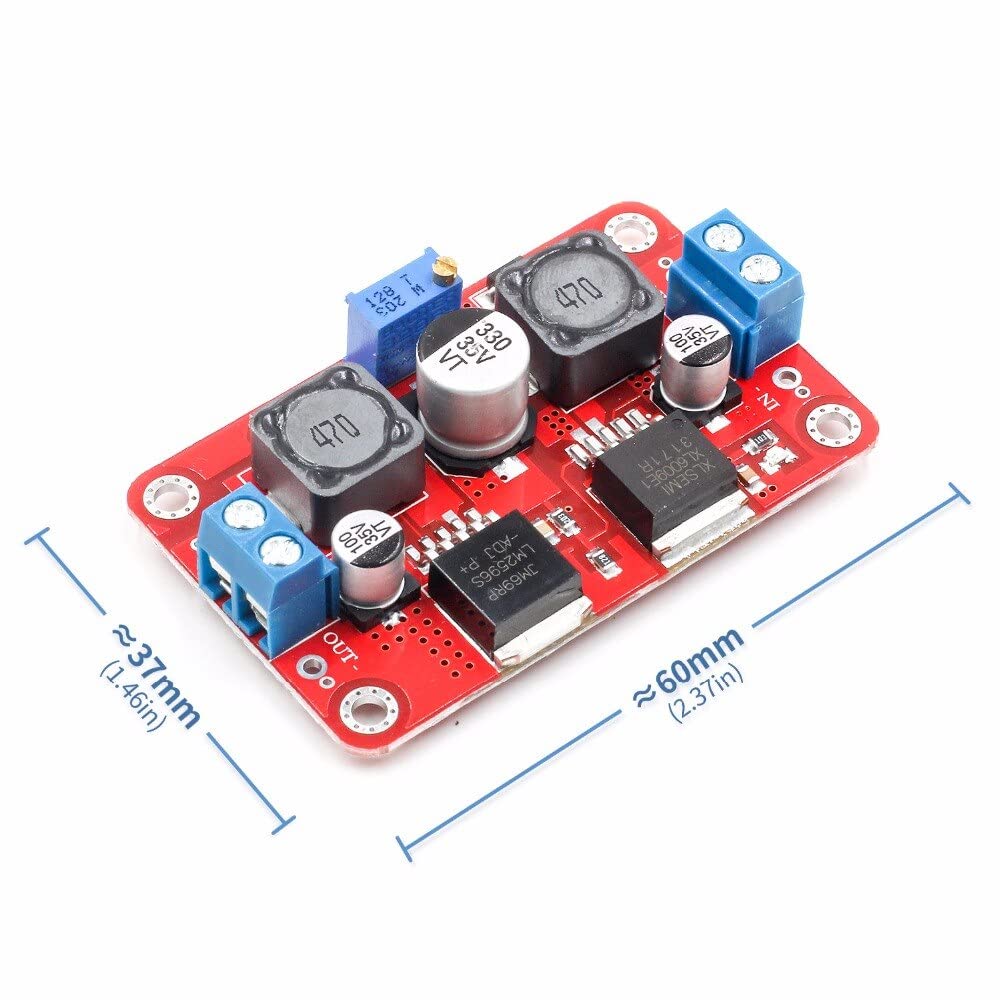

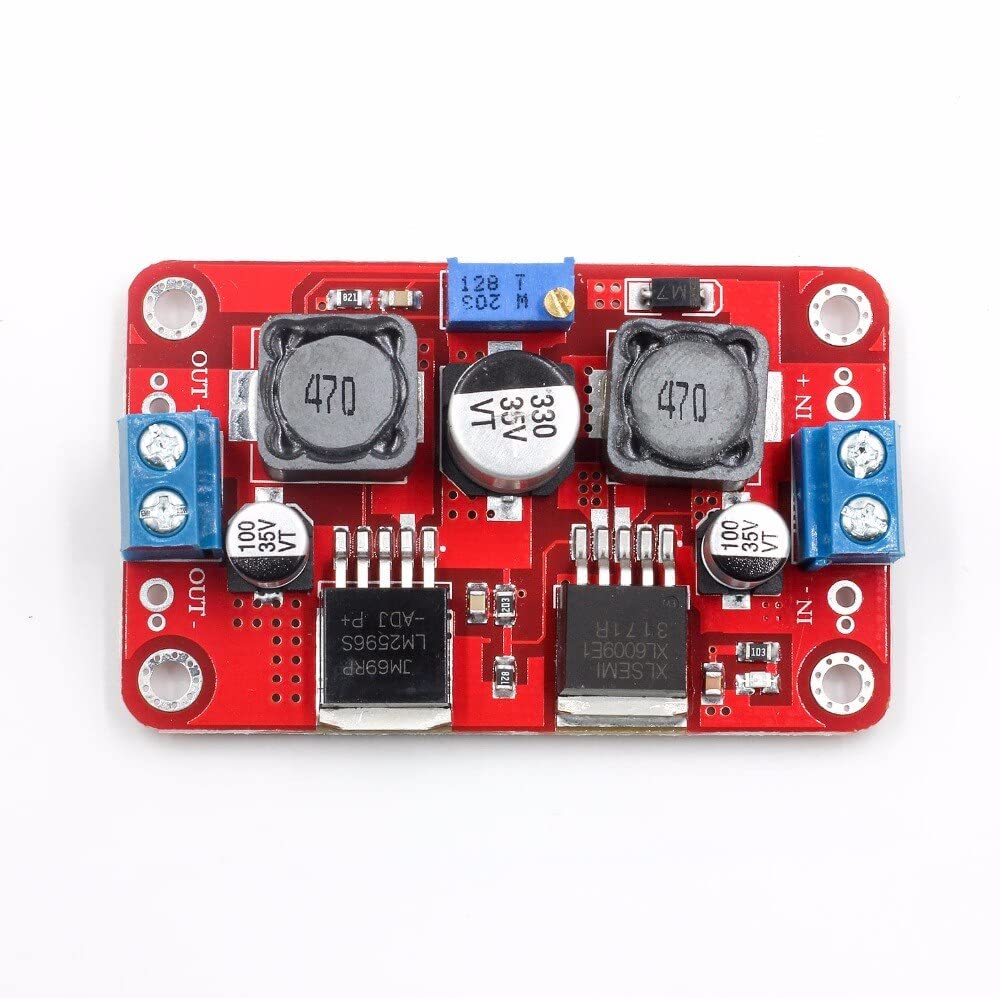

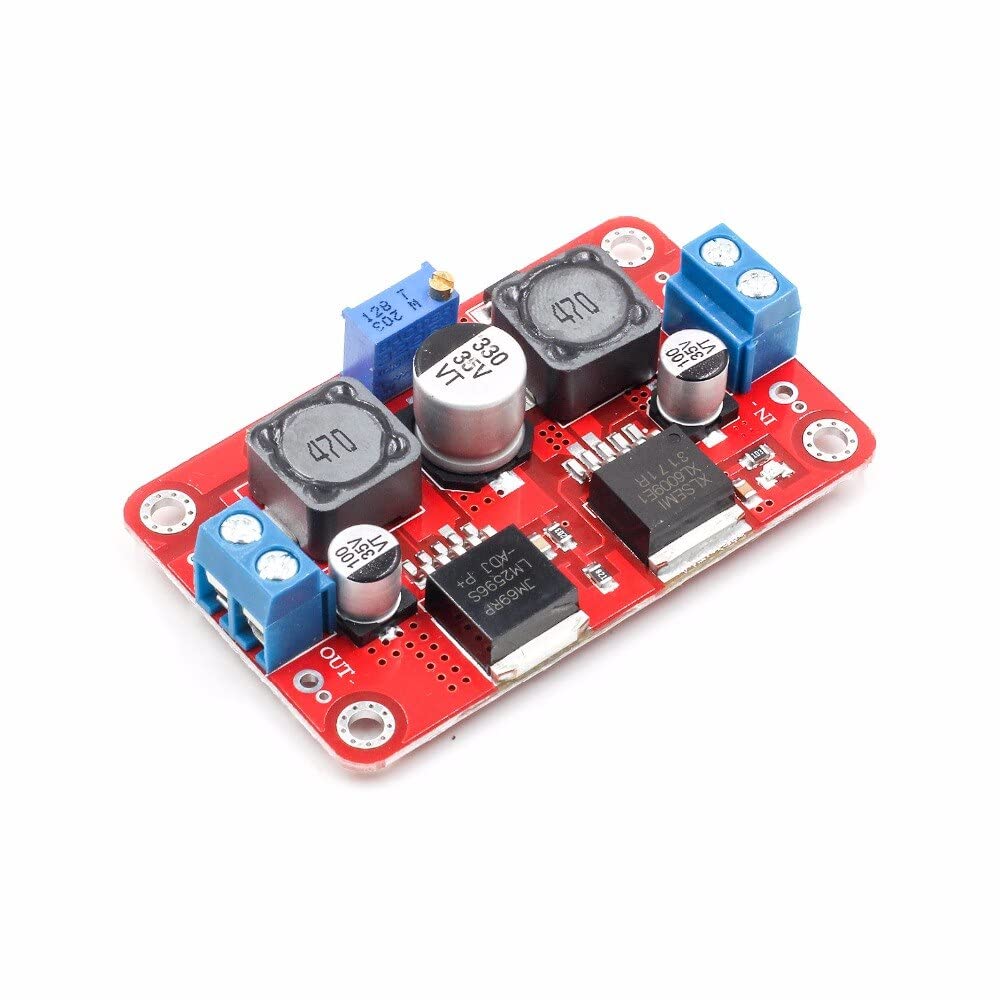

CentIoT - DC-DC Constant Voltage - Automatic Boost and Buck Voltage Converter (XL6009 lm2596S 1.25V-26V To 3.5V-28V 3A)

Brand: CentIoT

Color: Red

Features:

• Module Properties: non-isolated step-up & down module (Boost & Buck)
• Input voltage: 3.5V-28V; Output voltage: (1) continuously adjustable (1.25V-26V); Operating frequency: 400khz; Load current: 5V turn 12V 15mA; Load regulation: ± 0.5%; Voltage regulation: ± 0.5%; Dynamic response speed: 5% 200uS
• Input Current: 3A (MAX), Output Current: 1.5A (MAX)
• Operating temperature: Industrial grade (-40 C to + 85 C) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
• Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency

PartNumber: DC150-XL6009-LM2596

Details: It is non-isolated step-down and step-up, constant voltage module (CV) charging module Applications: Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge. Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit. Connect method: Can solder on the PCB with wire directly Input: IN+ input Positive is, IN- input negative Output: OUT+ output is positive, OUT- output negative Short circuit protection: None (Please install fuse or protection circuit input) Input reverse polarity protection: None, please use reverse protection diode board Output power: natural cooling 20W, plus heat sink 25W (MAX) real power Maximum output power = input voltage conversion efficiency * 3A *conversion efficiency

Model: DC150

Item Condition: New
