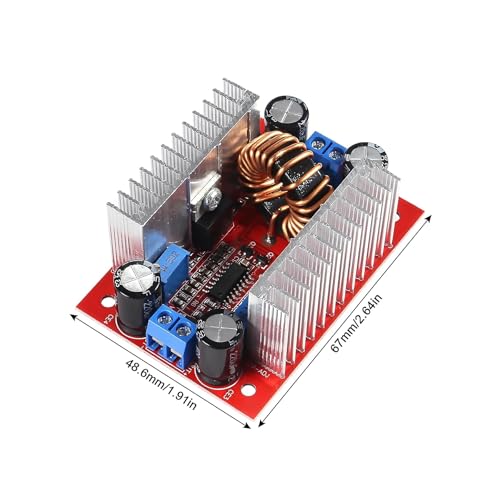

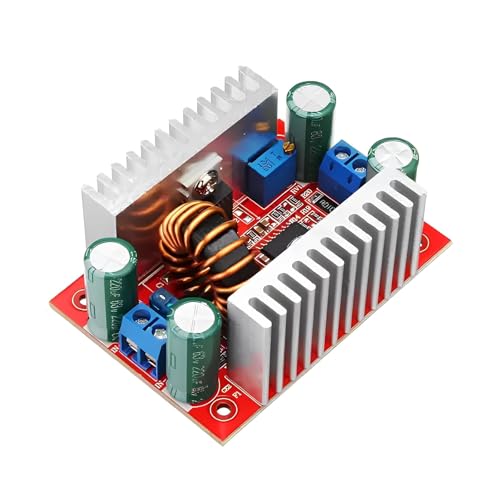

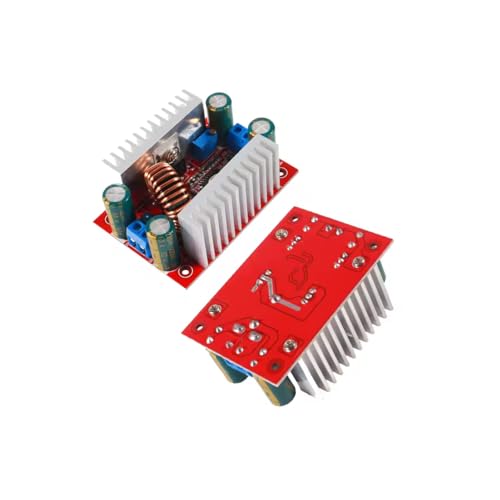

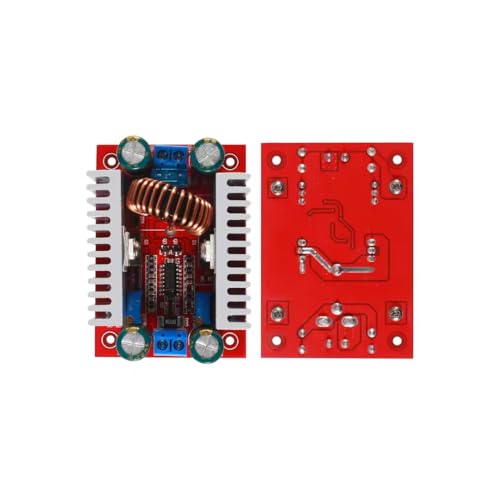

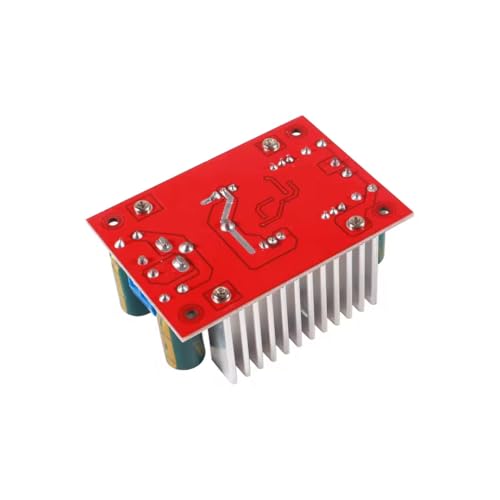

CentIoT - DC-DC CC CV Boost Converter Step-up Module - Constant Current Constant Voltage Power Supply Module

Brand: CentIoT

Features:

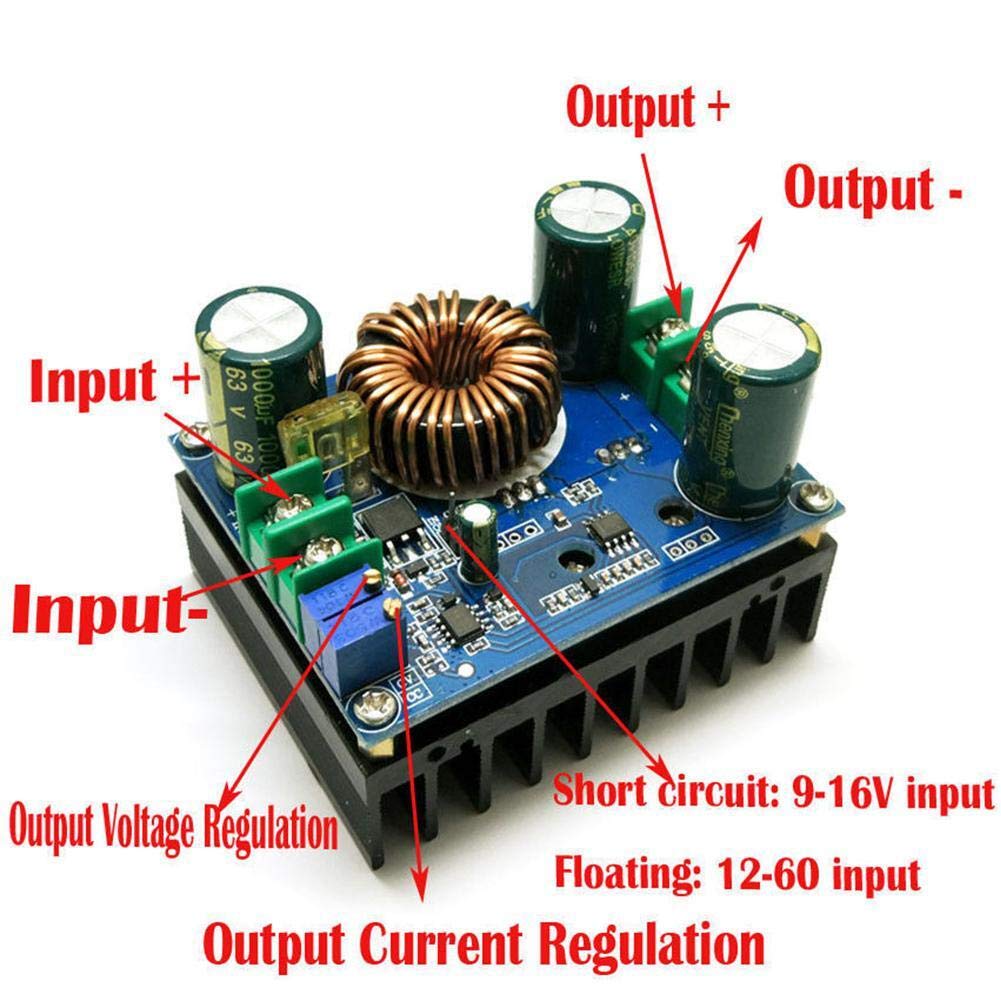

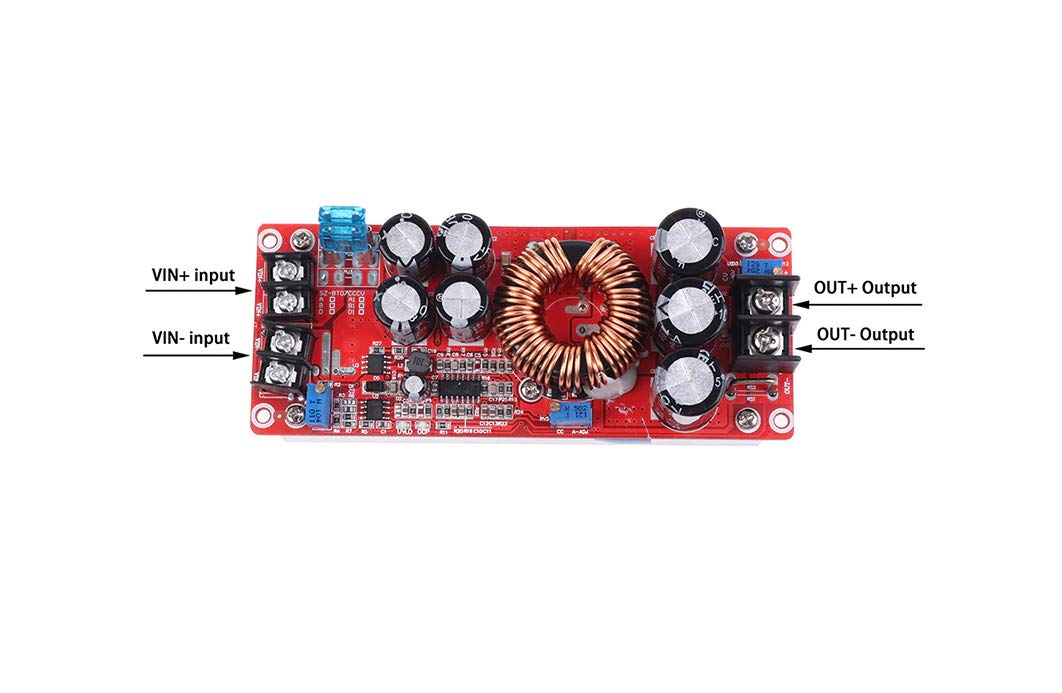

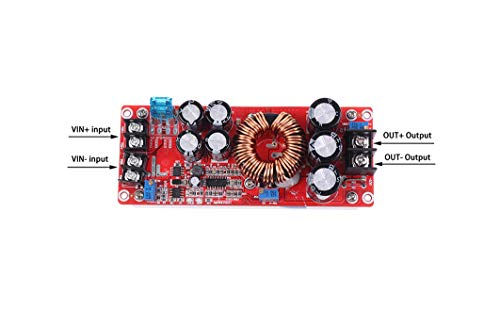

• Input voltage: 8 to 60V; Input Current: 15A MAX, Over 8A replace existing heatsink with bigger heatsink and fan to enhance heat dissipation, 2. Related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be
• Output voltage 12-80V continuously adjustable;

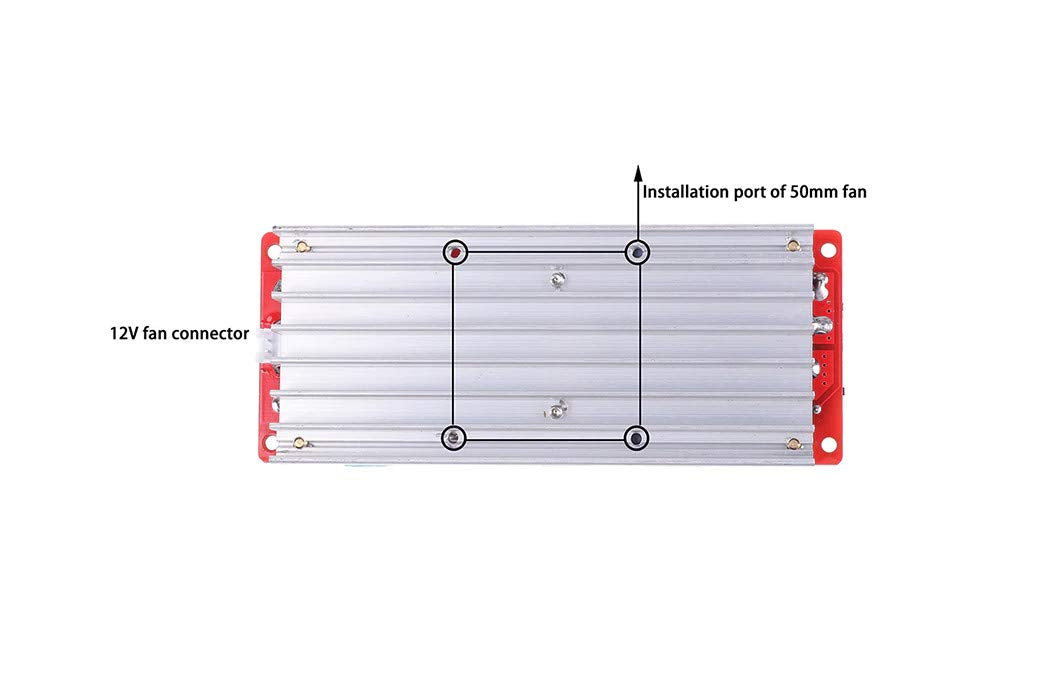

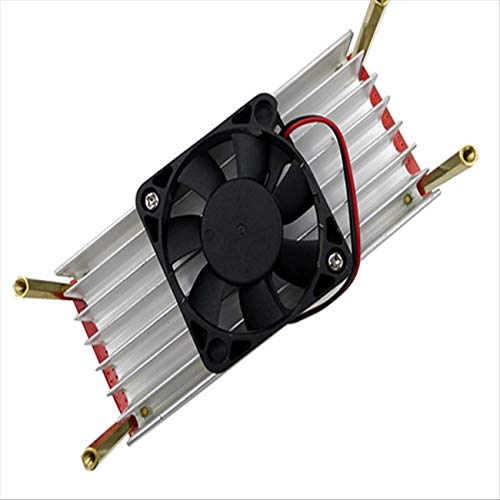

• Output current: 12A MAX, Over 8A replace existing heatsink with bigger heatsink and fan to enhance heat dissipation

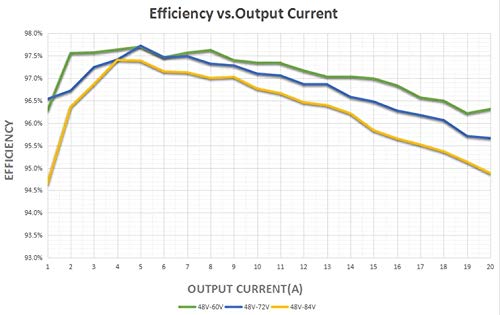

• Output power: 400W, peak 500W, Input voltage * load current (less 5% loss due to efficiency)
• Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, currently exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current.);Short circuit protection:Yes, recommended adding 20A fuse to increase protection.; Input reverse polarity protection: Reverse Input Protection: Yes (150A power MOS reverse protection); Input Low Voltage Protection: Yes (10V-50V adjustable, self-recovery);

PartNumber: DC0XX-CC-CV-BOOST

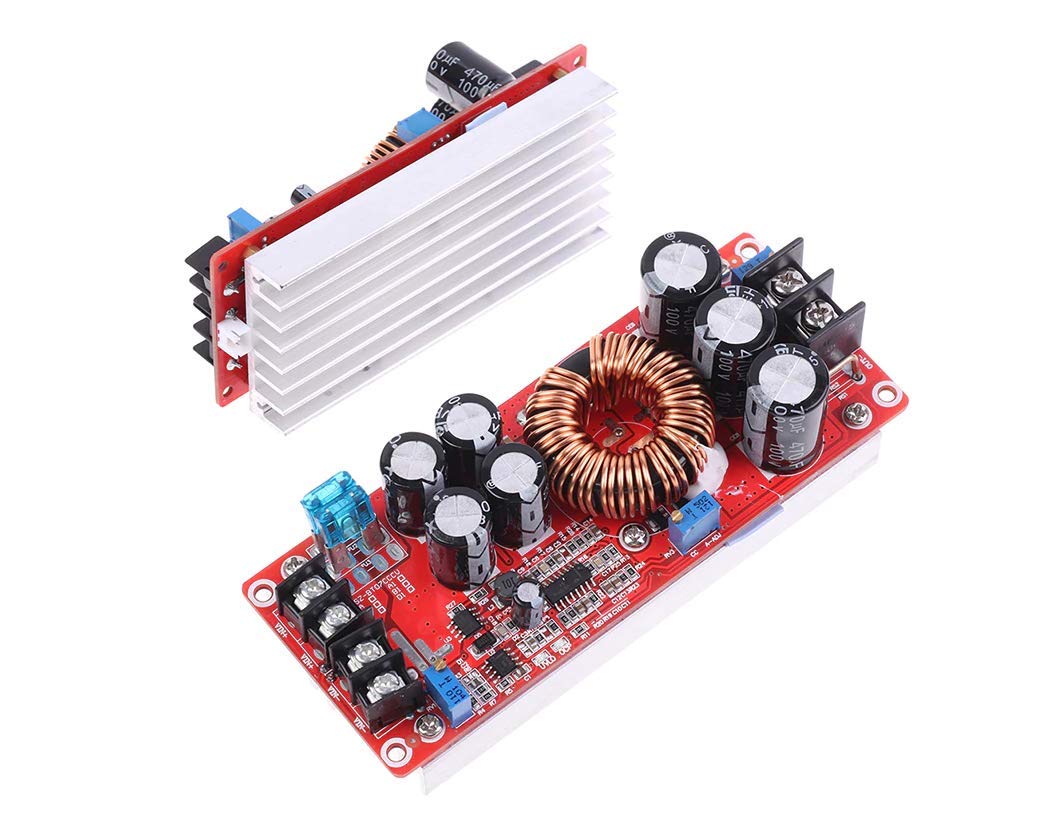

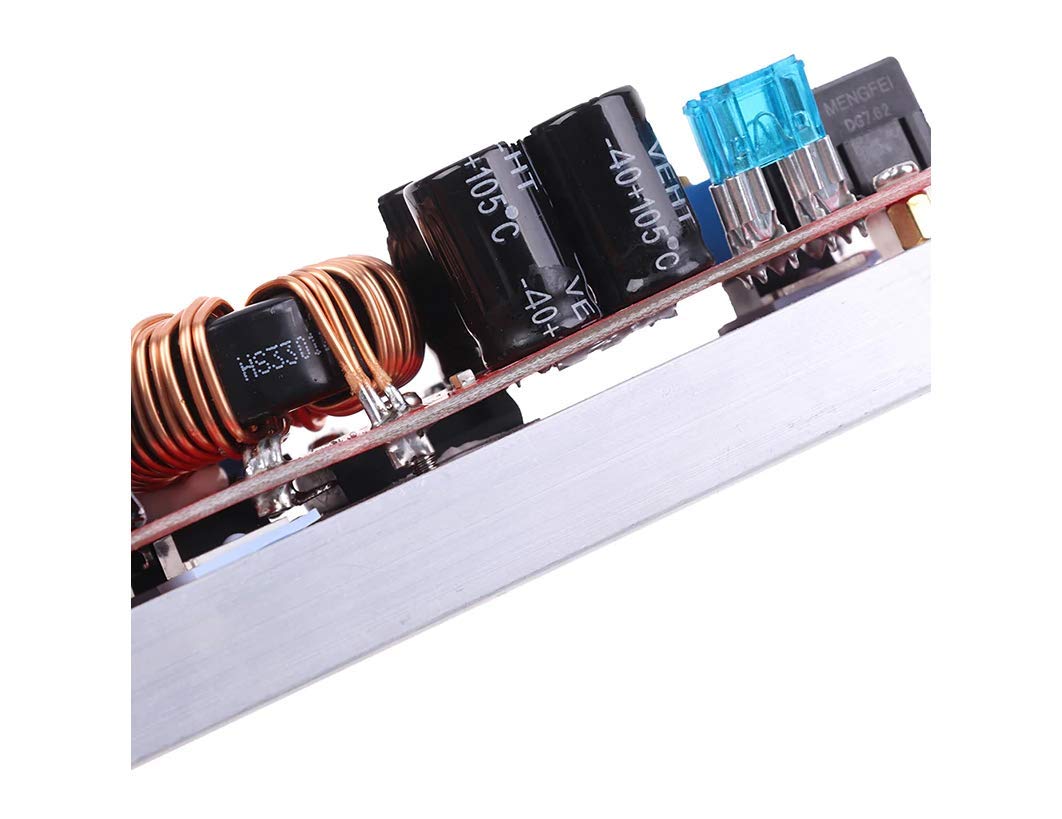

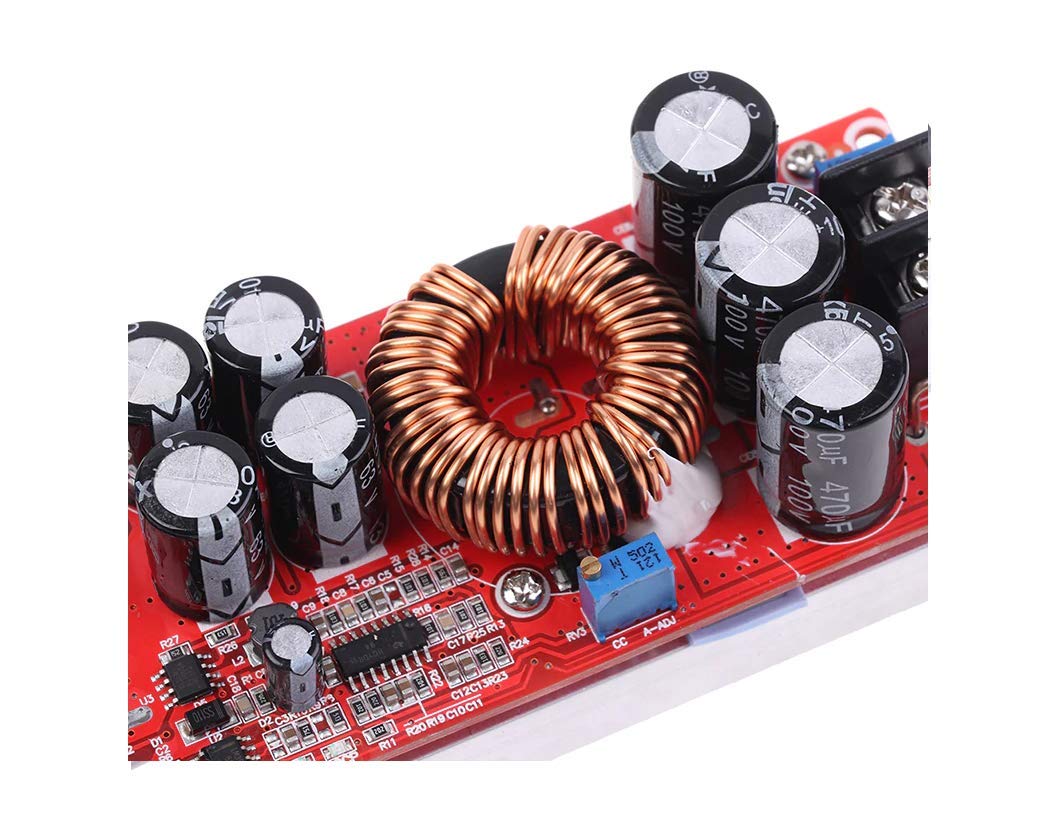

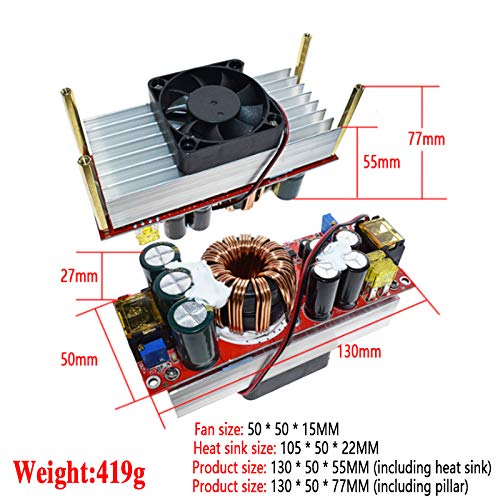

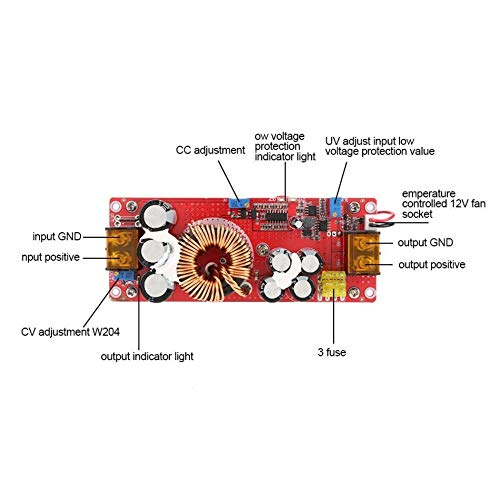

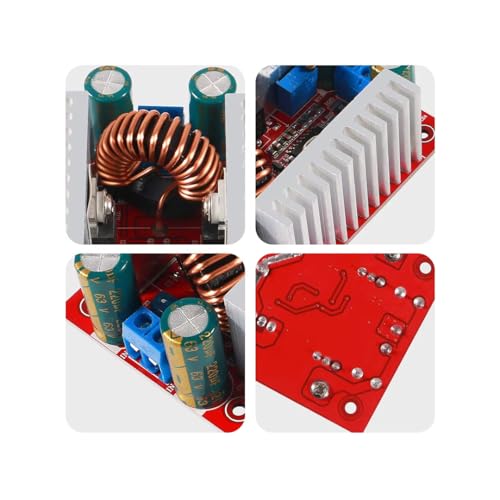

Details: 1. Adopt highly customized radiator, rational design 2. Integrated design of radiator and step-up panel, easy to use and install 3. Using 27mm Kool inductor toroid ring, 1mm double wire wound inductors, high-quality filter capacitor 4. Widely used in adjustable output vehicle power supply DIY, universal car laptop power supply, power supply for electronic devices, etc

Model: DC011-LTC3780
