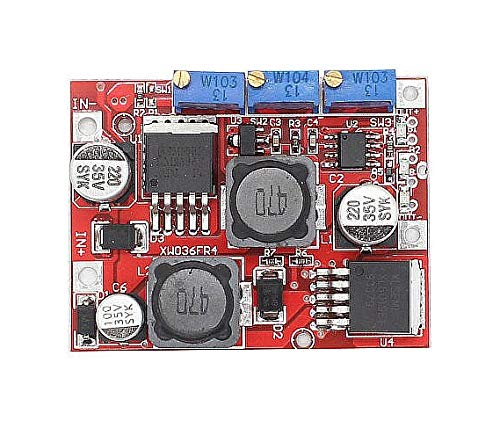

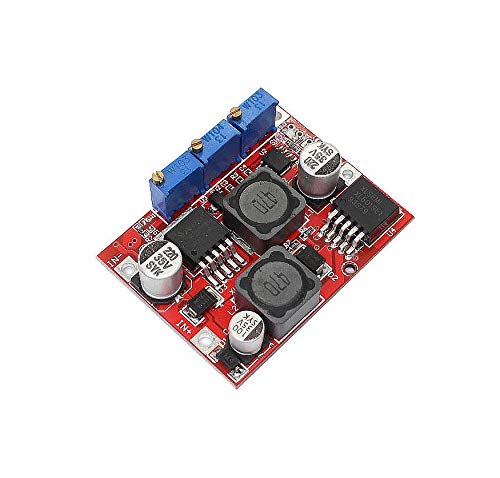

CentIoT - DC-DC CC and CV - Automatic Boost And Buck Voltage Converter (3A LM2596 XL6019)

Brand: CentIoT

Color: Red

Features:

• IC: Buck - LM2596; Boost - XL6019; Input Voltage :4-35V; Output voltage: Continuously adjustable(1.25-25V unload adjust)
• Output current: Max 3A(If more than 15W, please install the heat sink)
• Revolving light current: CC value * (1%-100%), default is 0.1 times; Minimum voltage gap: 2V; Output power: natural cooling 15W
• Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency); Output short circuit protection: Yes, constant current.

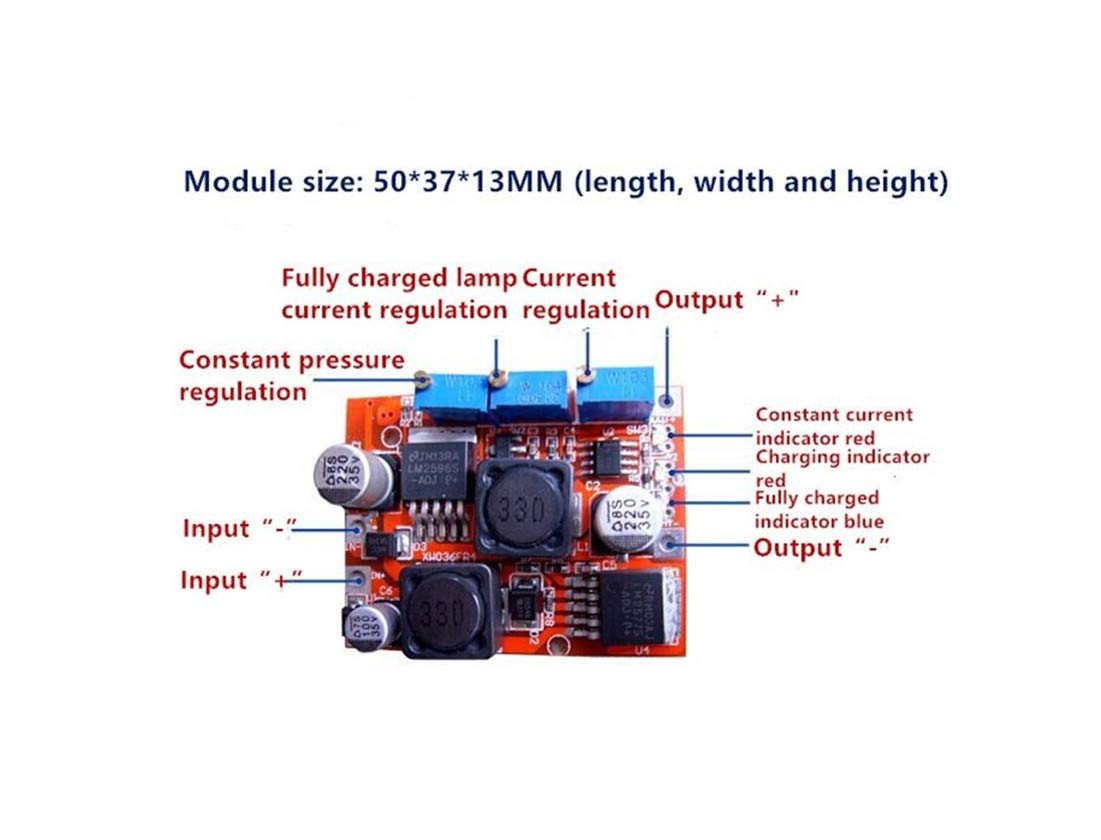

• Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.

PartNumber: DC

Details: Description It is non-isolated step-down and step-up constant current, constant voltage module (CC CV) charging module Applications: High-power LED constant current driver. Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge. Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit. Connect method: Can solder on the PCB with wire directly Input: IN+ input Positive is, IN- input negative Output: OUT+ output is positive, OUT- output negative

UPC: 369639161217

EAN: 0369639161217

Model: DC064-CCCV-BB-2596-6019

Item Condition: New
