Description
Brand: CentIoT
Color: Red
Features:
- Input Voltage :4-35V; Output voltage: Continuously adjustable(1.25-25V unload adjust)
- Output current: Max 3A(If more than 15W, please install the heat sink)
- Revolving light current: CC value * (1%-100%), default is 0.1 times; Minimum voltage gap: 2V; Output power: natural cooling 15W
- Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency); Output short circuit protection: Yes, constant current.

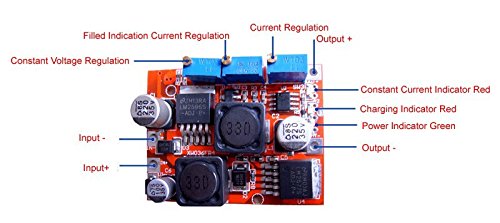

- Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
PartNumber: DC
Details: It is non-isolated step-down and step-up constant current, constant voltage module (CC CV) charging module Applications: High-power LED constant current driver. Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge. Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit. Connect method: Can solder on the PCB with wire directly Input: IN+ input Positive is, IN- input negative Output: OUT+ output is positive, OUT- output negative
EAN: 4604046154435
Model: DC003-LM2596-2577-CC-CV-BUCK-BOOST
Binding: Electronics
Item Condition: New
