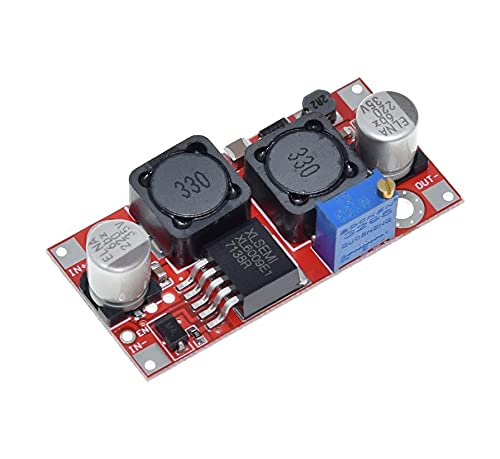

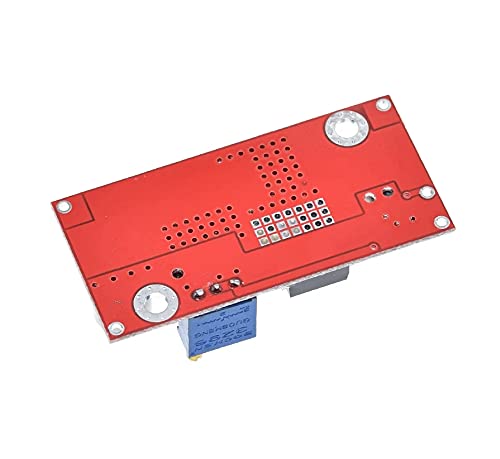

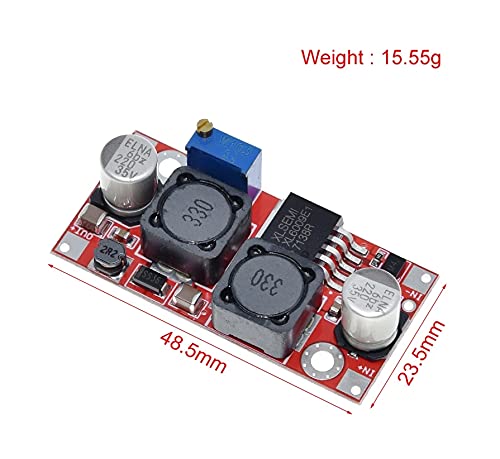

CentIoT - DC-DC Automatic Boost And Buck Voltage regulator converter (XL6009 Red)

Brand: CentIoT

Color: Red

Features:

• Module Properties: non-isolated step-up & down module (Boost & Buck)
• Input voltage: 3.2-32V; Output voltage: (1) continuously adjustable (1.2-35V); Operating frequency: 400khz; Load current: 5V turn 12V 15mA; Load regulation: ± 0.5%; Voltage regulation: ± 0.5%; Dynamic response speed: 5% 200uS
• Input Current: 4A (MAX), Output Current: 1.5A (MAX)
• Operating temperature: Industrial grade (-40 C to + 85 C) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
• Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency

PartNumber: DC087-XL6009-BUK-BST

UPC: 618020767362

EAN: 0618020767362

Model: DC087-XL6009-BUK-BST

Item Condition: New
