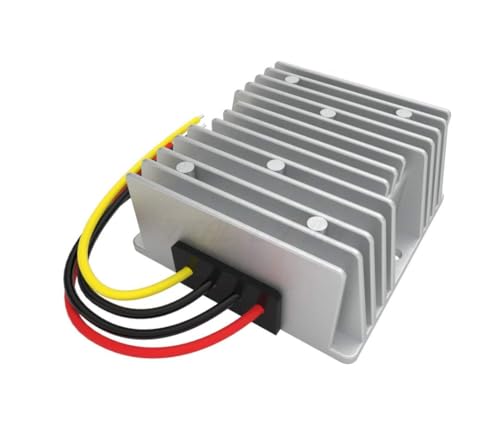

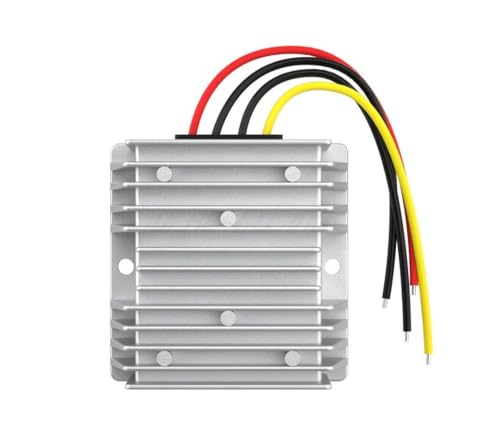

CentIoT - DC-DC 240W IP68 Waterproof Step Down Buck Converter - 30-96VDC input to stable 12VDC upto 20A output

Brand: CentIoT

Color: silver

Features:

• Input voltage range: 30~96VDC; Input rated voltage: 72VDC; Conversion Efficiency:96%
• Output voltage: 12VDC; Output current: 20A; Output rated power: 240W; Output peak power: 125%;
• Voltage regulation: < 1%; Load regulation: < 2%; Ripple (full load test): < 50mV; No-load current: < 20mA; Working Temperature: -40°c ~ +80°c

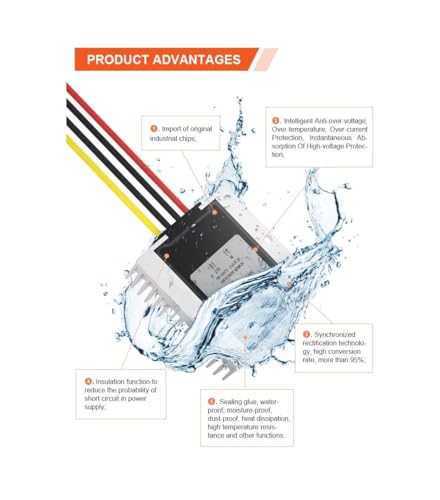

• Waterproof rating: IP68; Protections: Over-load,Over-current,Over-temperature,Short-circuit, Over-voltage optional (can be factory customized contact support)
• Cooling: Free air convection, Aluminium Casing;

PartNumber: DC130-3096-7212S20

Model: DC130-3096-7212S20

Item Condition: New
