CentIoT - DC-DC 240W IP68 Waterproof Step Down Buck Converter - 30-120VDC 110V Input to Stable 24VDC Upto 10A Output

Brand: CentIoT

Color: silver

Features:

• Input voltage range: 30~120VDC; Input rated voltage: 110VDC; Conversion Efficiency:96%
• Output voltage: 24VDC; Output current10A; Output rated power: 240W; Output peak power: 125%;
• Voltage regulation: < 1%; Load regulation: < 2%; Ripple (full load test): < 50mV; No-load current: < 20mA; Working Temperature: -40°c ~ +80°c

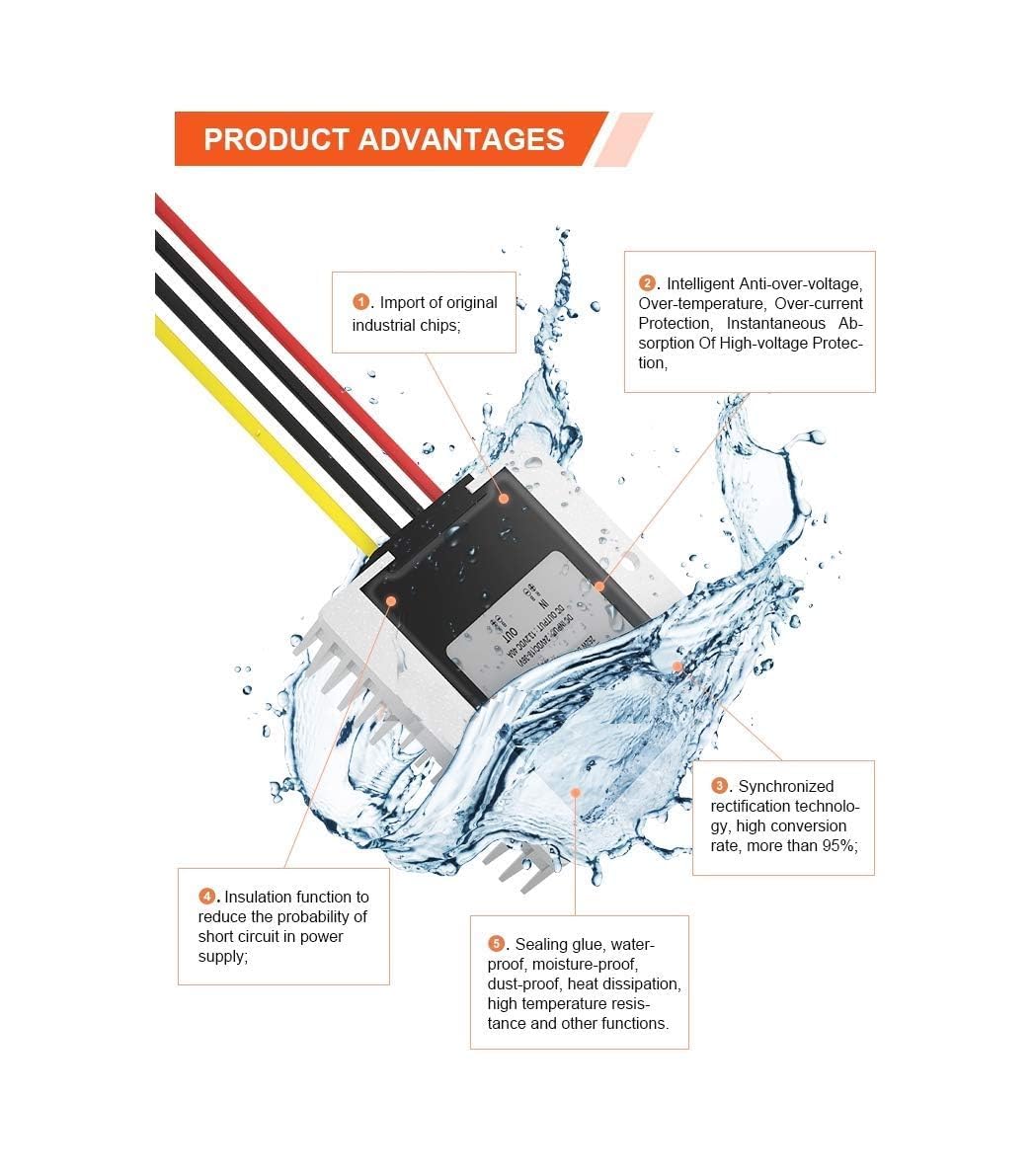

• Waterproof rating: IP68; Protections: Over-load,Over-current,Over-temperature,Short-circuit, Over-voltage optional (can be factory customized contact support)

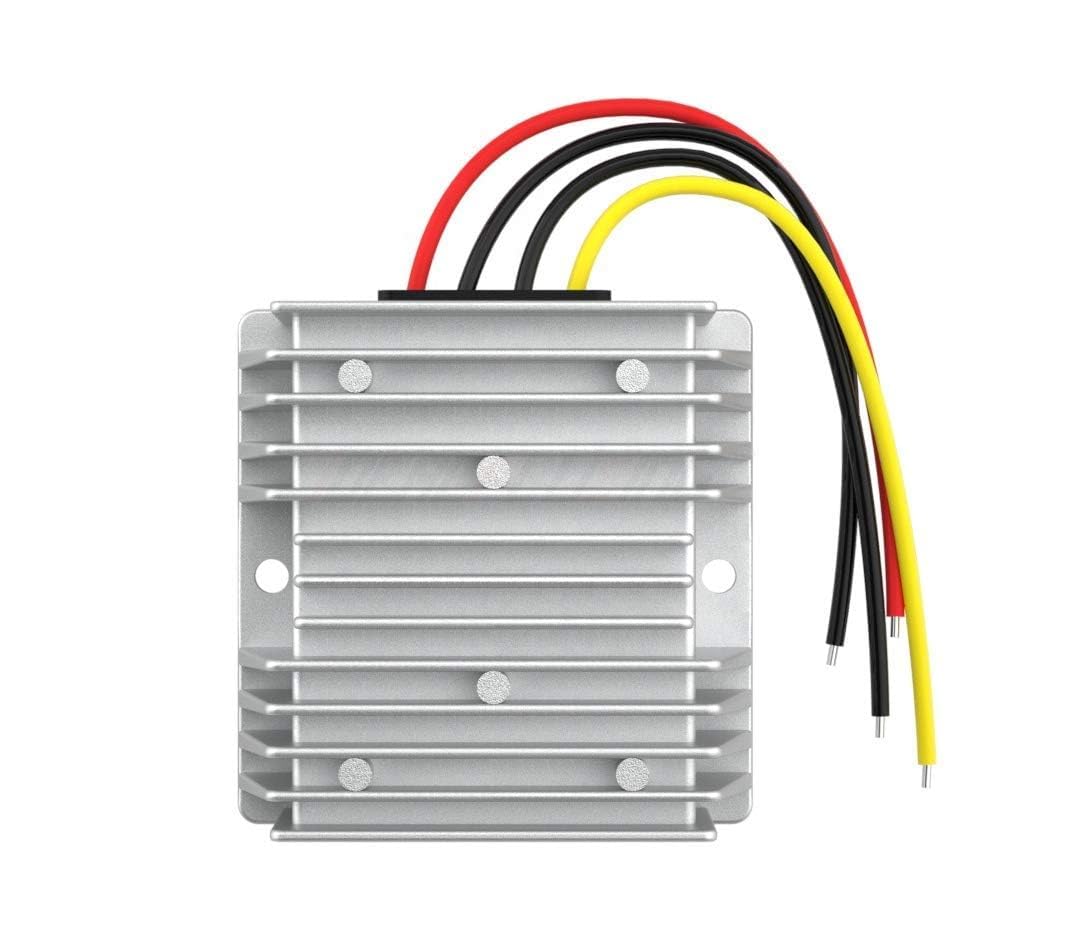

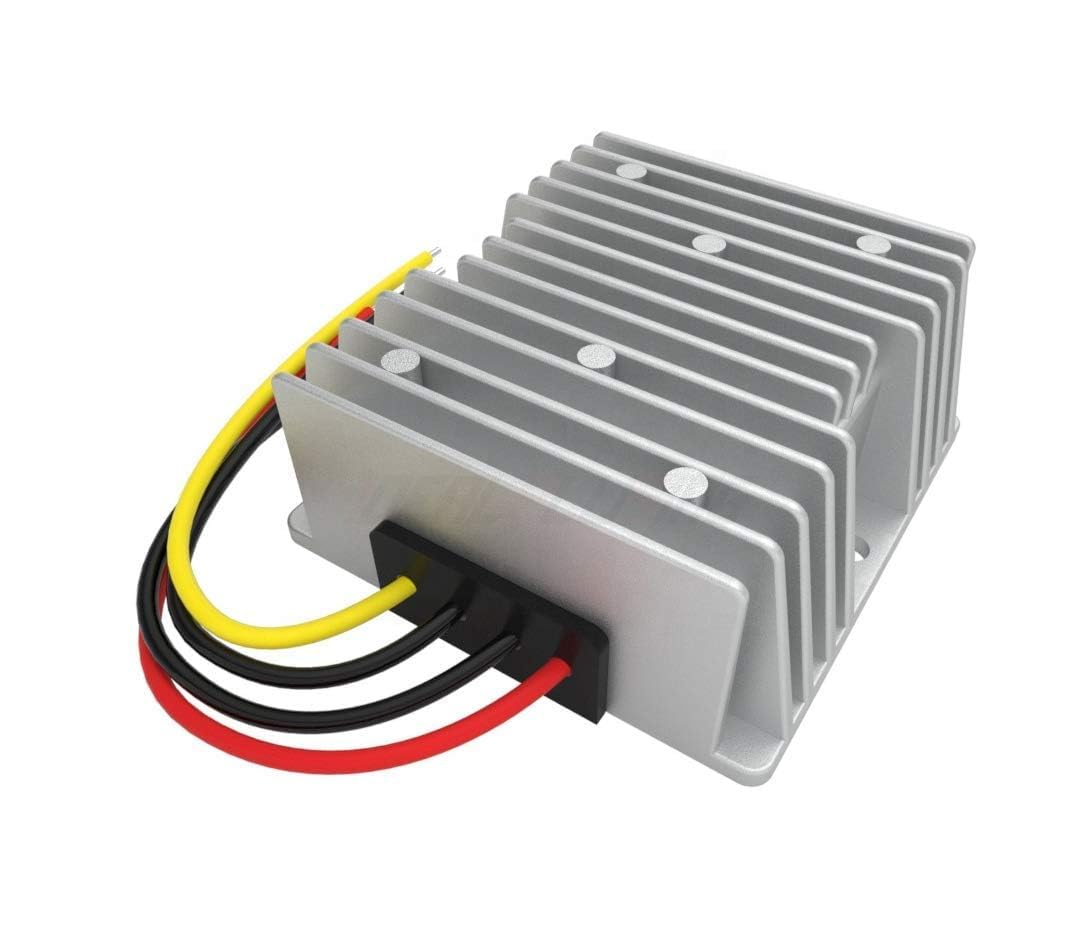

• Cooling: Free air convection, Aluminium Casing; Certifications: CE, RoHS

PartNumber: DC186-30120-110S2410

Details: 1. DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: boost DC/DC converters, boost DC/DC converters and boost DC/DC converters. 2. Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. 3. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.

Model: DC186-30120-110S2410

Item Condition: New
