CentIoT - DC-DC 120W IP68 Waterproof Step Down Buck Converter - 30-60VDC 48VDC input to stable 12VDC upto 10A output

Brand: CentIoT

Color: silver

Features:

• Input voltage range: 30~60VDC; Input rated voltage: 48VDC; Conversion Efficiency:96%
• Output voltage: 12VDC; Output current: 10A; Output rated power: 120W; Output peak power: 125%;
• Voltage regulation: < 1%; Load regulation: < 2%; Ripple (full load test): < 50mV; No-load current: < 20mA; Working Temperature: -40°c ~ +80°c

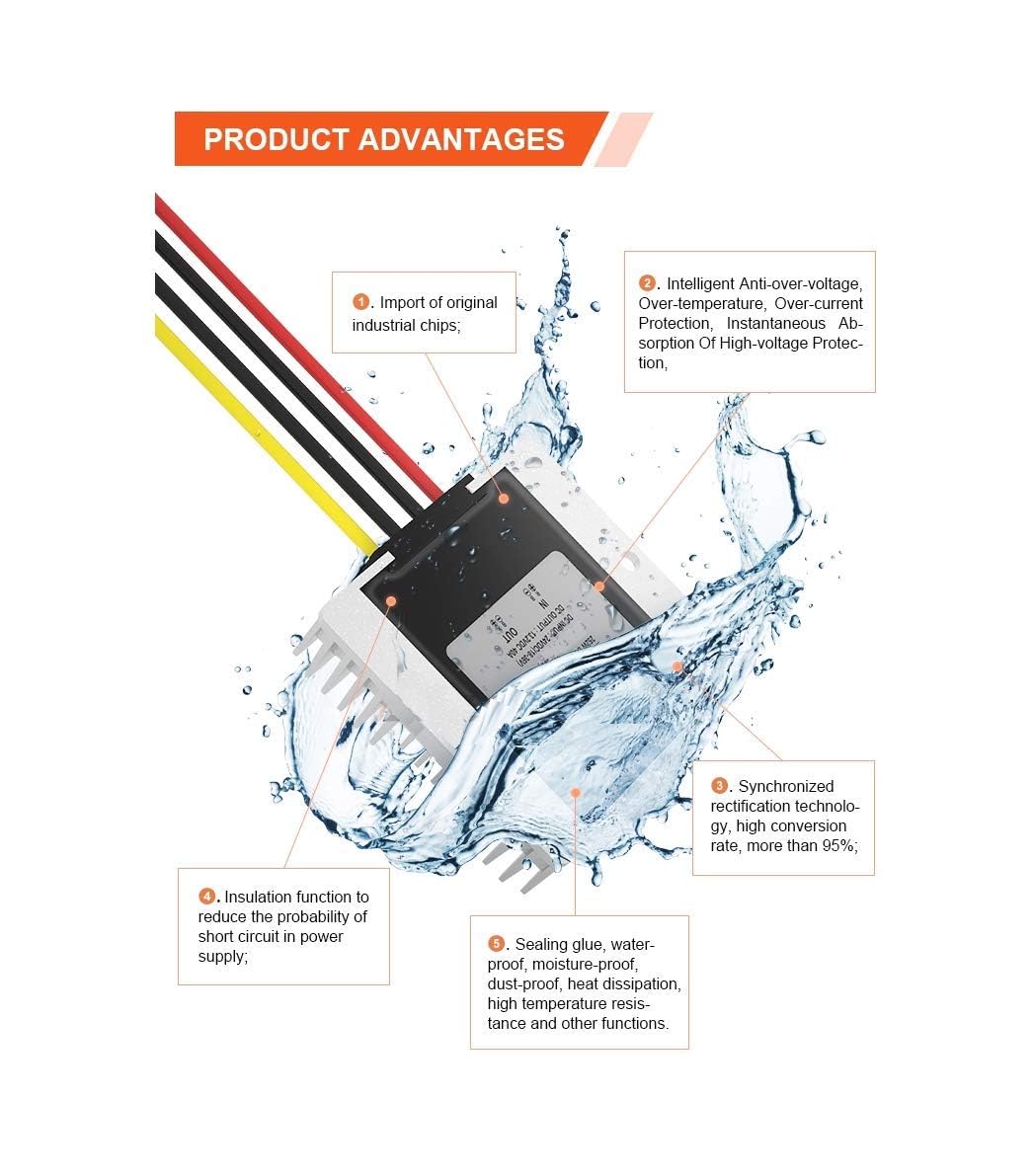

• Waterproof rating: IP68; Protections: Over-load,Over-current,Over-temperature,Short-circuit, Over-voltage optional (can be factory customized contact support)
• Cooling: Free air convection, Aluminium Casing; Certifications: CE, RoHS

PartNumber: DC143-3060-48S1210

Model: DC143-3060-48S1210

Item Condition: New
