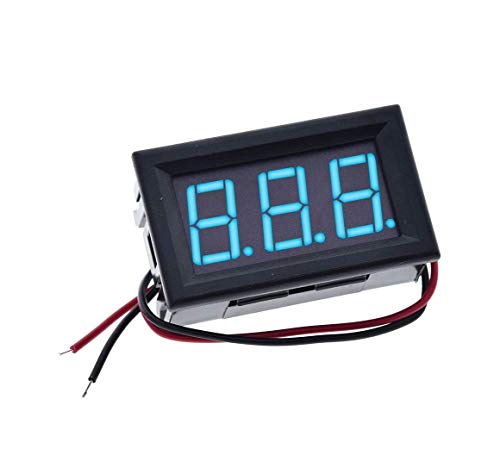

CentIoT - DC 4.5-30V 0.56 inch 2 wire Panel Voltmeter Tester with Shell (Blue 2wire)

Brand: CentIoT

Color: Blue

Features:

• Measuring range: 4.5V-30.0V; Highest input: DC30.0V. Note: Input voltage higher than 30V may be permanently damaged!
• Power supply range: Red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V
• Allowable error: ± 1%; error is ± 0.3V when greater than or equal to 10V; error ± 0.10 when less than 10V; Lead length: 20cm
• Input resistance: > 100K; Working current: Red <23mA, green <18mA, blue <13mA
• Refresh speed: About 300mS once; Display method:Three 0.56 "LED digital tube

PartNumber: ME18-0.56-30V-Blue

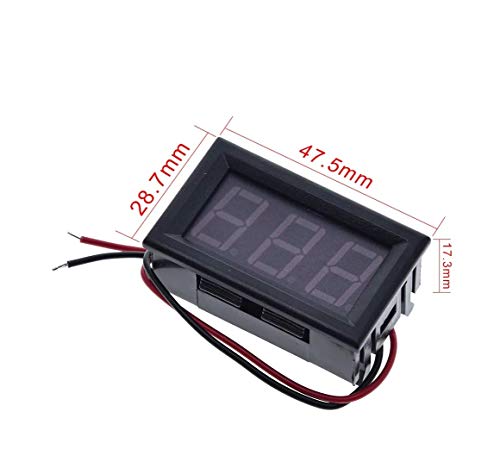

Details: When the voltage is under 10V, there will be 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1 This is two wire model, self-powered version and supports Reverse polarity protection use the same power supply which is being measured to power the meter.Mounting holes: 46 x 27 mmOperating temperature -10 ℃ ~ 65 ℃

UPC: 679043306938

EAN: 0679043306938

Model: M0018-0.56-30V-Blue

Item Condition: New
