CentIoT - DC 0-30V 0.56 inch 3 wire Panel Voltmeter Tester with Shell (Blue)

Brand: CentIoT

Color: Blue

Features:

• Measuring range: 0.00V-30.0V; Highest input: DC30.0V. Note: Input voltage higher than 30V may be permanently damaged!
• Power supply range: Blue DC5.00-30.0V: Display Color: Blue
• Allowable error: ± 1%; error is ± 0.3V when greater than or equal to 10V; error ± 0.10 when less than 10V; Lead length: 20cm
• Input resistance: > 100K; Working current: Blue <13mA
• Refresh speed: About 300mS once; Display method:Three 0.56 "LED digital tube

PartNumber: ME15-0.56-30V-Blue

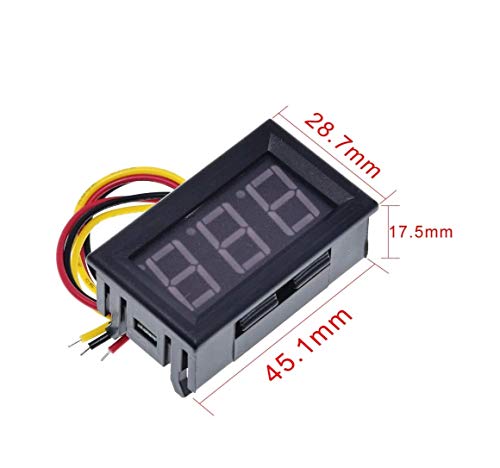

Details: When the voltage is under 10V, there will be 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1 This is three wire model, can be operated with separate power supply or use the same power supply which is being measured to power the meter. Mounting holes: 46 x 27 mm Operating temperature -10 ℃ ~ 65 ℃

UPC: 679043306907

EAN: 0679043306907

Model: M0015-0.56-30V-Blue

Item Condition: New
