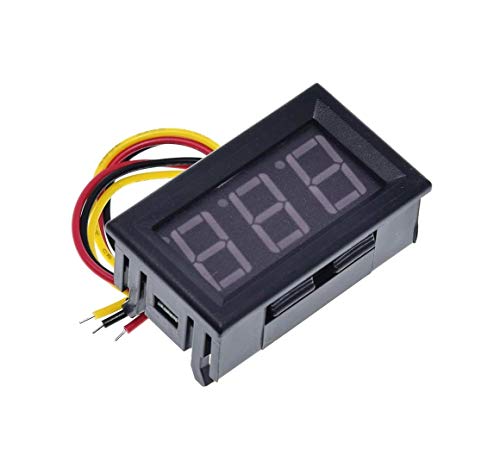

CentIoT - DC 0-100V 0.56 inch 3 wire Panel Voltmeter Tester with Shell (Green 100V 3 Wire)

Brand: CentIoT

Color: Green

Features:

• Measuring range: 0.00V-100V; Highest input: DC100V. Note: Input voltage higher than 100V may be permanently damaged!
• Power supply range for meter: Green DC4.70-30.0V
• Allowable error: ± 1%; error is ± 0.3V when greater than or equal to 10V; error ± 0.10 when less than 10V; Lead length: 20cm
• Input resistance: > 100K; Working current: Green <18mA

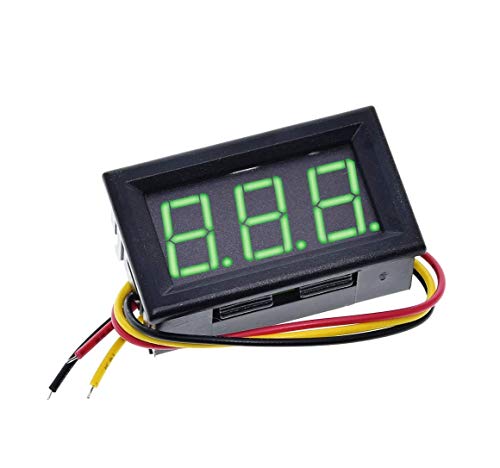

• Refresh speed: About 300mS once; Display method:Three 0.56 "LED digital tube

PartNumber: ME21-0.56-100V-3P-Green

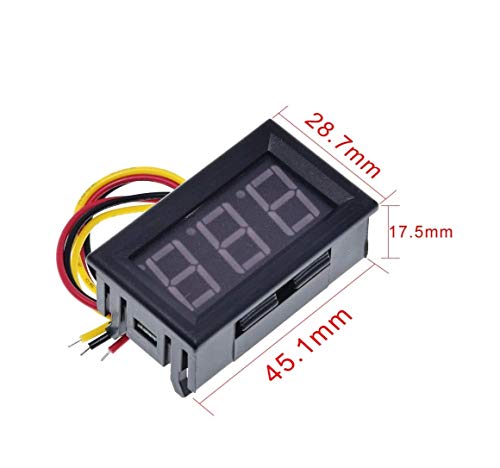

Details: Description When the voltage is under 10V, there will be 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1 This is three wire model, can be operated with separate power supply or use the same power supply which is being measured to power the meter. Mounting holes: 46 x 27 mm Operating temperature -10 ℃ ~ 65 ℃ Caution: The meter can measure upto 100V, however the power supply to the meter is limited to 30V, please ensure the power supply to the meter do not exceed 30V

UPC: 679043306969

EAN: 0679043306969

Model: M0021-0.56-100V-3P-Green

Item Condition: New
