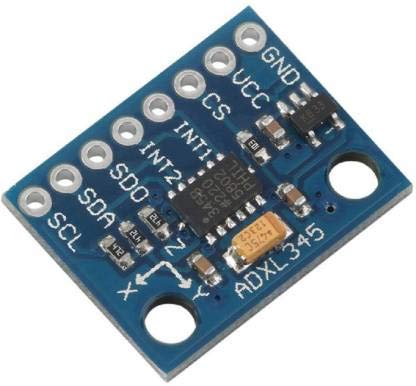

CentIoT - CJMCU-105 ADXL345 Digital Three-axis Acceleration of Gravity tilt Gyroscope Sensor Module

Brand: CentIoT

Features:

• Model: CJMCU-105
• IC: ADXL345 3 Axis
• Supply voltage: DC 3V-5V power supply
• Communication mode: I2C/SPI 2 alternative ways
• Size: 14mm*19mm; Net weight: about 0.9g

PartNumber: SE172-CJMCU-105-ADXL345

Release Date: 02-06-2019

Details: The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is acces-sible through either a SPI (3- or 4-wire) or I2C digital interface. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing appli-cations, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent pending 32-level first in, first out (FIFO) buffer can be used to store data to minimize host processor intervention. Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.

EAN: 4604046158495

Model: GY

Binding: Electronics

Item Condition: New
