CentIoT - Capacitive Touch LED Dimmer PWM Control Switch Module for Indoor LED DIY Automotive Lights Dimming Refit

Brand: CentIoT

Color: Blue

Features:

• Installation: without direct contact with copper foil, dimming can be carried out by more than 3mm acrylic glass or plastic.
• Voltage range:2.4-5V; Maximum output current:500MA; Hole distance:16MM; Aperture:2.5MM
• Function: single line touch, using the principle of capacitive touch, sensitive touch. By default, it has switch function, dimming function and stepless dimming function of LED touch with brightness memory. Turn on the light slowly, turn off the light slowly dark, effectively avoid eye irritation.

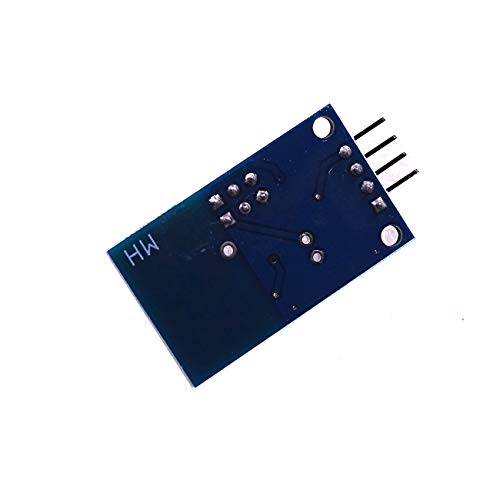

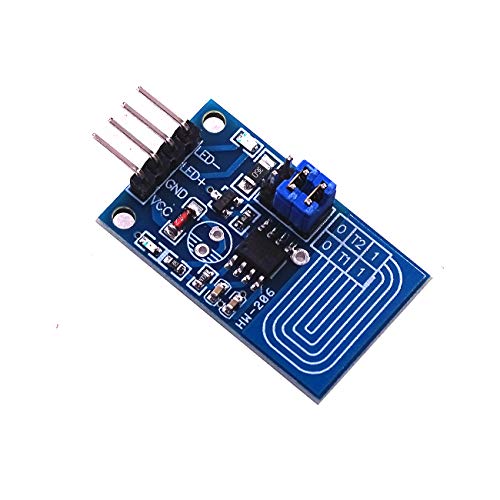

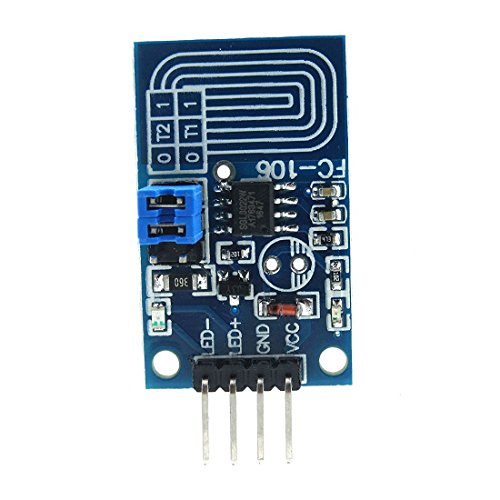

• Wiring mode: in PCB board (VCC, GND) is power input, (LED +, led -) is led lamp positive and negative (fingerprint) is touch area, and it can also be wired out (note that the wiring should not be too long, after the outgoing line, it is recommended to use a small copper sheet as the sensing area), and the copper sheet area is recommended to be 2x3cm left and right. The copper foil module on the board pastes one side of the copper foil on the shell side.
• Dimming mode: stepless PWM dimming; Initial powered on, the lamp is off.

PartNumber: SWT006-PWM-CV-DIMMER

UPC: 679043314025

EAN: 0679043314025

Model: SWT006-PWM-CV-DIMMER

Item Condition: New
