Description
Brand: CentIoT
Features:

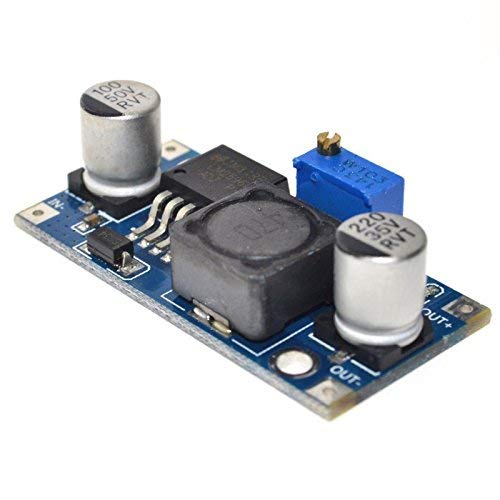

- This DC to DC Step-Down Adjustable Power Supply Module is based on the LM2596 switching regulator
- Input voltage: DC 3.2V to 40V (input voltage must be higher than the output voltage above 1.5V. Could not boost)

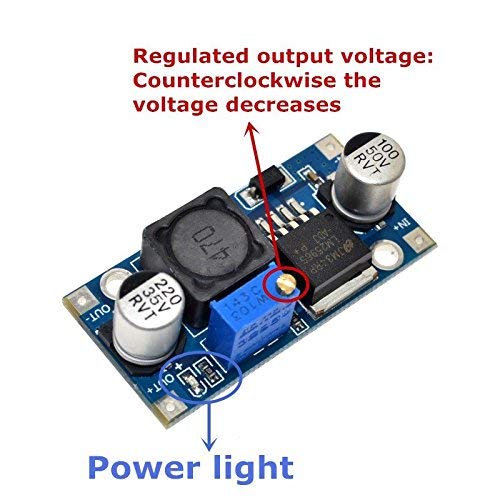

- Output Voltage: DC voltage from 1.25V to 35V continuously adjustable, high efficiency (92%) of the maximum output current of 3A.
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- The measured 12V input, 5V output current is 1A load regulation of less than 1%
PartNumber: DC001-LM2596-SMD-LED
Release Date: 05-12-2020

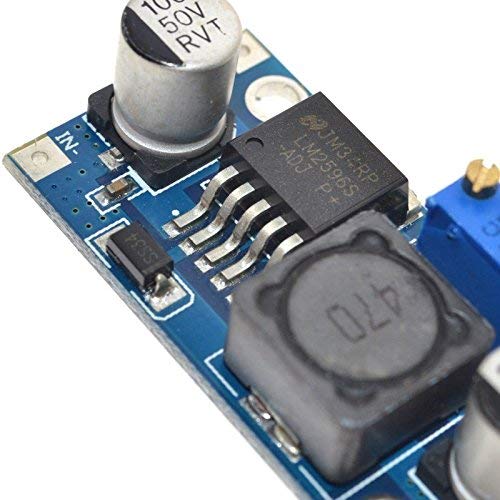

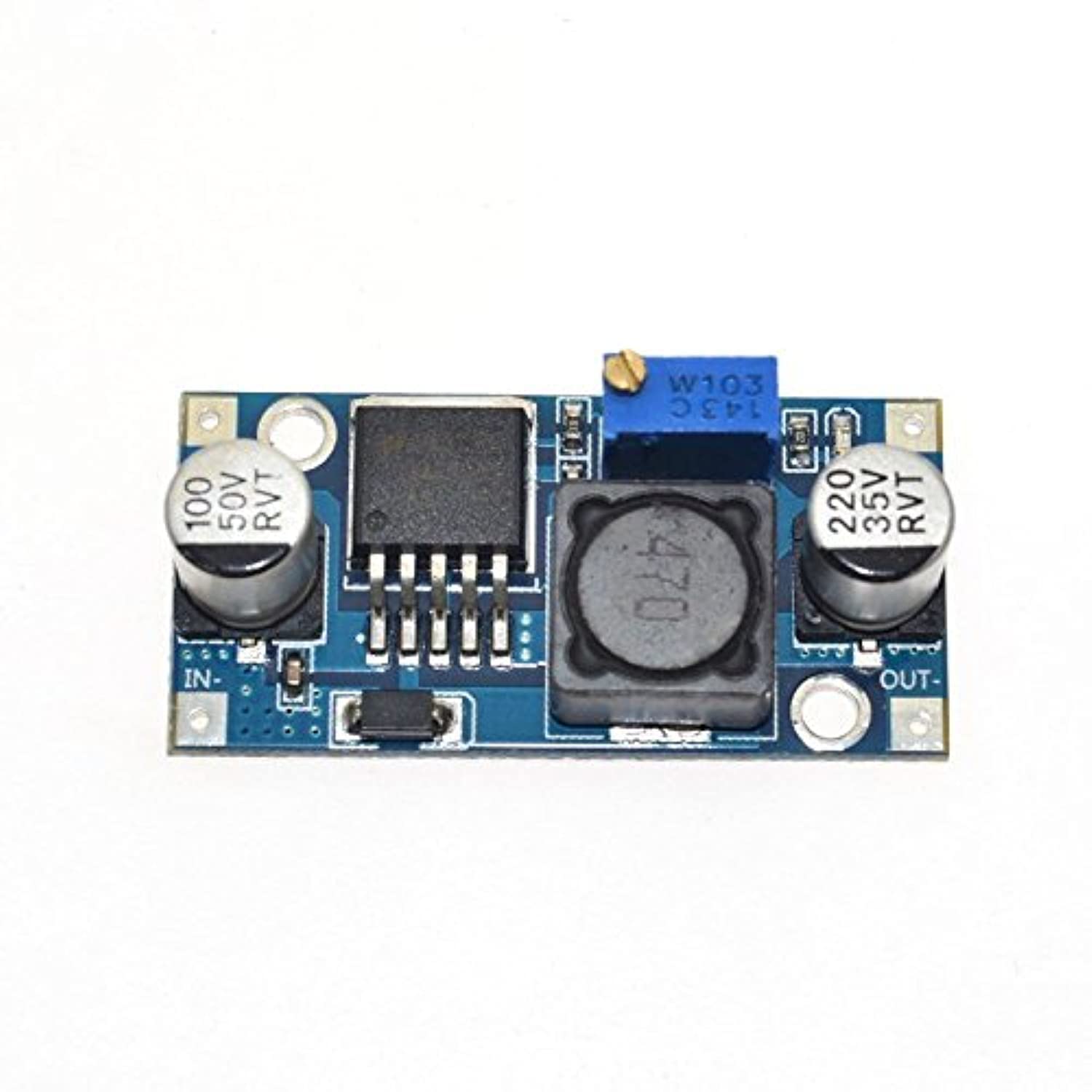

Details: This is high performance DC to DC Step Down Adjustable Power Supply Module. Based on Newly developed LM2596S Wide range Switching Regulator IN + input positive-IN-input negative. The OUT + output the positive OUT-output negative Specification: 1. Input voltage range: DC 3.2V to 40V (input voltage must be higher than the output voltage above 1.5V. Could not boost) 2. Output voltage range: DC voltage from 1.25V to 35V continuously adjustable, high efficiency (92%) of the maximum output current of 3A 3. Conversion efficiency: 92% (the highest) 4. Output ripple: 5. Switching frequency: 65KHz 6. Operating Temperature: -45 to +85 deg C 7. Size: 43mm * 21mm * 14mm (L * W * H) 8. Note: This is a step-down module, the input voltage must higher than the output voltage
UPC: 618020766914
EAN: 0618020766914
Model: DC001-LM2596-SMD-LED
Binding: Electronics
Item Condition: New
