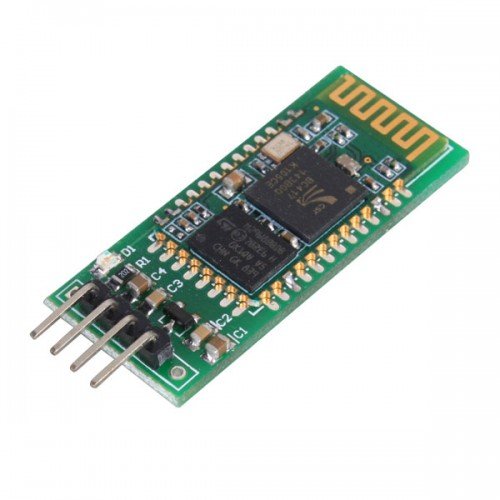

CENTIoT Bluetooth Transceiver Module With TTL Output HC-06

Brand: CentIoT

Features:

• Input power supply between 3.3~6V, not to exceed 7V
• The devices does not have power supply reversing func, so please connect power supply with care
• We advise to install "Bluetooth master module" and use this device as slave
• This module is an Upgrade Of Hc05 Kg036

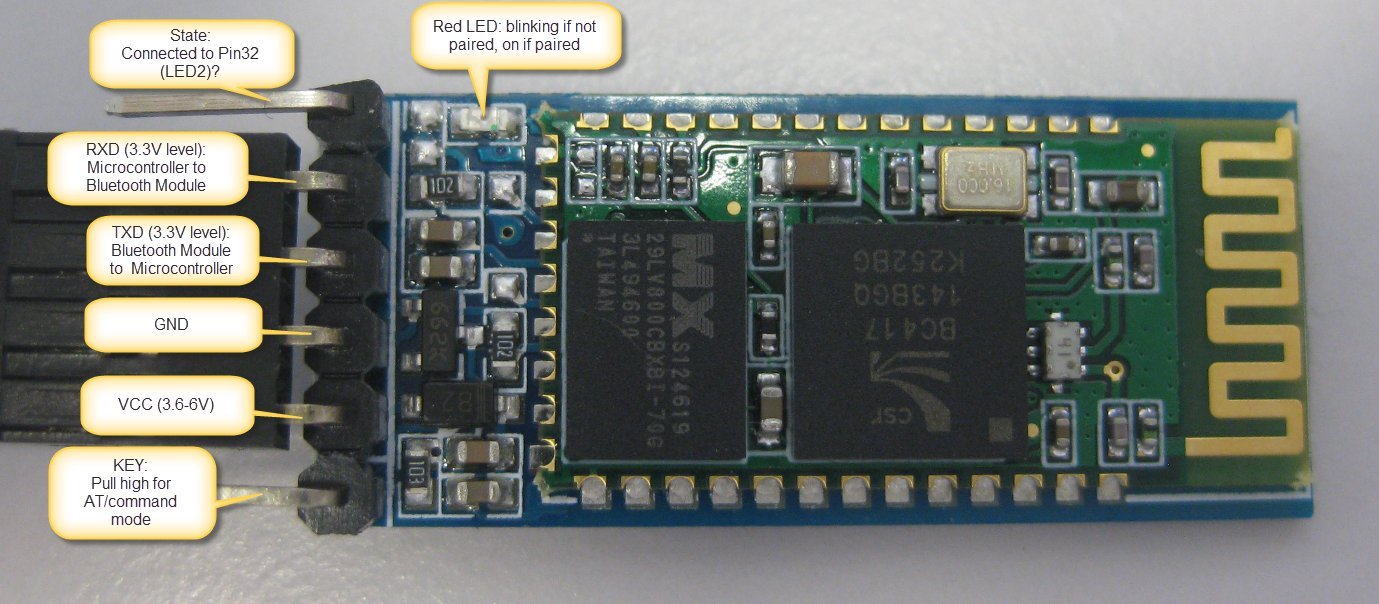

• The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse"; when bluetooth "connected", output "High level", we can determine the states from "MCU"

PartNumber: BL002-HC06

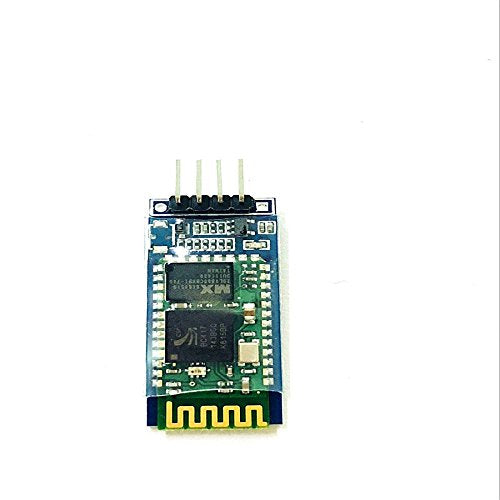

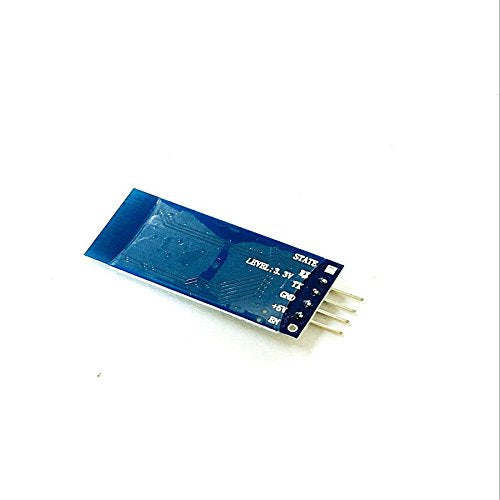

Details: It's HC-06 Bluetooth module Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer. Works with any USB Bluetooth adapters. Default Baud Rate: 9600,8,1,n. Built in antenna. Coverage up to 30ft. Bluetooth version: V2.0+EDR Operating voltage: 3.3V Default Baud Rate: 9600,8,1,n. Signal coverage: 30ft Item size: 4.3 * 1.6 * 0.7cm Item weight: 3g Package size: 9 * 3 * 1cm Package weight: 8g Commercial Series: Bluetooth module board Series With LED indicator light, use 150mA and 3.3V regulation chip. With VCC.GND.TXD.RXD foot for the Bluetooth With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach) Compatible with bluetooth master module".slave module"or master-slave(whole) module. Input voltage: 3.3~6V Size: 1.55cm*3.98cm

UPC: 618020767041

EAN: 0618020767041

Model: BL002-HC06

Binding: Electronics

Item Condition: New
