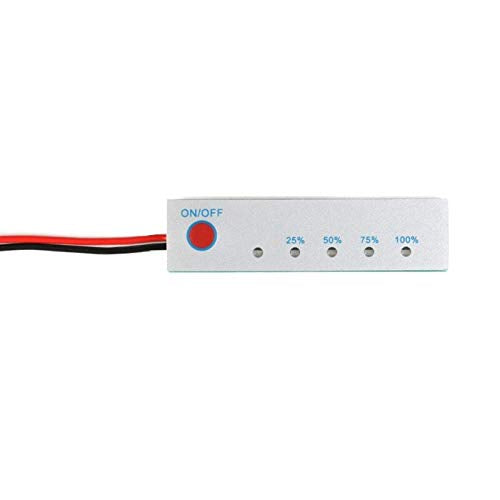

CentIoT - Battery Power Indicator - 18650 Li-ion lipo Lithium Battery Capacity Indicator Power LED Display PCB Board Meter Tester - with switch (3S 12.6V NMC)

Brand: CentIoT

Color: Silver

Features:

• Battery Type: Lithium-ion batteries (3.8V to 4.2V)

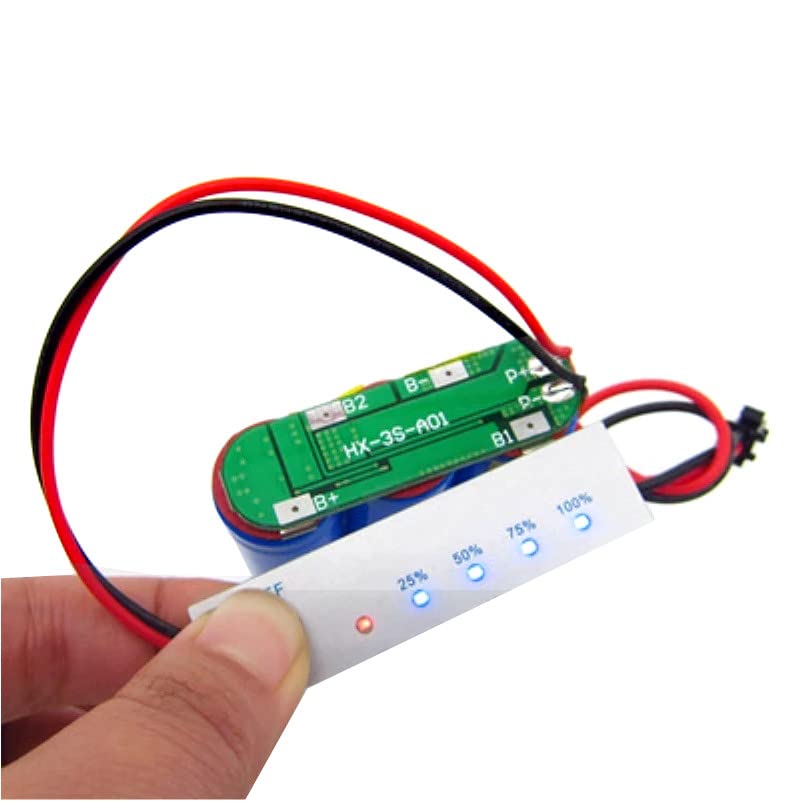

• 5 small lamps, which display the power, which is suitable for the reverse battery lithium battery power prompt.

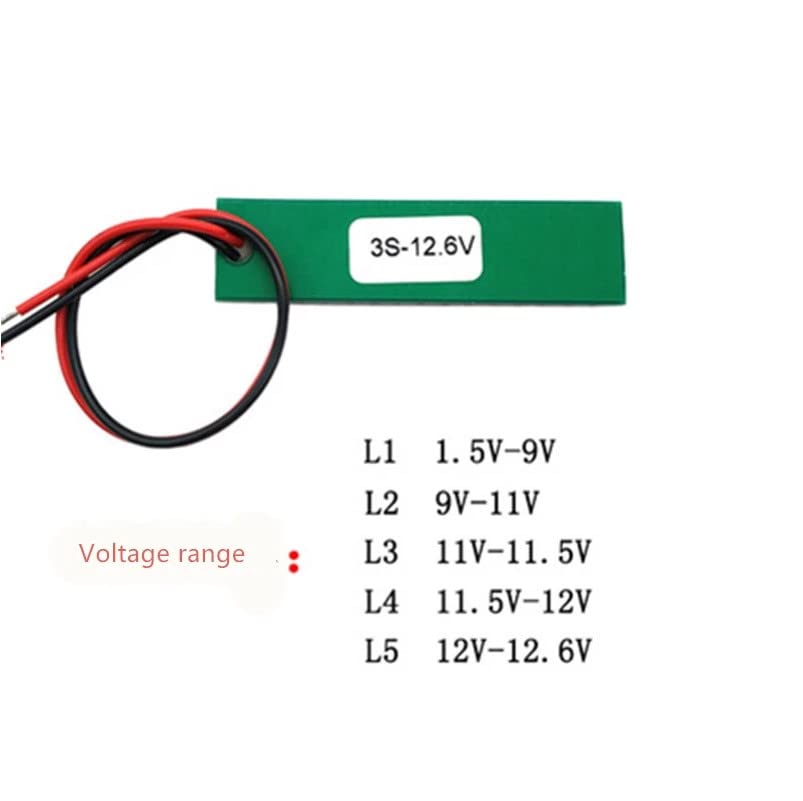

• 3S-12.6V Voltage Range L1:1.5V-9V L2:9V-11V L3:11V-11.5V L4:11.5V-12V L5:12V-12.6V
• Size: 62 * 2.7 * 15.8mm
• Cable length: 140mm

PartNumber: BC037

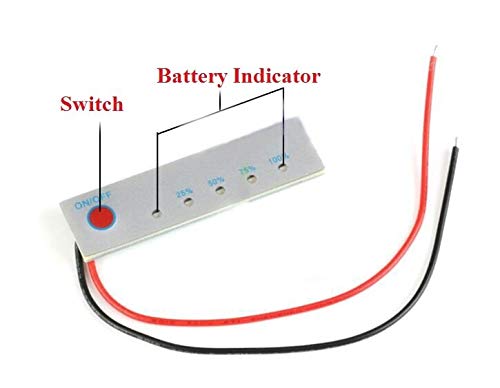

Details: Description Instruction: 1. Press and hold red button the LED's will lit based on the charge level, the current draw by this indicator is 30mA. 2. Release the button to deactivate the indicator, no power draw when LED's are off. 3. The indicator has built in reverse polarity protection 4. Charge level can be determined based on no. of LED's being lit. Wider range of applications, lithium batteries, lead-acid batteries, lithium iron phosphate, electric vehicle batteries and other electric equipment can be used.

UPC: 679043306419

EAN: 0679043306419

Model: 3S 12.6V NMC

Item Condition: New
