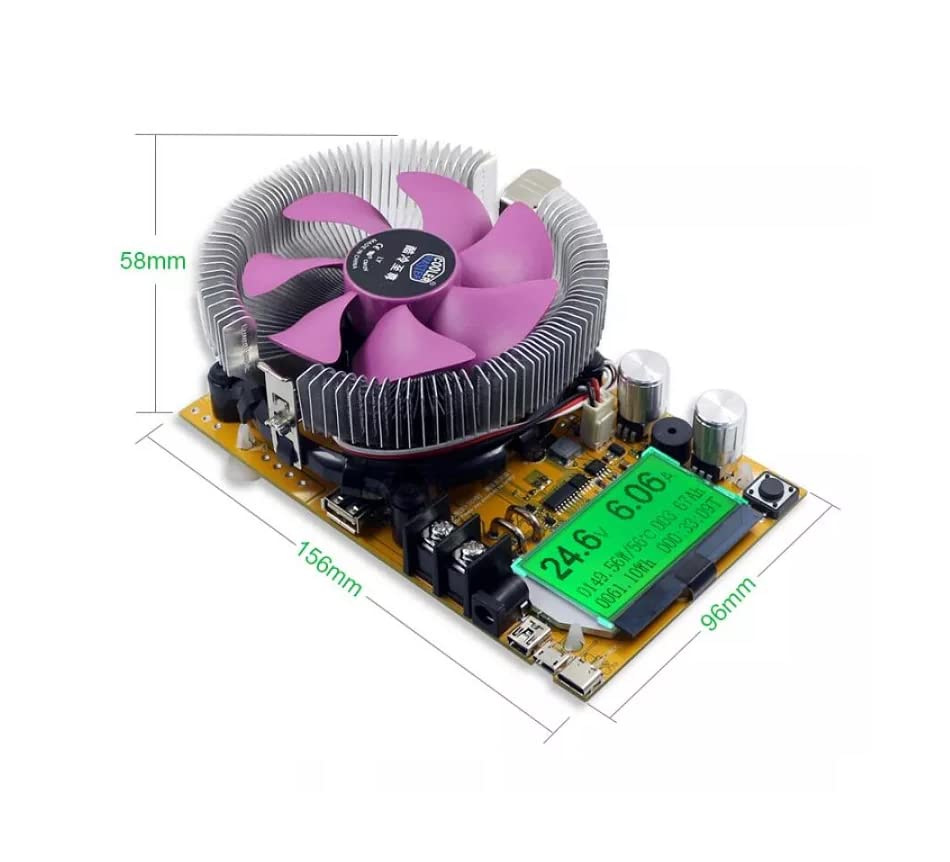

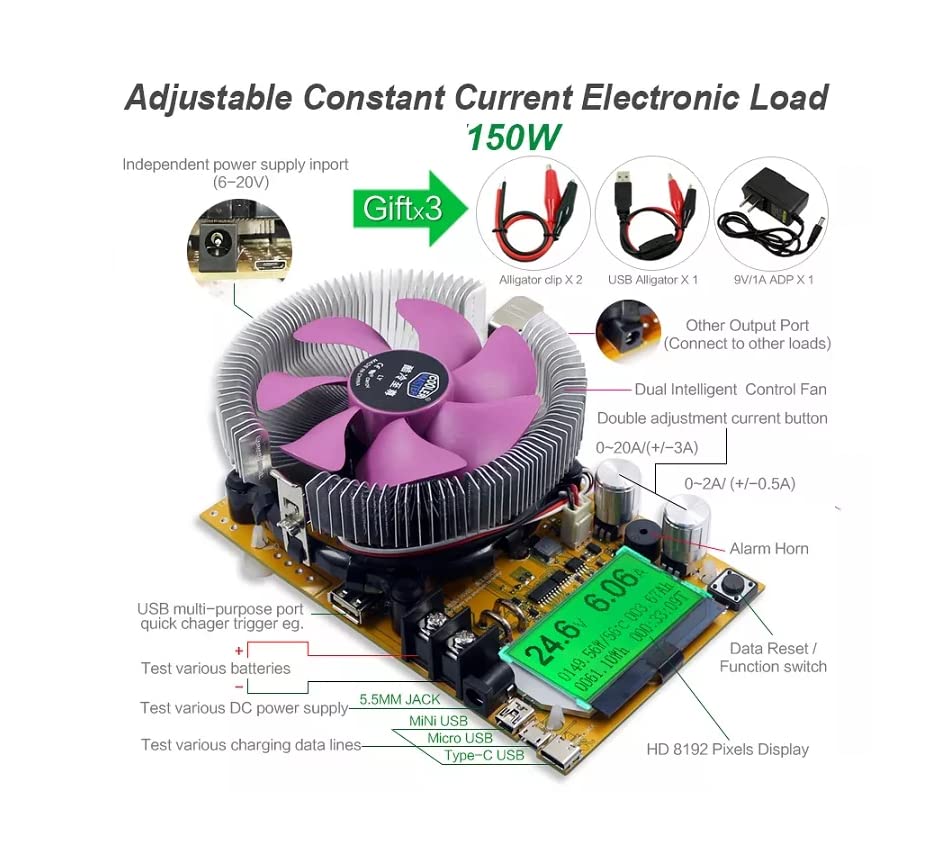

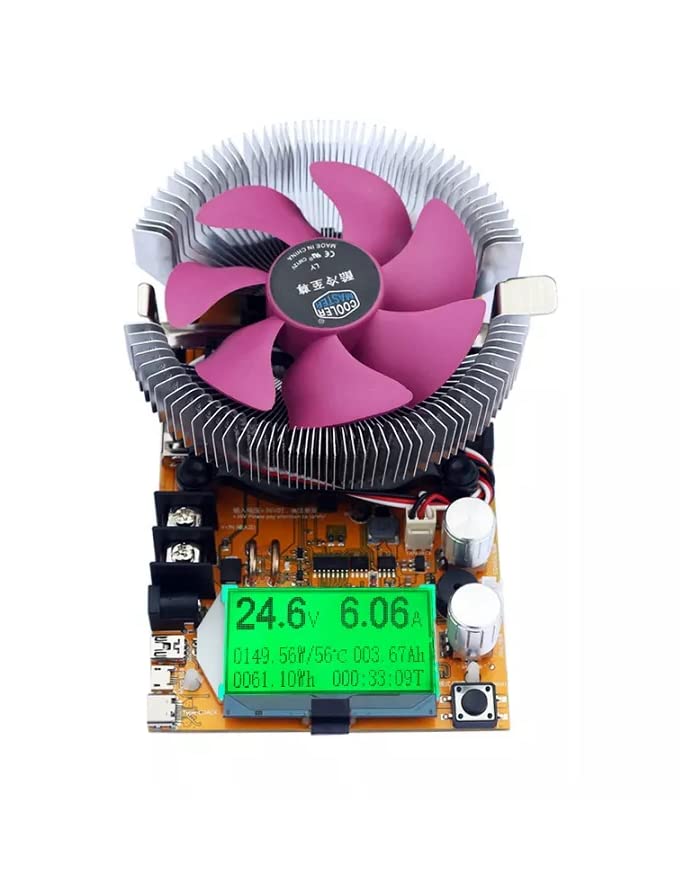

CentIoT - 8 In 1 150W 200V 20A Battery Capacity Tester Adjustable Constant Current Digital Electronic Load

Brand: CentIoT

Features:

• Input interface/Output interface:100A large current occluding screw column
• Voltage testing range:0.00V~200V;Resolution accuracy:0.01V
• Current testing range:0.00A~20A;Resolution accuracy:0.01A
• Capacity accumulated range:0~999.999Ah;Resolution accuracy:0.01Ah
• Electricity accumulated range:0~9999.9Wh;Resolution accuracy:0.01Wh
• Power measurement range:0000.00~150/180 W;Resolution accuracy:0.01W
• Impedance measurement range:1~999.9 ohm;Resolution accuracy:0.01ohm
• Temperature measurement range:0~99℃,0~99℃;Resolution accuracy:1℃

PartNumber: BC077-20A-150W

Details: Description Product Description: - It can be taken as electronic constant current load,USB tester,cable detector.Built-in ontelligent temperature control and large power auto protection,safe discharger. - Test charger function voltage and maximum current - 8 in 1 measurement: voltage, current,power,battery capacity,impedance,temperature,energy,time,external waterproof temperature probe. Scope of application: Universal test all kinds of batteries, all kinds of power supply, all kinds of charger Specification: - Timing the max time:999 hours 59minutes 59 seconds;Resolution accuracy:1s - Timing testing alarm setting:count down 24 hours Arbitrary setting value - Small current standby alarm threshold parameter and timing:<2W/0.5 hour; >0.5W begin timing - 4~30V DC voltage provides electricity for testing system - Refresh time:>500mS/times;> 500mS/times - Testing speed rate:about 0.5 times/s - Over voltage over current setting alarm method:display warming interface alrm users - Over voltage warning setting range:1~200V - Low voltage warning setting range:0~190V - Over current warming setting range:0.2~100A - Display screen type:micro power consumption crystal module LCM black font green backlight Chinese English display screen - Size:156x96x58mm - Working temperature:-10~+60℃; -10~+60℃ - Working humidity:10~80℃ (no condensation);10~80℃(no doubt) Operation method: 1) Reset button long-press all data (mAh,Wh,00:00:00) 2) Quickly Press twice - capacity Reset (mAh) 3) Quickly Press thrice - power reset (Wh) 4) Quickly Press four times - time reset (00:00:00) 5) Quickly Press five times- Set up automatic standby and Discharge the countdown to remind regularly

Model: BC077-20A-150W

Item Condition: New
