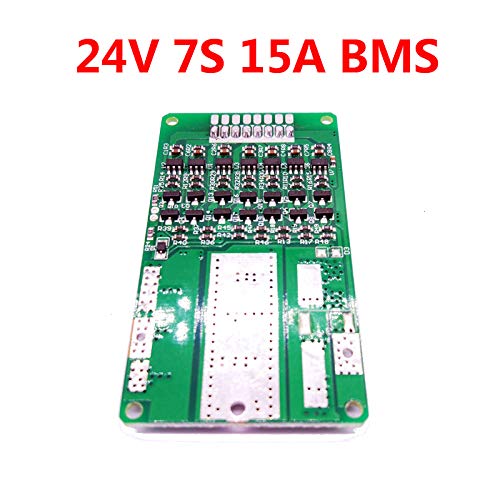

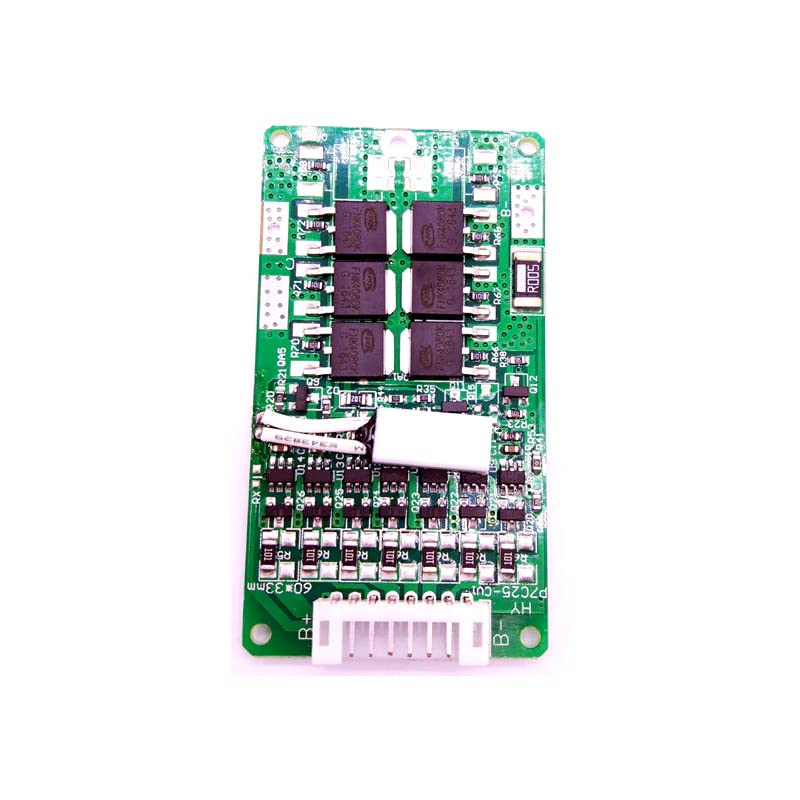

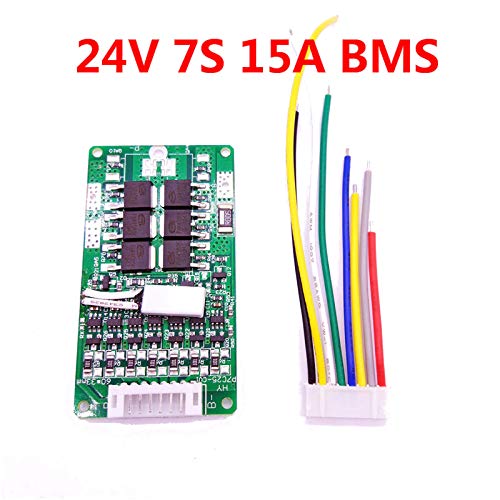

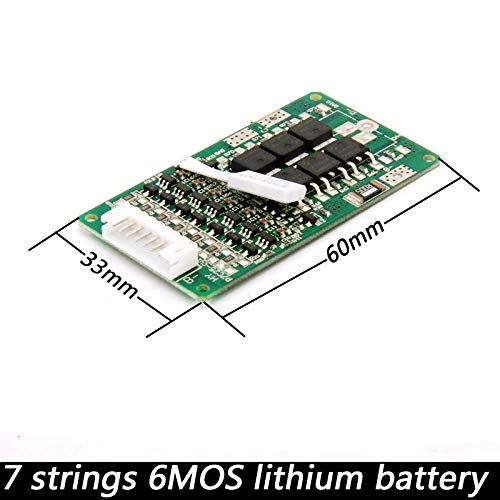

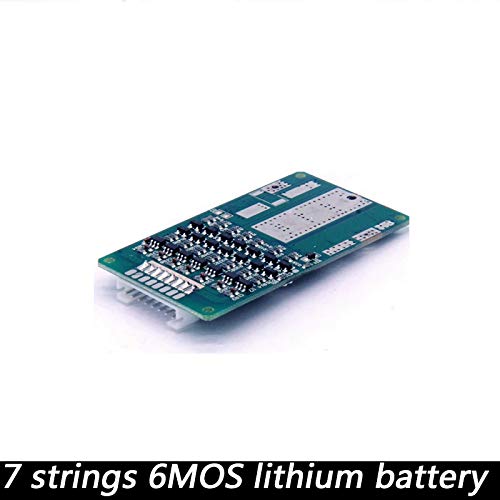

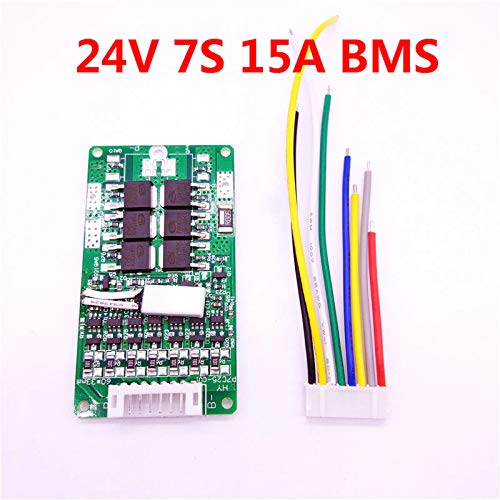

CentIoT - 7S 15A 24V 29.4V Battery Charging Module PCB BMS Protection Board For 7 Series lithium LicoO2 Limn2O4 18650 battery - With Balance Function (15A)

Brand: CentIoT

Features:

• Suitable for 7 string 18650 batteries or polymer lithium battery series combination, it has balancing function in-built
• Charging current: 15A (MAX), Lampshift maximum discharge current: 15A, Instantaneous discharge current: 25A
• Charging voltage: 29.4V, Overcharge detection voltage: 4.28 ± 0.05V, Overcharge release voltage: 4.08 ± 0.05V
• Overcurrent detection voltage: 150mV, Over discharge detection voltage: 2.55 ± 0.08V, overdischarge release voltage: 2.9 ± 0.1V, Short circuit detection delay: 250uS, Overcurrent protection current: 30 ± 3A, Overcurrent protection release condition: Disconnect the load, Sleep current (battery over discharge) ≤10uA
• Short circuit protection Release condition: disconnect negative open Main circuit conduction resistance: ≤20mΩ, Temperature range: -30 / + 80 °

PartNumber: BM041-7S15A

Details: A battery management system (BMS) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and / or balancing it.

EAN: 4604046155531

Model: BM041-7S15A-NO-HEATSINK

Binding: Electronics

Item Condition: New
