Description
Brand: CentIoT
Features:
- Input Voltage: 100 - 240VAC; Overcurrent protection / Over voltage protection / Short Circuit Protection / Reverse Connection Protection
- Charge Voltage and Current: 25.2 V 6A; CC / CV Charging; LED Indicators: Red When Charging, Green When Finish charging
- Case Material: ABS Plastic; Built-in EMI filter device, anti lightning, surge voltage design
- It has the function of soft start, can withstand frequent switch start, will not cause damage to the power supply.
- Operating Humidity: 20~90%RH; Operating Temperature:-20°C~ +50°C; Storage Temperature:-40°C~ +80°C

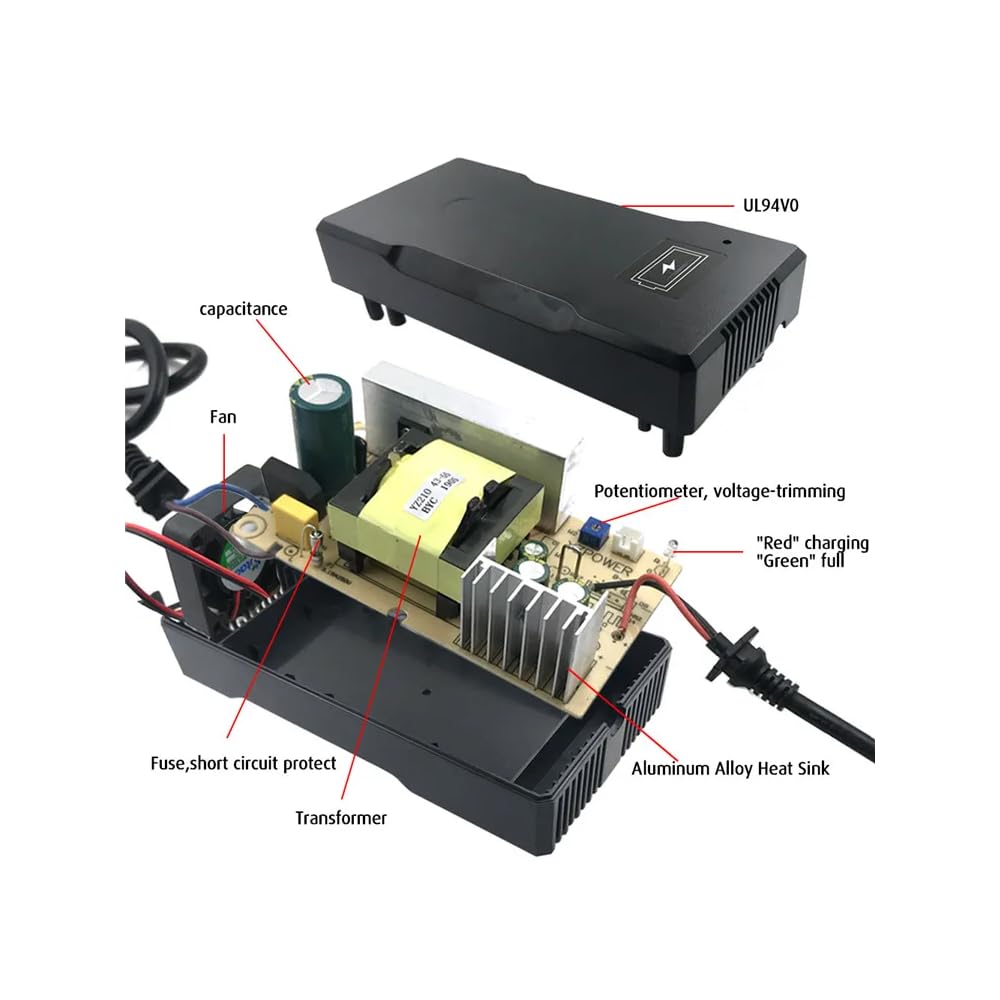

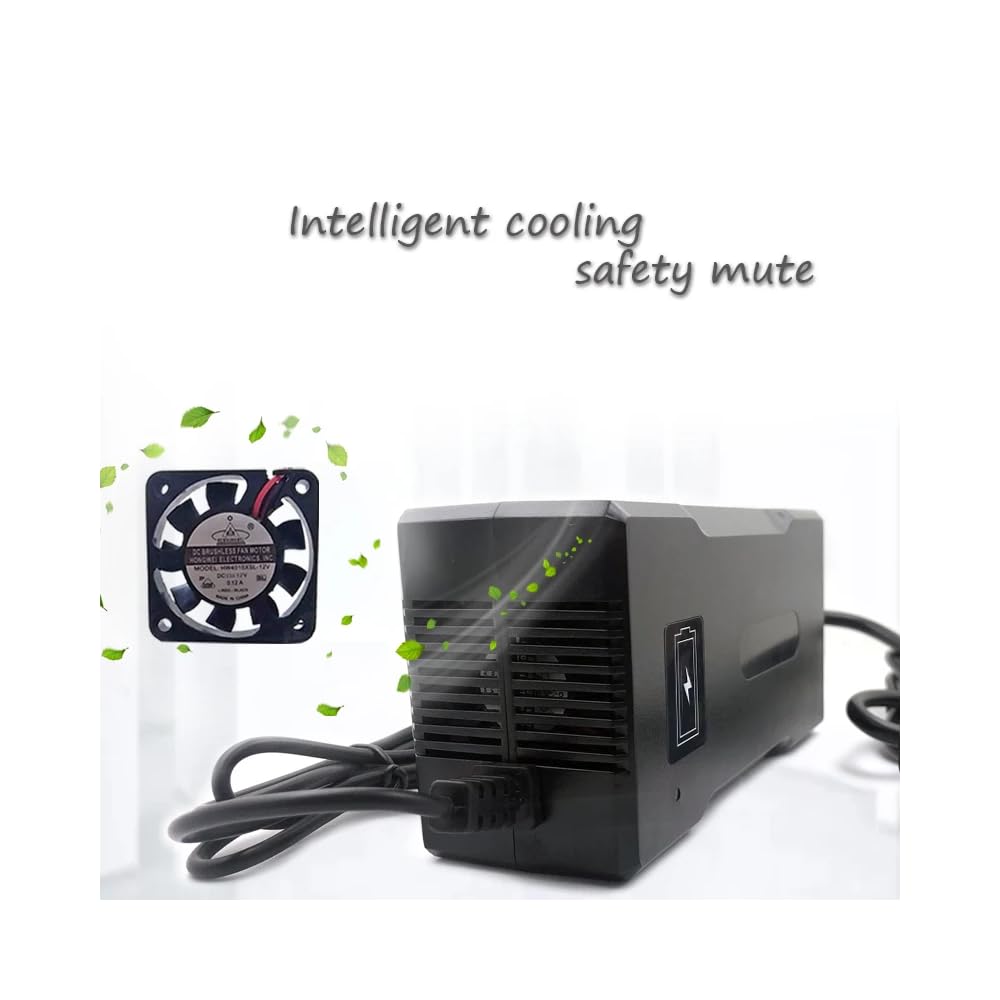

Details: Input and output filter electrolytic capacitor use withstand temperatures -40 to +105?, with Low Impedance, High reliability, Long useful life, High rip-ple capability, etc features. Input Bridge KBP406 rectifiers Can withstand average Forward Rectified Current 4A, peak forward surge current 130A, Bl-ocking Voltage 600V DC The main power transformer adopts EC40 core, PC40 material, High efficiency, low iron loss, Enough power capacity, Have sufficient power margin. Using aluminum heat sink, Good thermal design, can better cool the power device, Consistent with the principle of hot air flow, extend the service life Usage Instruction: Dual Color LED Indicator:(Charging: Red; Fully Charged Or No Load: Green). High Efficiency And Low Power Consumption How to use: Should be checked before using the battery charger is consistent with the type of charger model is correct. If the model is not matched, charging may be abnormal and the battery may be seriously damaged. Make sure the battery is properly connected battery, do not connect the reverse polarity Then the AC plug in the AC outlet, the charger starts to charge the battery, charging status LED color light displayed by the top of the charger. (The indicator of LED: red is charging, green is charge finished or prepare to charge)If the green light is always on, check that the charging cable is firmly connected to the battery. Once the battery is fully charged, unplug the chargers power plug first, then unplug the battery
