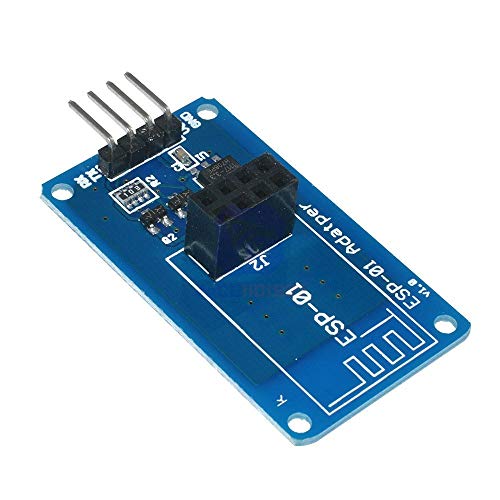

CentIoT - 5V to 3.3V Socket Adapter Plate Board for ESP-01 ESP8266 Serial Wireless Module

Brand: CentIoT

Features:

• 8-pin esp-01 esp8266 serial wireless module can be directly inserted in a female header. With AMS1117 3.3V stable chip, no bother with voltage conversion
• Using instruction: VCC on the module is connected with power source, GND connected to ground, Rx and Tx input terminals connect with respective I/O Ports
• Supply voltage input range: DC 5 – 8V
• Applied with two layer PCB board production process, premium, and high quality

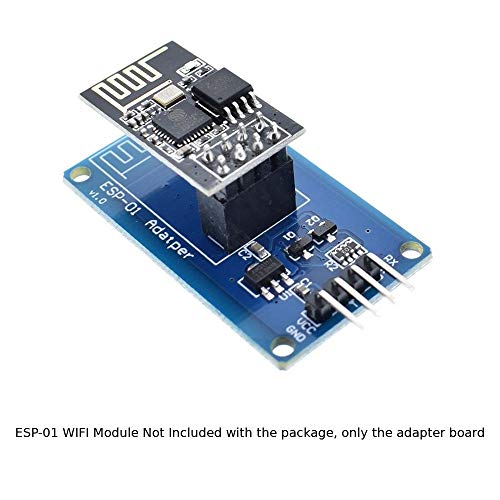

• The package contains only the adapter board, it does not include esp-01 esp8266 wifi module.

PartNumber: E019-ESP01-3.3V-ADAPTER

Release Date: 12-04-2019

Details: ESP-01 Wireless module operating voltage is generally 3.3v, while the ordinary microcontroller board is operating at 5V. This module will convert the 5V to 8V microcontroller signal to 3.3v signal. The adapter is fully compatible with Arduino, raspberry pi and other commonly available microcontroller development boards. The module come with an M3 fixing screw mounting hole for easy installation Note: This adapter is not compatible with NRF24L01 or any other NRF based wifi chipset. The package contains only the adapter board, it does not include esp-01 esp8266 wifi module.

EAN: 4604046157139

Model: E019-ESP01-3.3V-ADAPTER

Binding: Electronics

Item Condition: New
