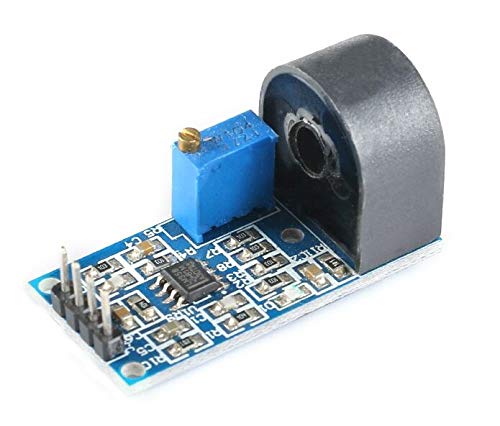

CentIoT - 5A Single-Phase AC Current Sensor ZMCT103C with OP Amp - Non-invasive High Precision Current Transformer Module 5A/5mA

Brand: CentIoT

Color: Multicolor

Features:

• Rated input current: 5A; Rated output current: 5mA; Change ratio: 1000:1
• Phase difference: less than or equal to 20' (100Ω) Linear range: 0-10A (100Ω) Linearity: 0.2%
• Phase difference: less than or equal to 20' (100Ω) Linear range: 0-10A (100Ω) Linearity: 0.2%
• Precision level: 0.2 Isolation withstand voltage: 3000V
• Working temperature: -40 ° C ~ 70 ° C Sealing material: epoxy resin

PartNumber: SCT005-5A-w-OP-AMP

Release Date: 21-09-2019

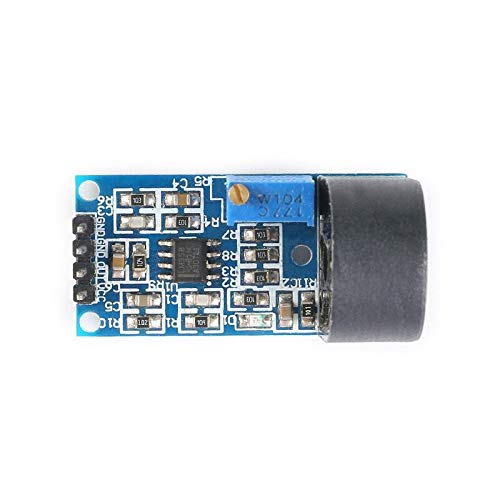

Details: The module is equipped with ZMCT103C series small high-precision current transformers and high-precision operational amplifier circuits to accurately sample and properly compensate signals. It is convenient for signal acquisition of AC power within 5A. The corresponding output analog AC signal can be adjusted. The required output voltage can be adjusted according to the potentiometer (adjusting the amplification ratio, the amplification range is 0-100 times), but the maximum voltage at the output (OUT) will not exceed 1/2 VCC.

UPC: 631772462132

EAN: 0631772462132

Model: SCT005-5A-w-OP-AMP

Binding: Electronics

Item Condition: New
