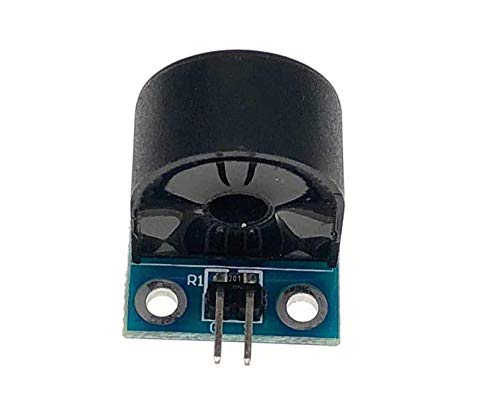

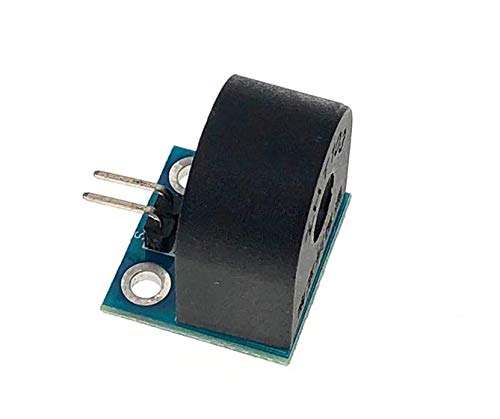

CentIoT - 5A Single-Phase AC Current Sensor - Non-invasive Current Transformer Module 5A/5mA

Brand: CentIoT

Features:

• On-board micro-precision current transformer | Onboard sampling resistor
• Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA
• Rated input current: 5A | Rated output current: 5mA | Change: 1000: 1
• The linear range: 0 ~ 10A (100 ohm) | Linearity: 0.2% | Precision rating: 0.2
• Uses isolation voltage: 3000V Measurement | Sealing material: epoxy resin | Operating temperature: - 40 Celsius - + 70 Celsius

PartNumber: SCT001-5A-5mA

Release Date: 14-03-2019

Details: Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection

EAN: 4604046156972

Model: SCT001-5A-5mA

Binding: Electronics

Item Condition: New
