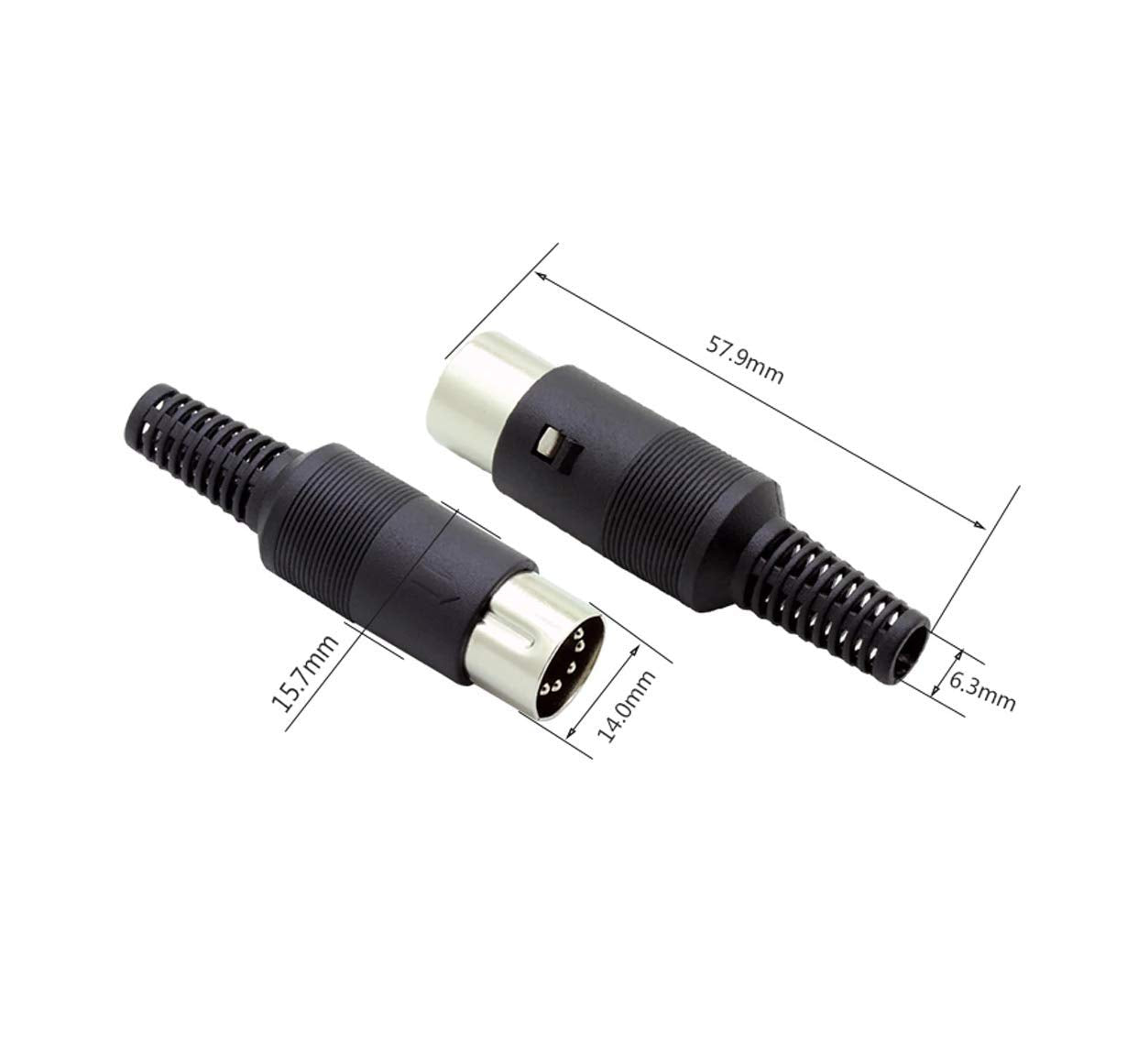

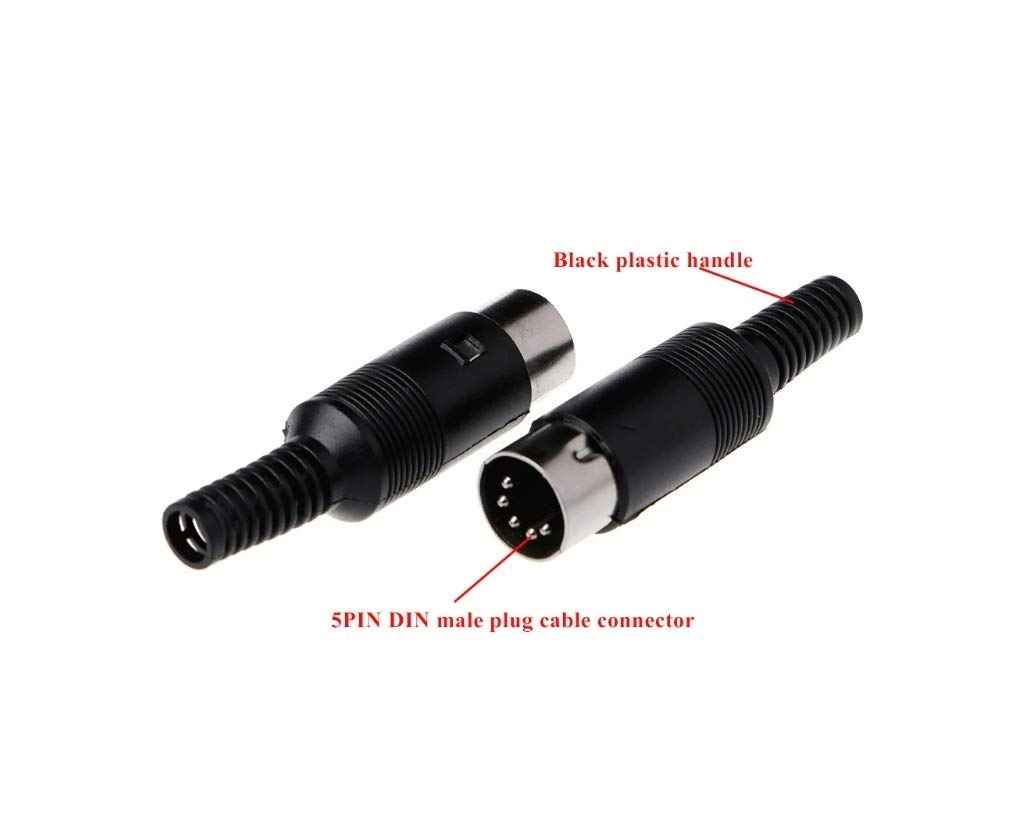

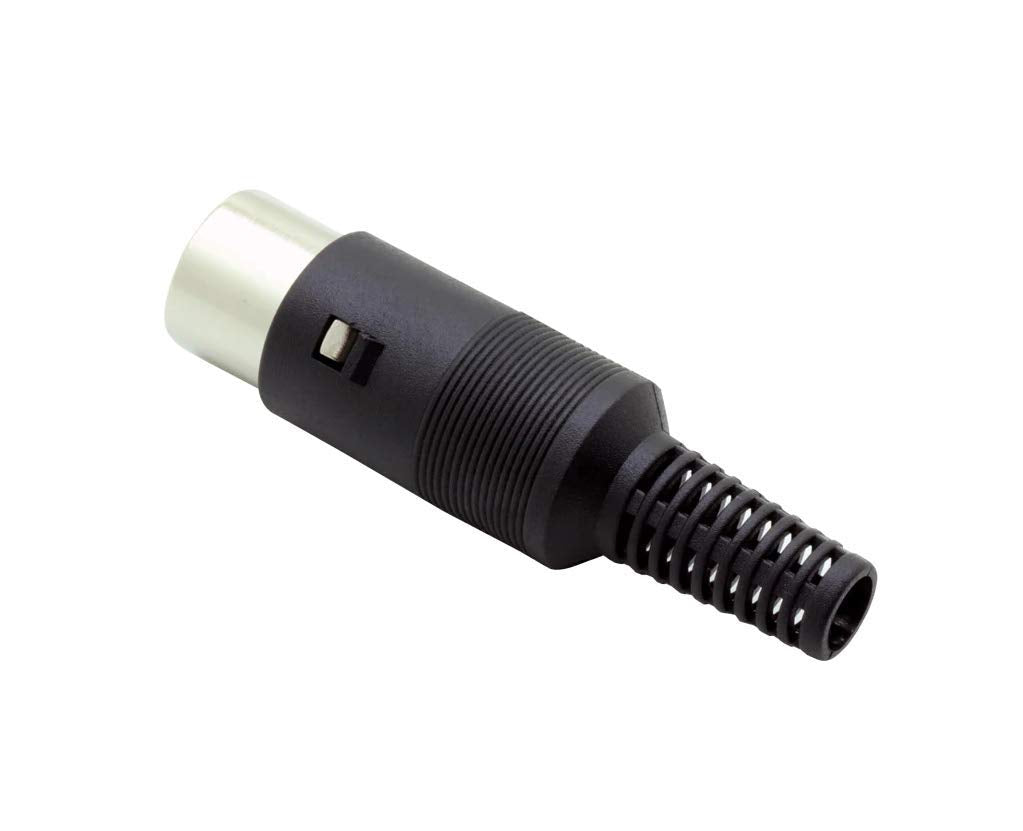

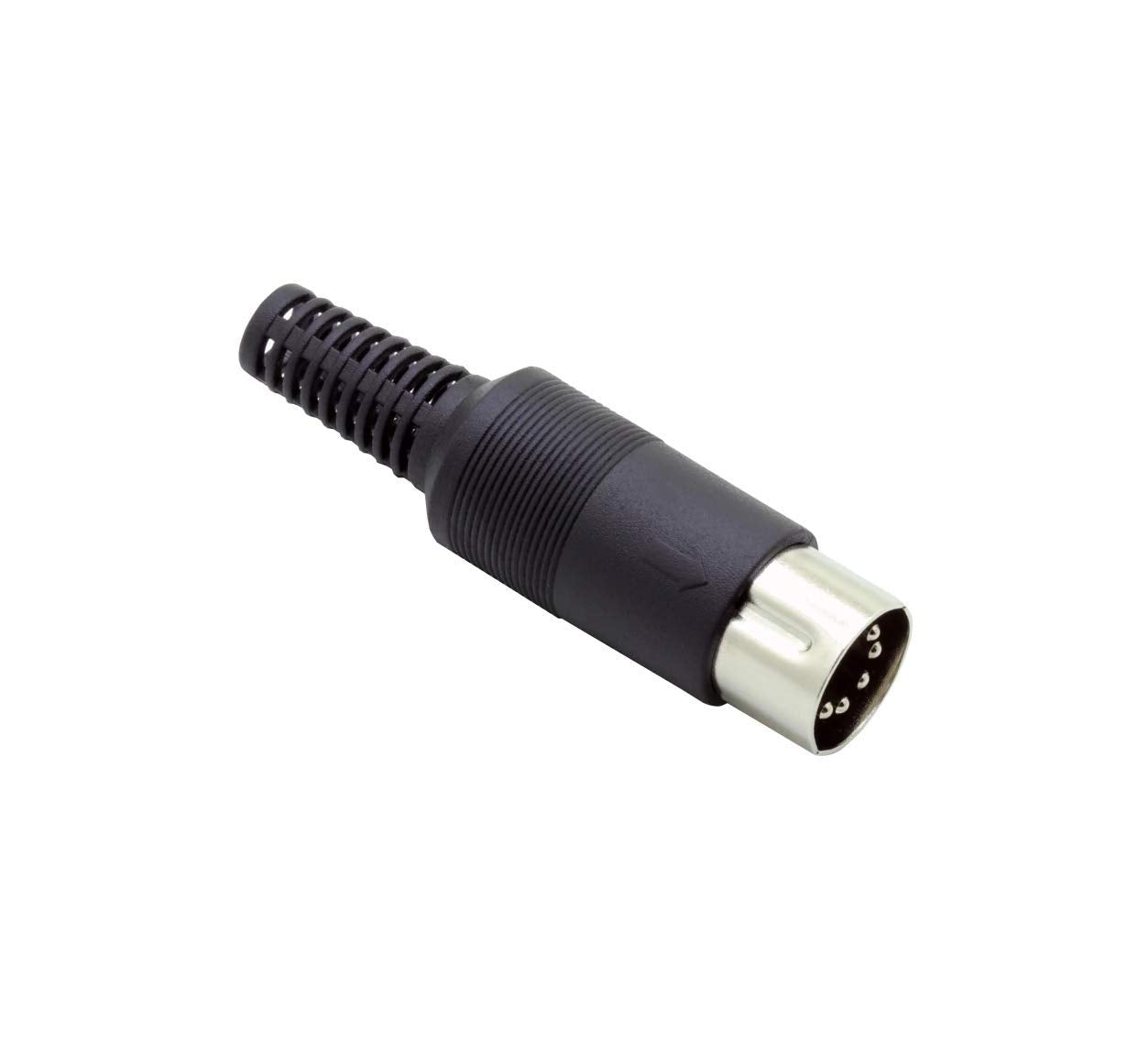

CentIoT - 5 PIN MALE PLUG Solder Cable Connector with Plastic Handle for Computers Audio/Video PC BBC

Brand: CentIoT

Color: Black

Features:

• Standard:DIN; Gender: Male; Number of Positions:5 Position;
• Mounting Style: Cable Mount; Termination Style: Solder;
• Voltage Rating:34 V; Current Rating:3 A; Degrees of Arc:180;
• Shell: Die-cast zinc alloy, nickel-plated; Receptacle Mounting Flange: Steel Receptacle Body: Plastic; Insert Material: Plastic; Socket Contacts: Tin-plated; Pin Contacts: Tin-plated
• Switching Contacts: Silver-plated; Cable Relief Bushing: Soft plastic

PartNumber: DC060-DIN-5PIN-CM-M

Release Date: 08-10-2020

Details: 5 pin DIN connectors which mount to PC boards. Plugs connect at right-angle to mounting surface. Shielded version has metal flange surrounding face of insert to provide through-grounding between plug and receptacle and to potential panel/chassis for common grounding. Male version features interlocking flanges for side-by-side row mounting. ELECTRICAL PROPERTIES: Contact Resistance: 1. Cord Plugs and Receptacles; .010 ohms, contact spring/pin .030 ohms, ground clip/shell 2. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts 3. Dielectric Withstanding Voltage: 500 V (rms) 4. Contact Rating: 5-pin; 3A, 34 V DC 5. Leakage Resistance: 105M (ohm) 6. Recommended Wire Size: 22 wire gauge maximum 7. Insertion Force pound/N 9.0/(40) 8. Withdrawal Force pound/N1.24- 6.8/(5.5-30)

UPC: 046382370041

EAN: 0046382370041

Model: DC059-DIN-5PIN-PM-F

Binding: Electronics

Item Condition: New
