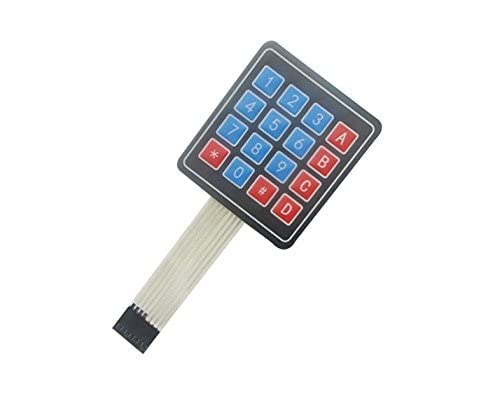

- CentIoT - 4x4 Universal 16 Key Switch Keypad Keyboard For Arduin, Raspberry and MCU's
Product Categories
- Development Boards(0)
- Audio and Video(23)
- Accessories Tools Cases (0)
- Connectors and Cables(0)
- Thermal Management(57)
- All Categories ()
- Motors And Drivers(15)
-
Wireless Communications(36)
- Top Brands
- (G)FSK Front-End Modules
- 2.4G Front-End Modules
- ASK Modules
- LoRa & LoRaWAN Modules
- LoRaWAN Gateway & Node
- BLE & GPS & 125kHz Wakeup Modules
- RF antennas
- 3D Pedometer Modules & Chips
- Transparent Wireless UART Modules
- Walkie Talkie & Wireless audio
- Wireless IO & 4-20mA Modules
- SENSOR MONITORING GATEWAY AND NODE
- Power Supply and Converters(21)
- Test, Measure and Inspect(0)
Featured product
Description
Brand: CentIoT
Color: White
Features:

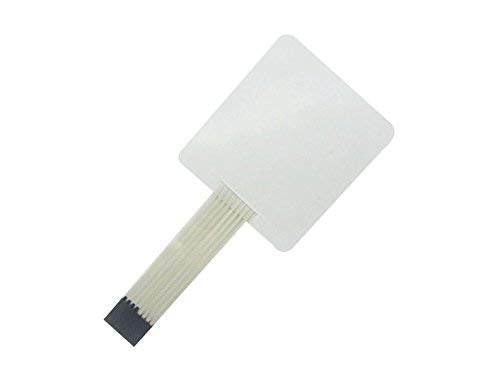

- Peel off the white sticker on the back of the keyboard,can be securely affixed to the surface of the chassis.

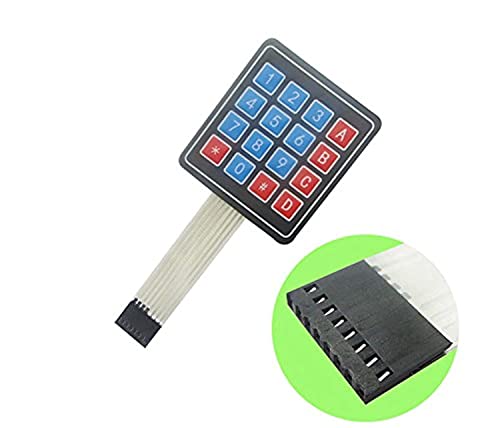

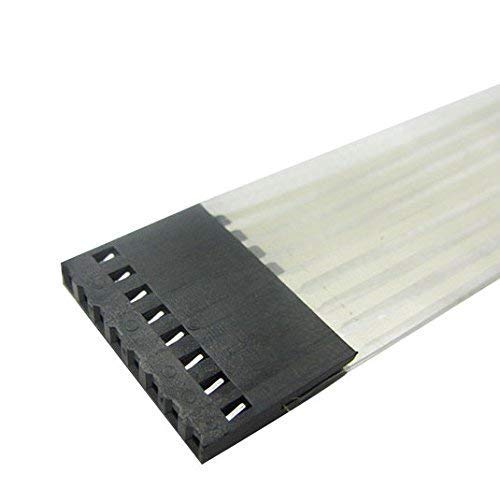

- Connector: Dupont 8 pins, 0.1" (2.54mm) Pitch.
- Peel off the white sticker on the back of the keyboard,can be securely affixed to the surface of the chassis.
- Operation Temperature: -20 to +40 degree C
- Life Expectancy: 1 million closures
PartNumber: AR011-4X4-KEYPAD-1PCS
Release Date: 02-10-2019
Details: 1. Contact resistance of 500 Insulation resistance 100M 2. Key Operating Force 150-200N 3. Rebound time 1 (ms) 4. Life of 100 million (times) 5. Operating Temperature: 60 deg C The electronic characteristics: 1. Circuit Rating: 35V (DC), 100mA, 1W 2. Contact resistance: 10Ω ~ 500Ω (Varies according to the lead lengths and different from those of the material used) 3. Insulation resistance: 100MΩ 100V 4. Dielectric Strength: 250VRms (50 ~ 60Hz 1min) 5. Electric shock jitter: 6. Life span: tactile type: ≥ one million times The mechanical properties Operating pressure: 1. Touch feeling: 170 ~ 397g (6 ~ 14oz) 2. Switch travel: touch-type: 0.6 ~ 1.5mm The environment parameters: 1. Operating temperature: -40 to +80 deg C 2. Storage temperature: -40 to +80 deg C 3. Temperature: from 40,90% to 95%, 240 hours Vibration: 20G, max. (10 200Hz, the Mil-SLD-202 M204.Condition B)
UPC: 631772461975
EAN: 0618020768420
Model: AR011-4X4-KEYPAD-1PCS
Binding: Electronics
Item Condition: New
