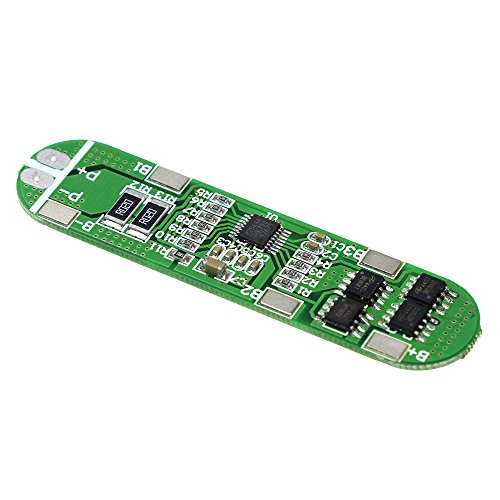

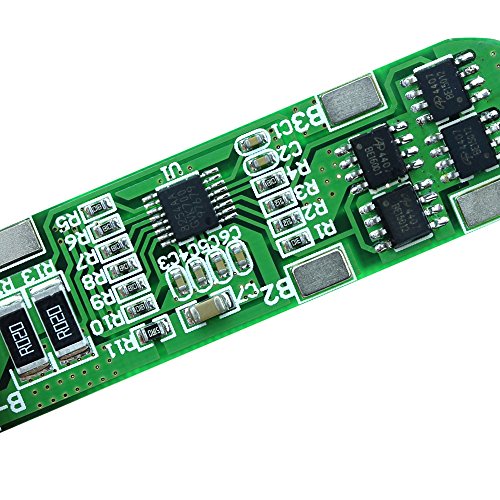

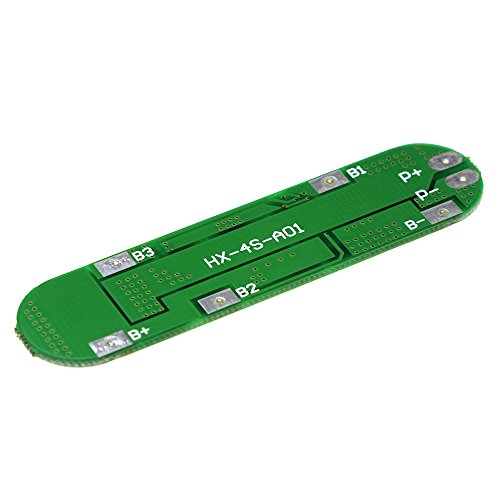

CentIoT - 4S 6A 14.8V Battery Charging Module PCB BMS Protection Board For 4 Packs For lithium LicoO2 Limn2O4 18650 battery (1)

Brand: CentIoT

Color: Green

Features:

• 4 series 18650 battery 16.8V 16V 14.8V; 4.8V (Li-ion 18650 or li-ion battery rated voltage); 16.8V (Li-ion battery full charge voltage); 14.4V ( Lipo battery pack rated voltage)
• Over Charge Voltage:4.25-4.35v±0.05v; Over Discharge Voltage: 2.3-3.0v±0.05v; Max working current:4-5A; Max Peak current:6-7A
• Working Temperature:-40---+50; Storage Temperature:-40-- +80;
• Small current:6uA; Life cycle:50000hours;
• Short circuit protection: protect and automatic recovery, Over discharge protection: yes, over-current-protection: yes

PartNumber: BM081-4S6A-Li-ion

Release Date: 24-04-2018

Details: 1) high-accuracy voltage detection circuit; 2) terminal of the charger using high voltage device; 3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit); 4) MOS transistor can control the battery charge and discharge; 5) low standby current consumption.

EAN: 4604046155272

Model: BM081-4S6A-Li-ion

Binding: Electronics

Item Condition: New
