CentIoT - 3S 8A 12.6V Battery Charging Module PCB BMS Protection Board For 3 Packs lithium LicoO2 Limn2O4 18650 battery - With Balance Function

Brand: CentIoT

Color: Red

Features:

• For 3 string (for 3 18650 batteries or polymer lithium battery series combination) 10.8V (rated voltage for polymer battery) 11.1V (18650 or 3.7V lithium battery rated voltage) 12.6V (lithium battery is fully charged after the voltage) Overcharge detection voltage: 4.25-4.35V±0.05V, Over-discharge detection voltage: 2.3-3.0V±0.05V
• Supply Voltage: 12.6V, Single maximum protection voltage: 4.25V + 0.025V Single minimum protection voltage: 2.80V + 0.1V, over-discharge-delay-time: 144ms
• Maximum discharge current: 8A, Maximum working current: 4A-6A, Transient current: 8A, Quiescent current: <6uA, Maximum instantaneous current: 28A
• Internal resistance: <60mΩ, Service life: >30,000hours, Please not the board color may vary between red, blue and green based on availability.
• Balance Function, Short circuit protection. Overcharge protection. Over-discharge protection. Overcurrent protection. Can be applied to various 3.7V lithium core. Compact size and lightweight. Ensure the security of battery pack.

PartNumber: ACK-CHRGR-LIPO-DC-3PACKS-8A-WBAL

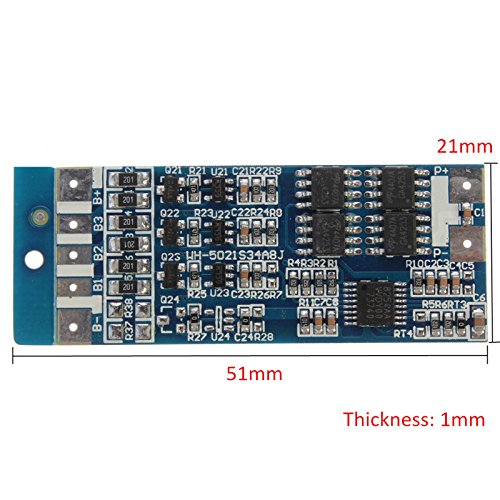

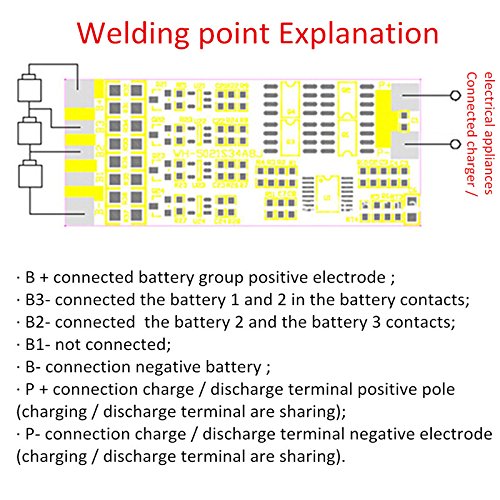

Details: The protection board size is 51mm X 21mm X 1mm and it comes with Balance function; Please note the board color may vary between red, blue and green based on availability. · B + connected battery cathode group; · B3- then the battery contacts 1 and 2 in the battery; · B2- then the battery 2 and the battery 3 contacts; · B1- not connected; · B- negative battery connection; · P + connection charge / discharge upright pole (charging terminal / discharge end share); · P- take charge / discharge end of the negative electrode (the charging terminal / discharge end of the share).

UPC: 618020770904

EAN: 0618020770904

Model: BM089-3S8A-NMC

Item Condition: New
