CentIoT - 2S To 15S 8V-70V Lcd Acid Lead Lithium Battery Capacity Indicator Voltmeter Voltage Tester, Black

Brand: CentIoT

Color: Black

Features:

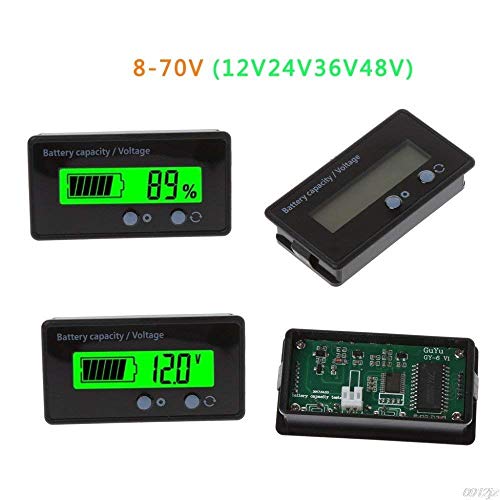

• Suitable for lead-acid 12V, 24V, 36V, 48V (8-70V) and 3.7V lithium series multi-platform, 2 string to 15 string
• Voltage Range: 8-70V; Please contact us after ordering, we can set voltage and send.

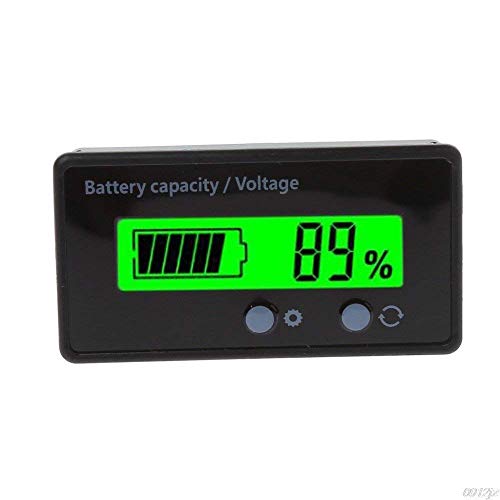

• Power percentage and voltage are displayed in turn recurrently and automatically.

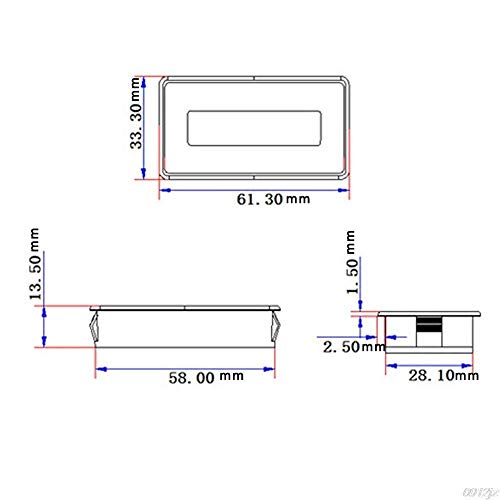

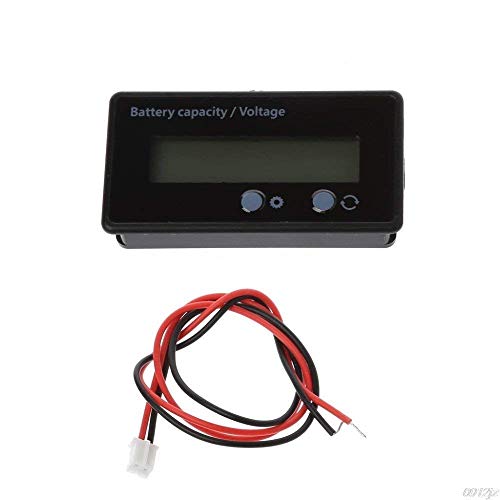

• Dimension: app.61.3mmx33.3mmx13.5mm/2.41''x1.31''x0.53''; Cable length: app.30cm/11.81''

PartNumber: BC070-8-70V-LCD

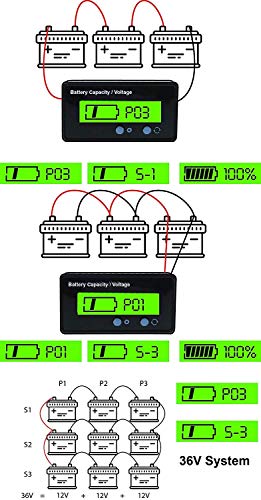

Details: Description Setting procedure: Disconnect the module power supply, press and hold the setting button while powering the power module. The display shows the current power setting parameters; Press the setting button to select P / L / F ,(P = 12V lead-acid, L = 3.7V lithium battery, F = 3.2V lithium iron phosphate battery); Press the function key to set the number of the battery string Press the function key for a long time to enter the advanced setting interface, and use the setting key to select S1-S5, enter key to select or cancel the current mode; To Save Settings, Reenergize the power after setting. The power cycle saves setting data. Modes S1:%/V Rotate display in 2s Power percentage and voltage are displayed in turn recurrently and automatically; S2: Inactivity sleep in 10s Automatically sleep after battery capacity display for 10 s, save power, press the function key to wake up power display for 10 seconds; S3: Turn on backlight Power display turns on or off power backlight; S4: Show logo(Applicable to small battery icon) The logo icon is located in the under the face of battery symbol on the left side of LCD, turn on and show the logo; S5: Discharge mode selection Operation: Disconnect display module power, press and hold the setting button, power the power module, press the setting button for a short time to select L, press the function key to select 10, press the function key for a long time to select S1 and re-power.

UPC: 046382370072

EAN: 0046382370072

Model: BC070-8-70V-LCD

Item Condition: New
