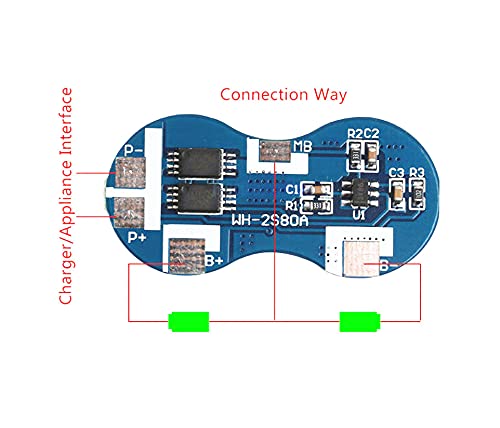

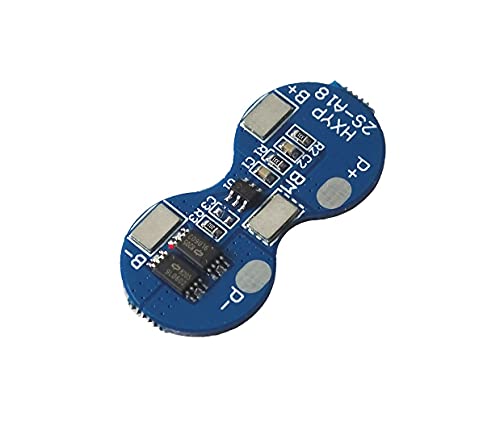

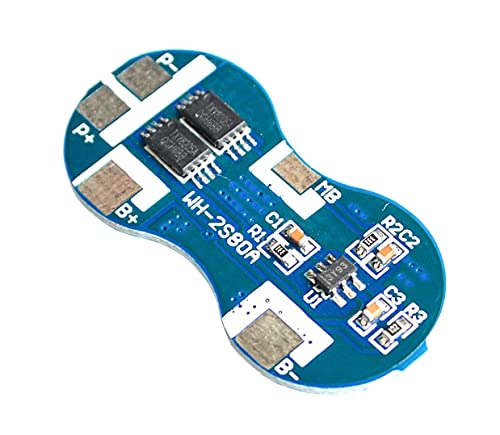

CentIoT - 2S 4A elipse 7.4v Battery Charging Module PCB BMS Protection Board - with CC CV - For 2 Series lithium LicoO2 Limn2O4 18650 26650 battery

Brand: CentIoT

Features:

• Charging voltage:DC 9V CC / CV (MAX:12V); Builtin input charge regulator
• Current Single current consumption (consumption) ≤6uA; Maximum sustained discharge current:4A
• Over-current protection ; Overcurrent detection voltage:200mV ; Overcurrent detection current:9.8A ; Overcurrent delay time:12ms ; Recovery Status: Auto Recovery
• Short-circuit protection ; Detection status:external short circuit ; Detection delay time:≤ 50us ; Recovery Status:Auto Recovery

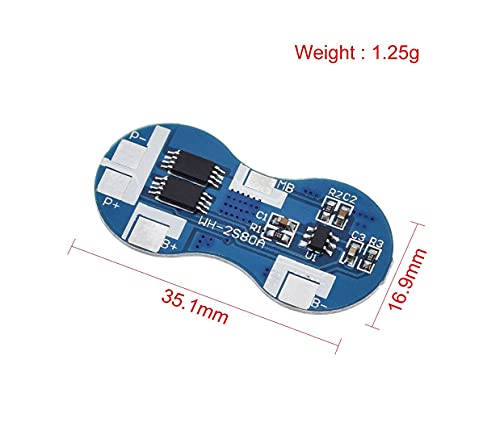

• Temperature ; Operating temperature range:-40 ° ~ +80 ° ; Storage temperature range:-40 ° ~ +125 ° ; Product size: about 3.50*1.70cm/1.38"*0.67"

PartNumber: BM016-2S4A-ELIPSE

UPC: 618020767324

EAN: 0618020767324

Model: BM016-2S4A-ELIPSE

Item Condition: New
