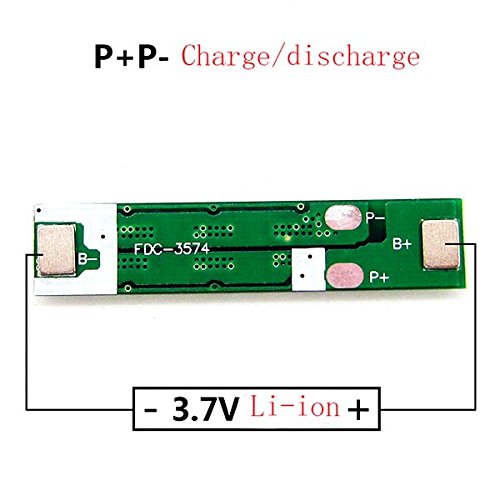

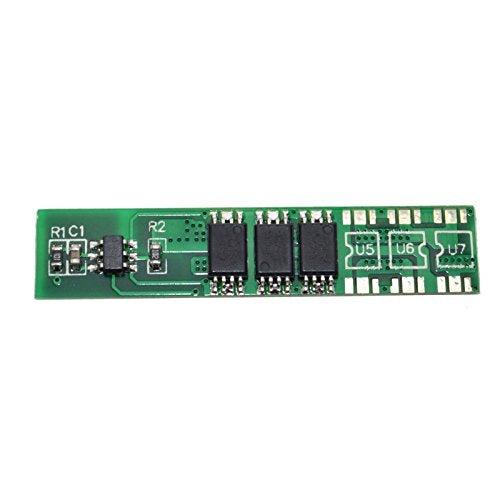

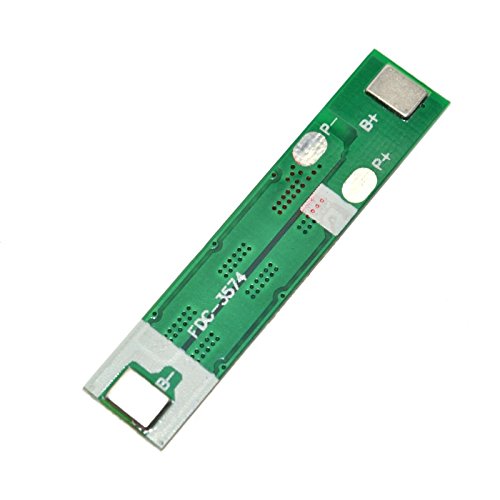

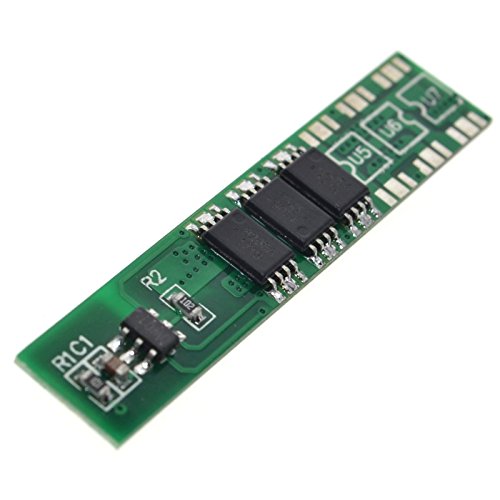

CentIoT - 1S 3.7V 4.2V Battery Charging Module PCB BMS Protection Board For 1 Series lithium LicoO2 Limn2O4 18650 26650 battery (Single Cell) (5A)

Brand: CentIoT

Color: Green

Features:

• Charge module: Linear charging.
• Over charge voltage: 4.25±0.05V
• Over charge release voltage:4.23±0.05V, Over discharge voltage:2.54±0.1V
• Maximal continuous Discharging current: 5A, Maximal continuous charging current: 7A
• Over current protection: 5A

PartNumber: 1S

Details: The BMS is used for li-ion battery without balancing function Features: 1) high-accuracy voltage detection circuit; 2) terminal of the charger using high voltage device; 3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit); 4) MOS transistor can control the battery charge and discharge;

EAN: 4604046155258

Model: BM004-1S5A

Item Condition: New
