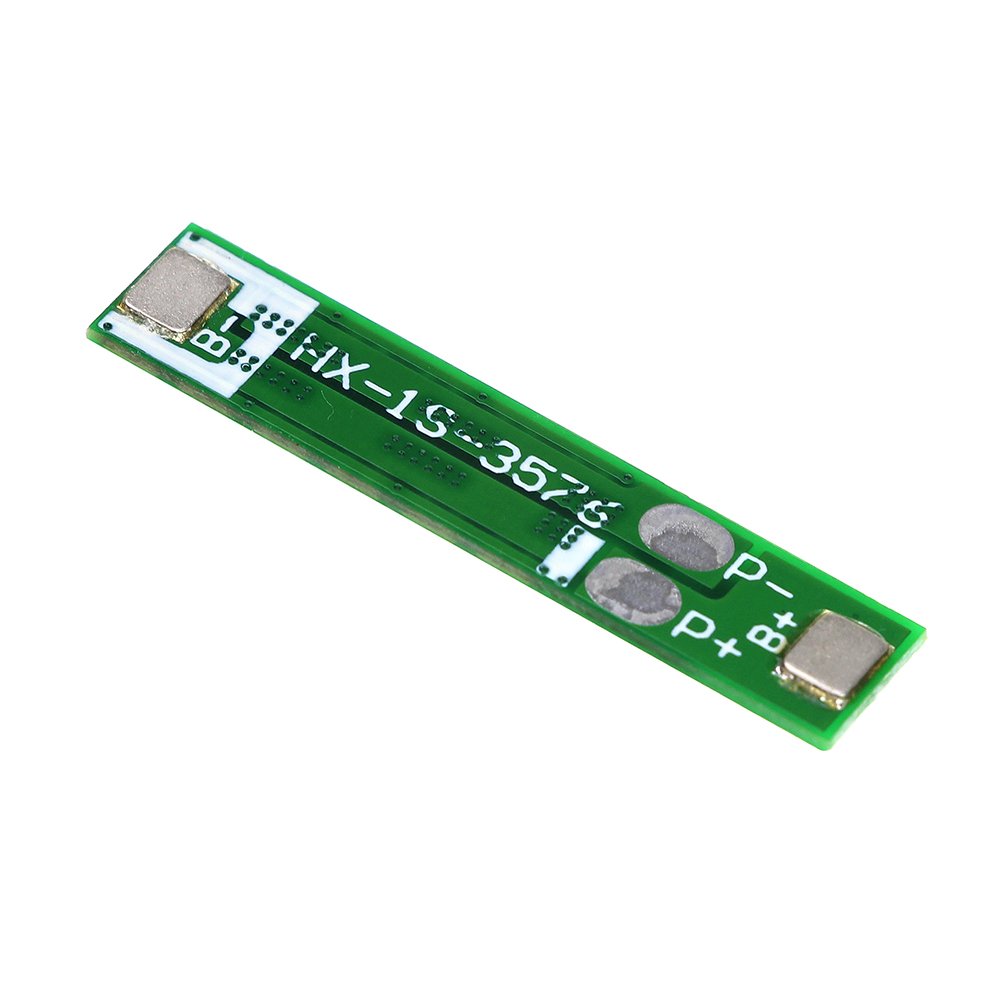

CentIoT - 1S 3.7V 4.2V Battery Charging Module PCB BMS Protection Board For 1 Series lithium LicoO2 Limn2O4 18650 26650 battery (Single Cell) (15A)

Brand: CentIoT

Color: green

Features:

• Charge module: Linear charging.
• Over charge voltage: 4.25±0.05V
• Over charge release voltage:4.23±0.05V, Over discharge voltage:2.54±0.1V
• Maximal continuous Discharging current: 15A, Maximal continuous charging current: 13A
• Over current protection: 15A

PartNumber: 1S

Release Date: 12-05-2019

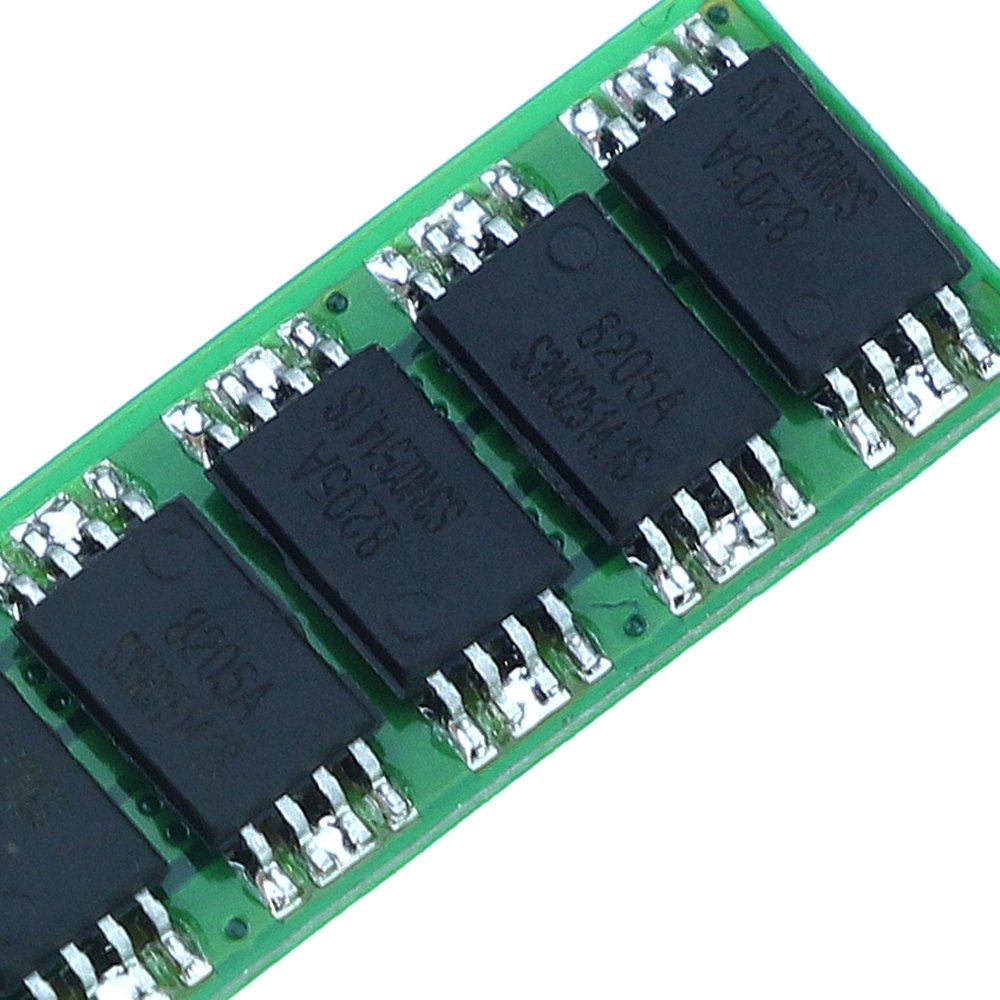

Details: The BMS is used for li-ion battery without balancing function Features: 1. High-accuracy voltage detection circuit 2. Terminal of the charger using high voltage device 3. Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit) 4. MOS transistor can control the battery charge and discharge

EAN: 4604046163574

Model: ACK-CHRGR-LIPO-DC-1S-3A-3.7V

Binding: Electronics

Item Condition: New
