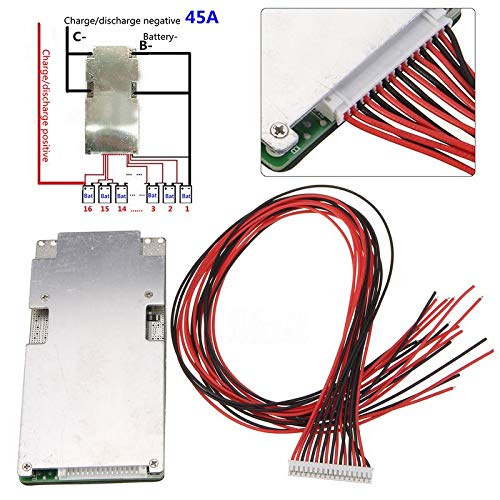

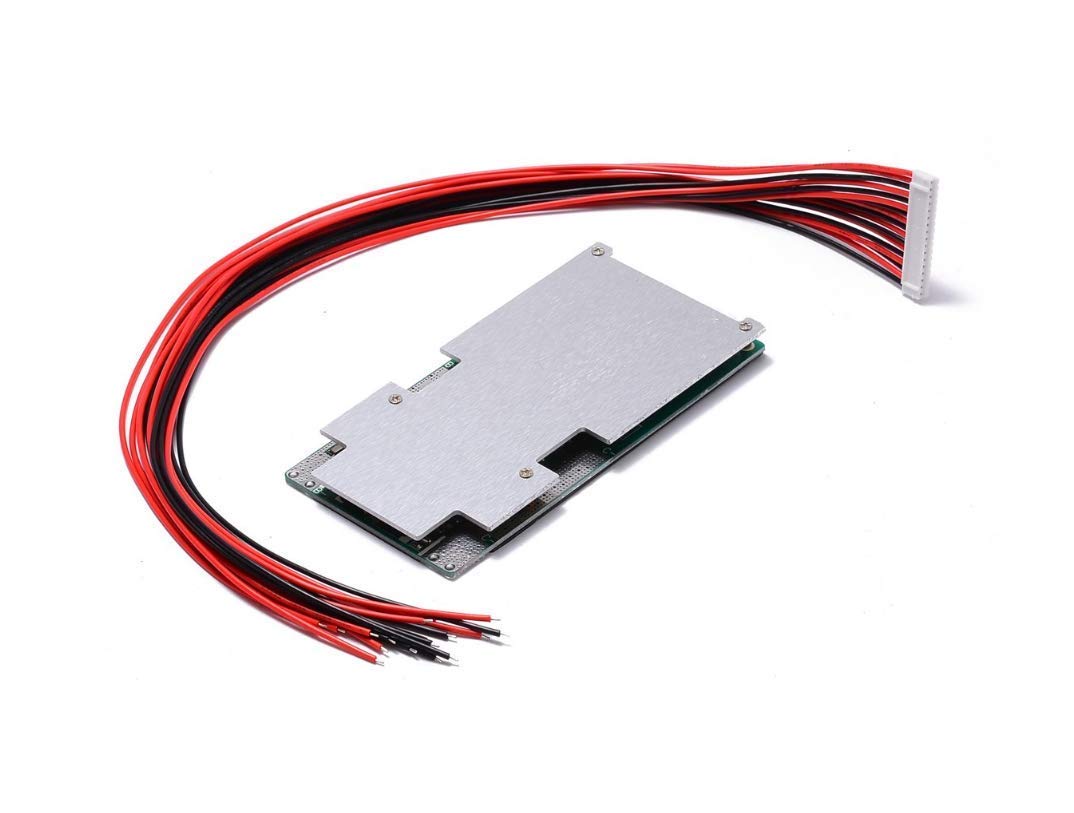

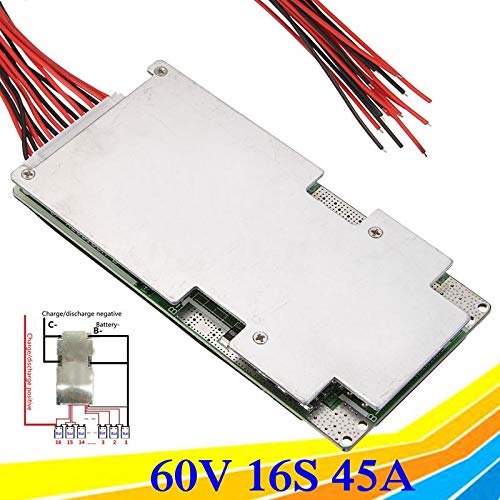

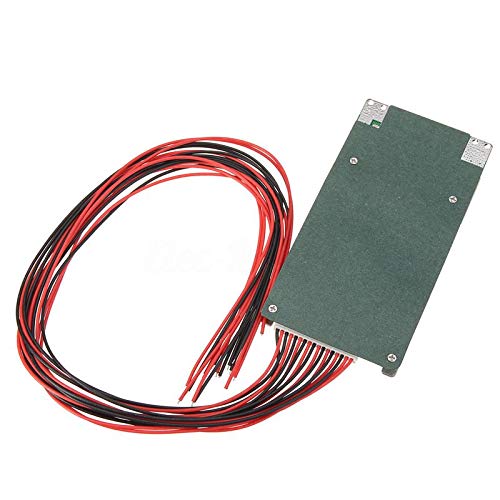

CentIoT - 16S 60V 45A BMS PCB Protection Board with Balance for Ebike Li-ion Battery

Brand: CentIoT

Features:

• 16S 60V 45A Li-ion Battery BMS PCB Protection Board Continuous discharging current: 45A Instantaneous diacharge current: 100A Charging voltage: 67.2V Charging current: 45A
• Over-charge detect: 4.28±0.05V Protect delay: 100ms Over-charge release: 4.08±0.05V Detect Voltage: 4.2±0.025V Release Voltage: 4.2±0.05V
• Balance Current: 60±5mA Over-discharge: 2.55±0.08V Over-discharge detect delay: 50mS Release voltage: 2.9±0.1V Detect voltage: 150mV Detect delay: 15mS Current detect: 130±10A
• Resistance: ≤15mΩ Working current: ≤60uA Sleep Current (when Over-discharge): ≤10uA Working temperature: -30~80℃

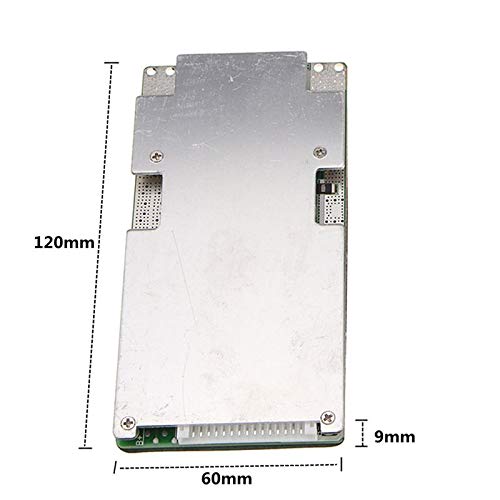

• Size: approx. 120 x 60 x 9mm

PartNumber: BM053-16S-45A-60V

Release Date: 03-11-2019

UPC: 679043314841

EAN: 0679043314841

Model: BM053-16S-45A-60V

Binding: Electronics

Item Condition: New
