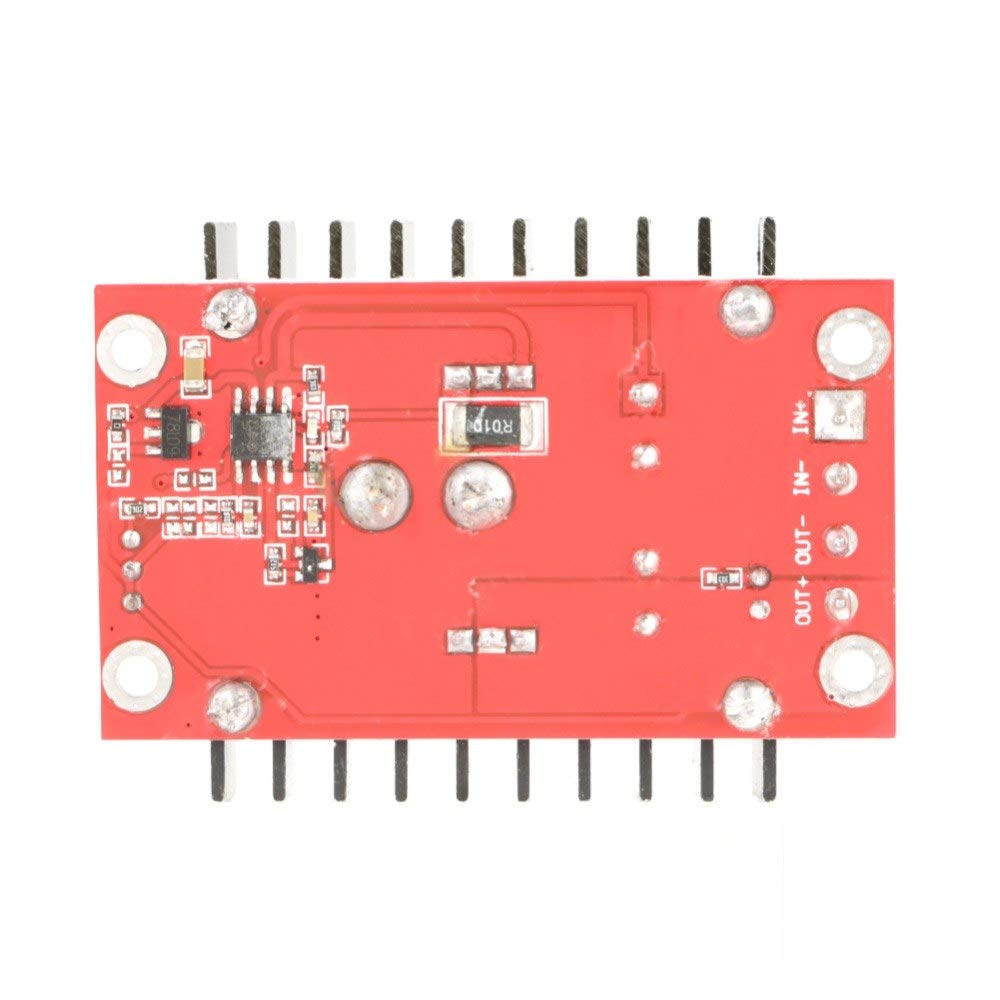

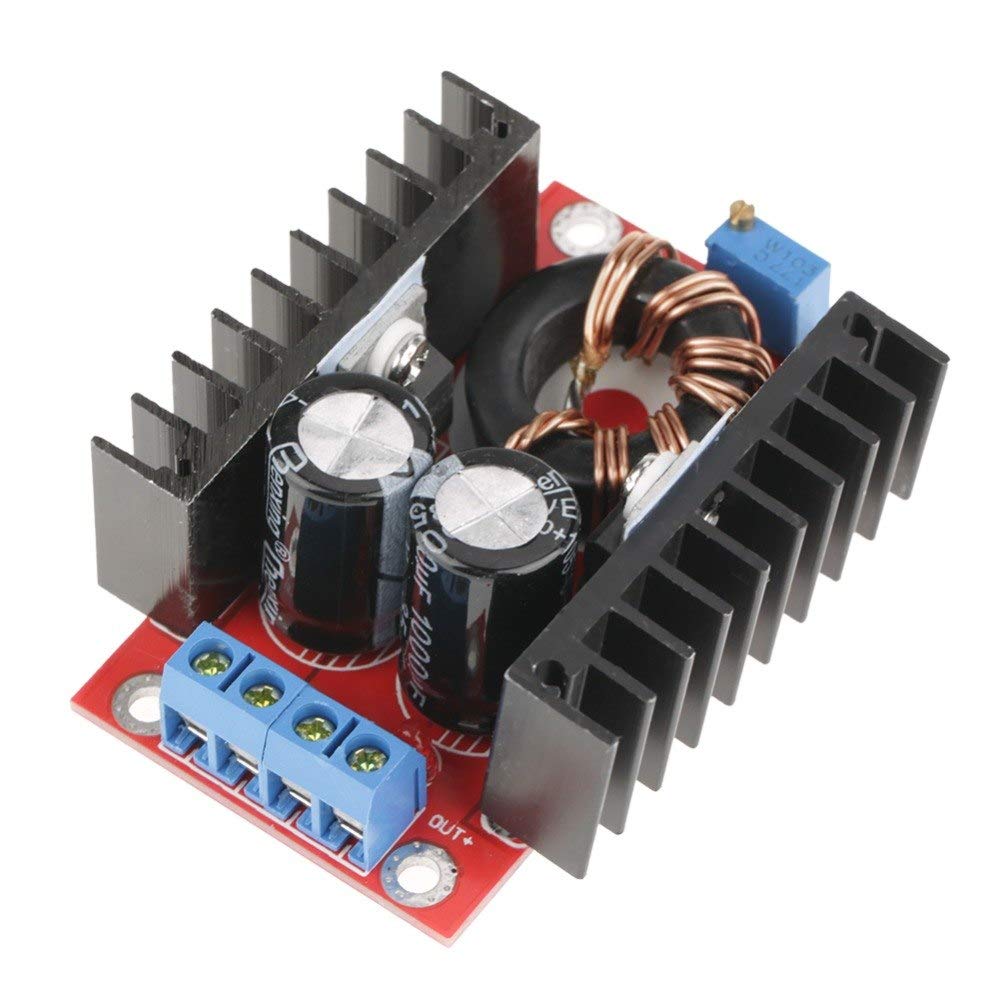

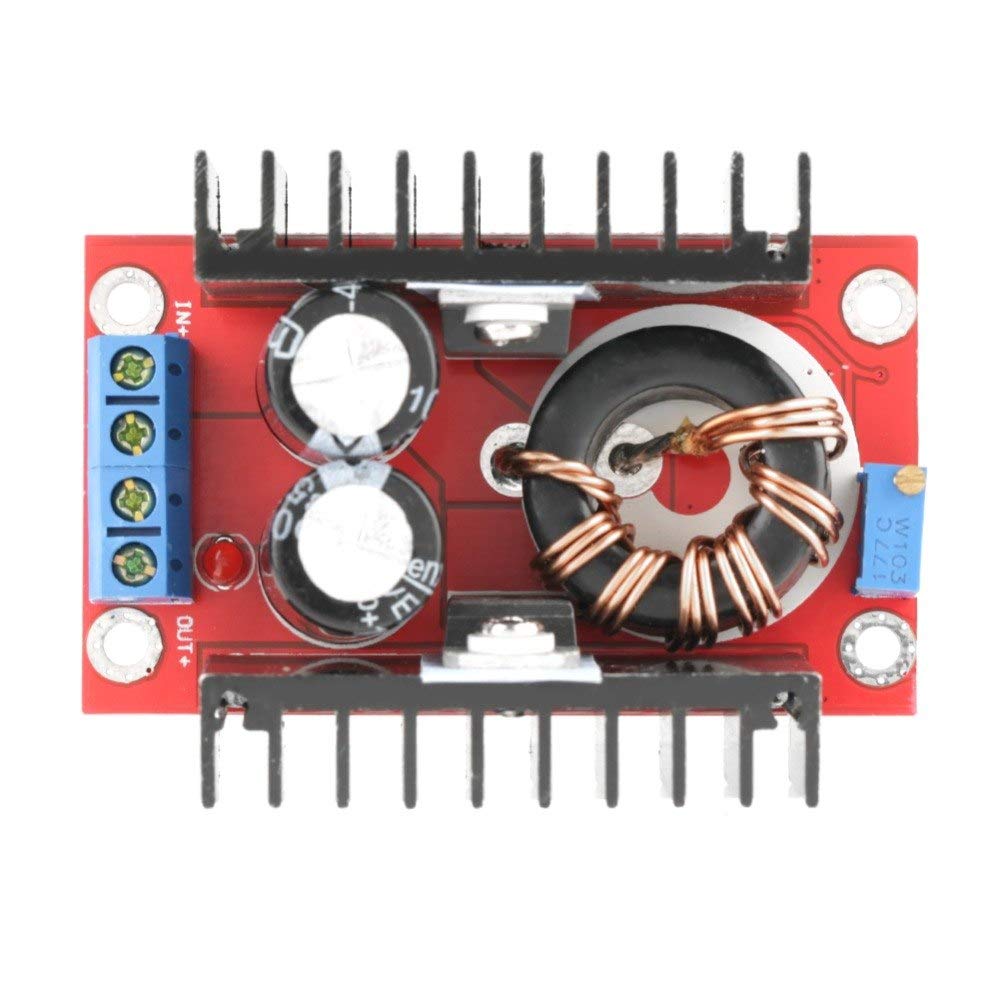

CentIoT - 150W DC-DC Step Up Converter Adjustable Voltage Power Supply Boost Module 12-32V to 12-35V

Brand: CentIoT

Features:

• Module Properties: non-isolated step-up module (BOOST)
• Input voltage :10-32V; Output voltage: 12-35V (adjustable); Output Current: 6A (MAX); Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
• Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX); Easy to drive 65W 90W dual-core notebook.; Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
• Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A);Output Ripple: 2% (MAX) 20M-bandwidth
• No-load current: 25mA typical;Voltage regulation: ± 0.5%; Dynamic response speed: 5% 200uS;

PartNumber: DC034-150W-BOOST

Release Date: 01-01-2021

Details: Applications: DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35Vadjustable freely), However, the output voltage can not be less than the input voltage. Specification: 1. Short circuit protection: None Please Install fuses and protection circuits at Input port.) 2. Input Reverse Polarity Protection: None Please use Series diode at the input port.) 3. Operating Temperature: Industrial -40°c to +85°c) ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

EAN: 4604046155616

Model: DC034-150W-BOOST

Binding: Electronics

Item Condition: New
